Description

Price

1

HEX. SCREW M10 X 70 - Call your local BRP dealership

207007060

Unavailable

2

Spacer 12 mm

269000427

Unavailable

3

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

4

Tridon Clamp

293650054

$9.49

5

Outer Bellow

291001470

Unavailable

6

Retainer Ring

293000012

Unavailable

7

Spring Stopper

706200881

$12.99

8

Spring

291001245

Unavailable

9

GUIDE_SPRING - Call your local BRP dealership

503165100

Unavailable

10

Shock

291001244

Unavailable

11

ADJUSTER RING - Call your local BRP dealership

291001088

Unavailable

12

TRIDON GEAR CLAMP - Call your local BRP dealership

293650006

Unavailable

13

Shock Bellow

291001247

Unavailable

14

Lower Shock Support

291001201

Unavailable

15

Hex. Screw M10 X 60

207006060

Unavailable

16

Flat Washer 10 mm, Stainless

234001600

$1.15

17

HEX. SCREW M6 X 120 - Call your local BRP dealership

230062060

Unavailable

18

Flat Washer M6, Stainless

234062600

$0.77

19

Hex. Elastic Stop Nut M6

232561600

$1.15

20

SPACER - Call your local BRP dealership

291000757

Unavailable

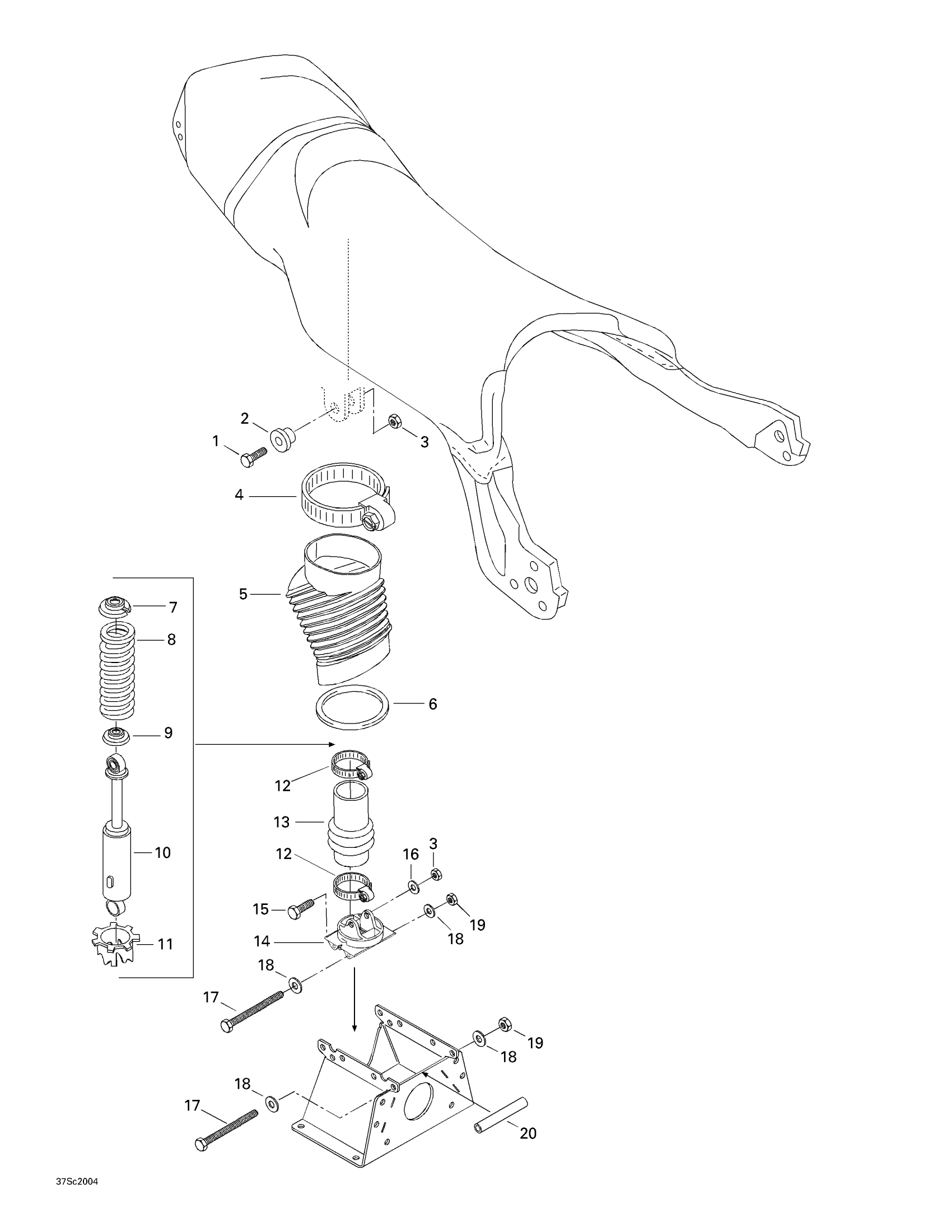

Sea-doo XP, 5651/5655, 2000 09- Seat Suspension Diagram

HEX. SCREW M10 X 70 - Call your local BRP dealership

Spacer 12 mm

HEX. ELASTIC NUT M10 - Call your local BRP dealership

Tridon Clamp

Outer Bellow

Retainer Ring

Spring Stopper

Spring

GUIDE_SPRING - Call your local BRP dealership

Shock

ADJUSTER RING - Call your local BRP dealership

TRIDON GEAR CLAMP - Call your local BRP dealership

Shock Bellow

Lower Shock Support

Hex. Screw M10 X 60

Flat Washer 10 mm, Stainless

HEX. SCREW M6 X 120 - Call your local BRP dealership

Flat Washer M6, Stainless

Hex. Elastic Stop Nut M6

SPACER - Call your local BRP dealership
