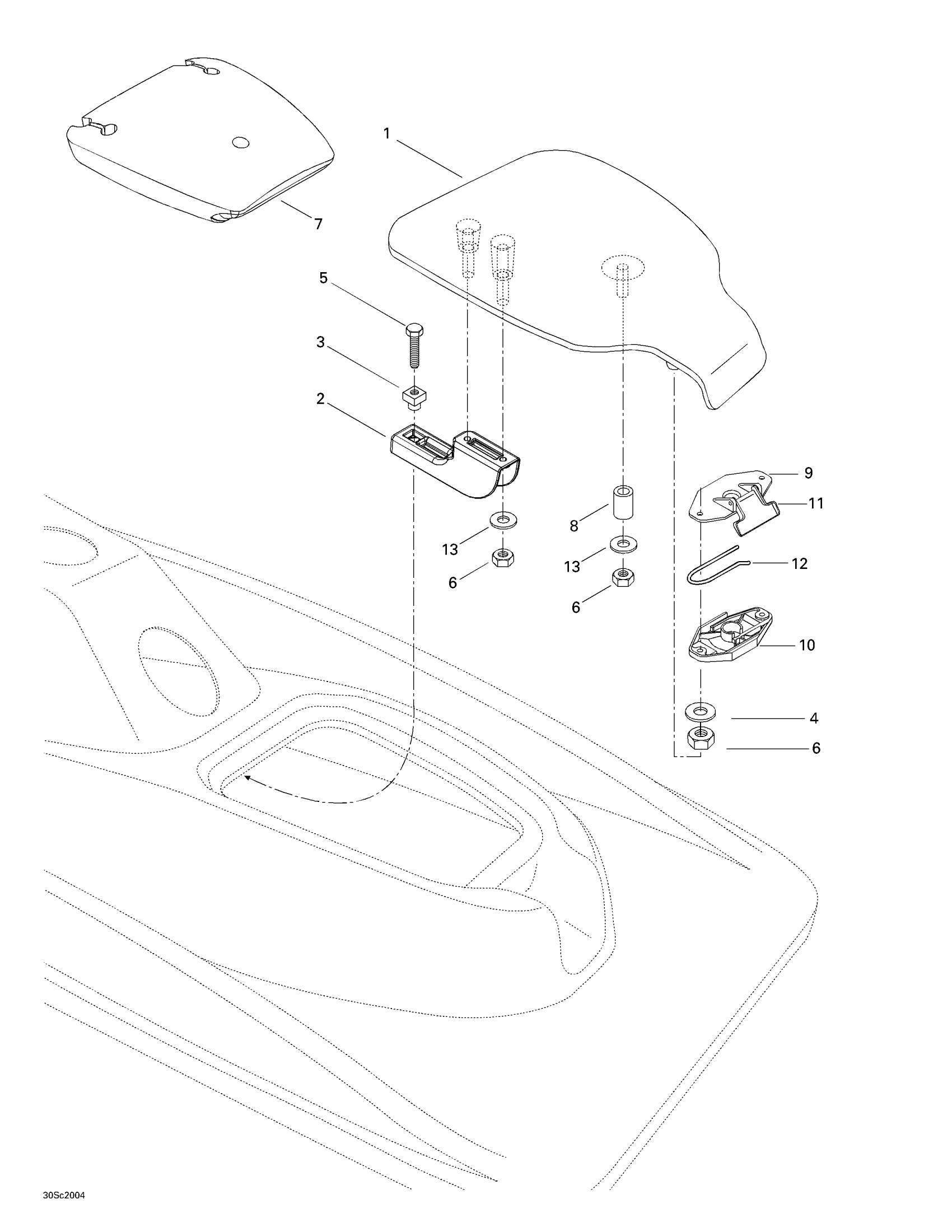

Sea-doo XP, 5651/5655, 2000 Rear Access Cover Diagram

#

Description

Price

1

Access Cover

269500803

Unavailable

2

Base Keeper | Includes 46 to 47

269500575

Unavailable

3

Square Nut M8

211100033

$17.99

4

Stainless Flat Washer M6

234061600

$0.33

5

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

6

Hex. Elastic Stop Nut M6

232561600

$1.15

7

Float

269500417

Unavailable

8

SPACER - Call your local BRP dealership

291000177

Unavailable

9

Latch Ass'y

269700109

$24.99

10

Latch Ass'y

269700109

$24.99

11

Latch Ass'y

269700109

$24.99

12

Latch Spring

269700017

$9.19

13

Flat Washer M6, Stainless

234062600

$0.77
