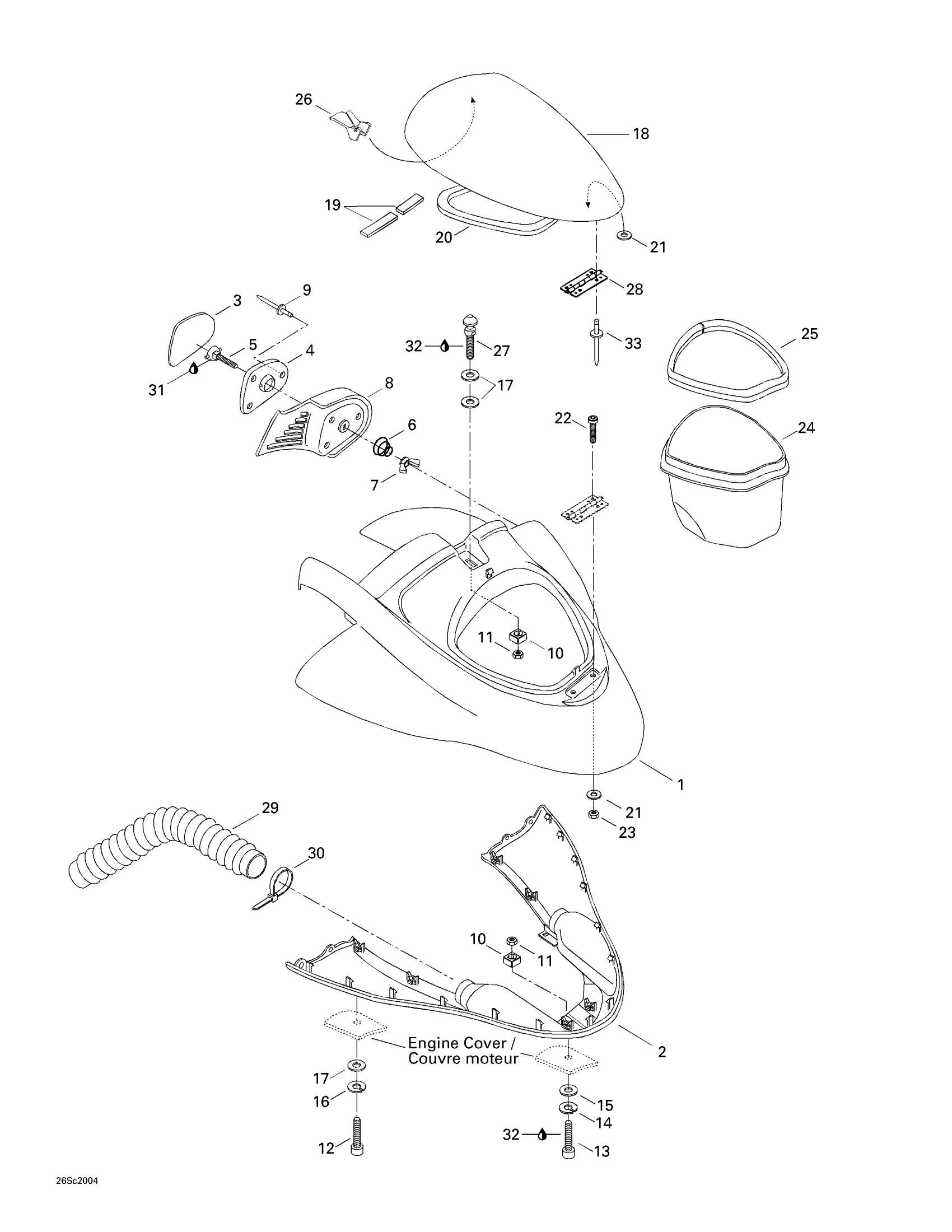

Sea-doo XP, 5651/5655, 2000 Front Storage Compartment Diagram

#

Description
Price

1

Upper Storage Cover

269500799

Unavailable

2

Lower Storage Cover

269500801

Unavailable

3

RH Mirror

269500329

Unavailable

LH Mirror

269500330

Unavailable

4

RH Support

269500332

Unavailable

LH Support

269500331

Unavailable

5

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

6

Mirror Spring

269500082

Unavailable

7

WING NUT M6 - Call your local BRP dealership

232661600

Unavailable

8

RH Mirror Housing

269500794

Unavailable

LH Mirror Housing

269500795

Unavailable

9

Pop Rivet 3/16"

293150008

$0.50

10

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

11

Hex. Nut M6

232061600

$1.15

12

Socket Head Screw M6 X 25

205062560

$1.69

13

SOCKET SCREW M8 X 20 - Call your local BRP dealership

205082060

Unavailable

14

Lock Washer 8 mm, Stainless

234181601

$0.55

15

Flat Washer 8 mm, Stainless

234082600

$2.43

16

Lock Washer Helical M6

234161601

$1.15

17

Flat Washer M6, Stainless

234062600

$0.77

18

Access Cover | Includes 18 - 19.

269500796

Unavailable

19

Neoprene Seal (1PAC=3M)

219704364

$27.49

20

Was 293200017 Neoprene Seal

219704365

$149.99

21

Flat Washer 5 mm, Stainless

234052600

$0.77

22

Socket Head Screw M5 X 16

205451660

$1.15

23

Hex. Elastic Nut M5 | X

232551600

$1.15

24

GLOVES BOX - Call your local BRP dealership

269500339

Unavailable

25

Neoprene Seal 3000Mm Long

219704371

$51.99

26

Latch

269501487

$16.99

27

ANCHORING STUD - Call your local BRP dealership

291001242

Unavailable

28

HINGE - Call your local BRP dealership

269500338

Unavailable

29

Vent Tube

269500473

Unavailable

30

Tie Rap 371 mm

293750018

$0.56

31

Synthetic Grease, 400 G

293550010

Unavailable

32

Loctite 243, 10 ml

293800060

$21.49

33

Pop Rivet 3/16"

204000081

$1.49
