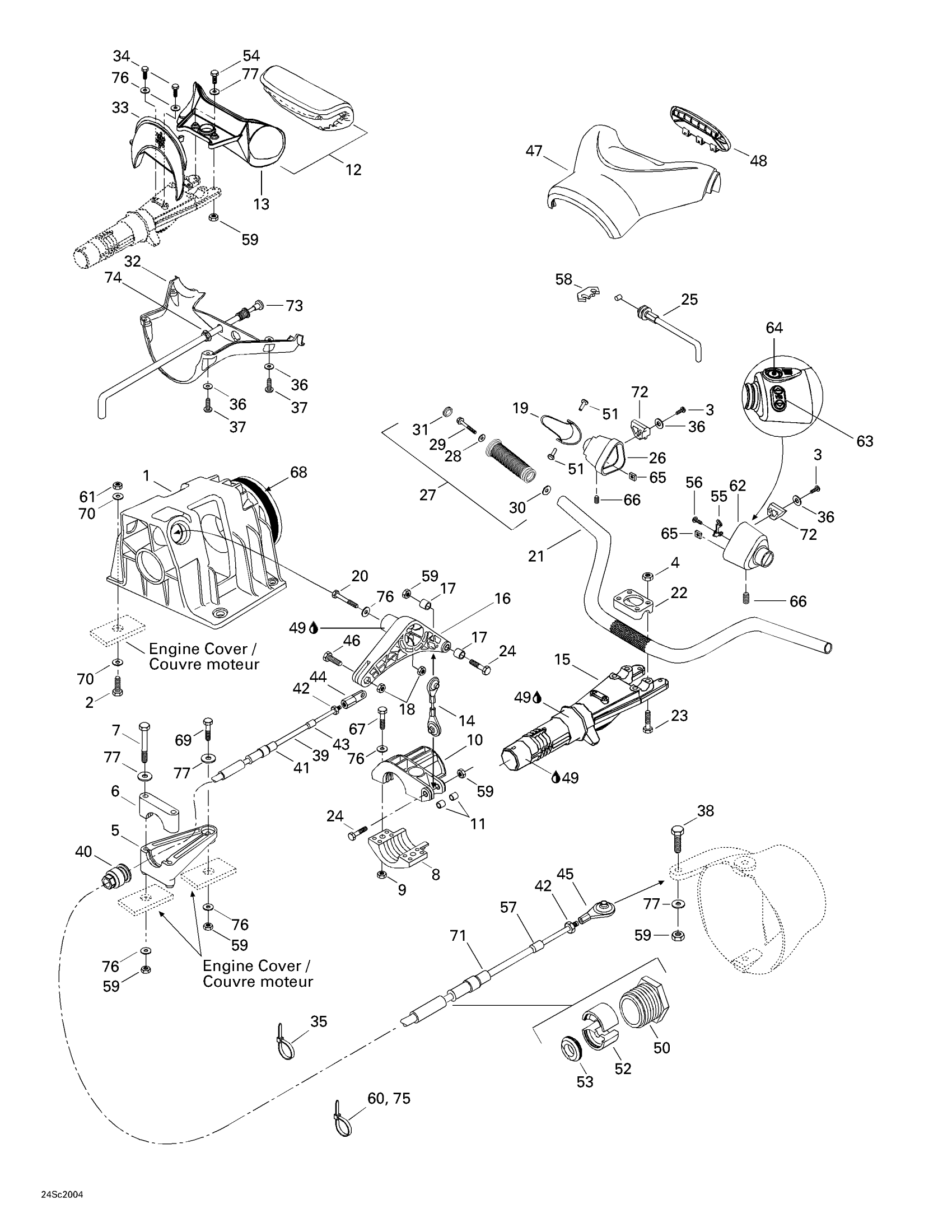

Sea-doo XP, 5651/5655, 2000 Steering System Diagram

#

Description
Price

1

STEERING SUPPORT - Call your local BRP dealership

277000617

Unavailable

2

Hex. Screw M8 X 35

207083560

$1.47

3

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

4

Hex. Elastic Nut M8

232581600

$1.48

5

Cable Support

277000737

Unavailable

6

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

7

Hex. Screw M6 X 70

207067060

$5.61

8

Arm Thrust | Includes 43 to 44

277000519

Unavailable

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

Steering Arm Stem | Includes 42 to 43

277000620

Unavailable

11

SPACER - Call your local BRP dealership

291000176

Unavailable

12

Handle Pad | Includes 9 to 10

277000867

Unavailable

13

Handle Bar Pad Support

277000687

Unavailable

14

BALL JOINT - Call your local BRP dealership

277000829

Unavailable

15

Steering Stem

277000562400

Unavailable

16

L-LEVER - Call your local BRP dealership | Includes 62 to 64

277000772

Unavailable

17

SPACER - Call your local BRP dealership

291000176

Unavailable

18

Hex. Elastic Stop Nut M6

232561600

$1.15

19

Throttle Handle

277000214

Unavailable

20

Hex. Forming Screw M6 X 20

207162060

$1.29

21

Handlebar

277000824

Unavailable

22

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

23

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

24

Hex. Screw M6 X 40

207064060

$1.69

25

Throttle Cable Ass'y

277000912

Unavailable

26

THROTTLE HOUSING ASS'Y - Call your local BRP dealership

277000872

Unavailable

27

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

28

Flat Washer M6, Stainless

234062600

$0.77

29

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Black, Cap

277000203

$9.39

32

LOWER STEERING COVER - Call your local BRP dealership

277000625

Unavailable

33

PLATE - Call your local BRP dealership

277000549

Unavailable

34

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

35

Tie Wrap 142 mm

293750002

$1.25

36

Flat Washer M5, Stainless

234051600

$0.77

37

Hex. Flange Screw K40 X 16

241141660

$1.48

38

Hex. Screw M6 X 35

207063560

$2.22

39

Cable-Steering This part replaces 277001008.

277001324

$219.99

40

Ajustment Knob

277000782

$22.99

41

End Piece

277001583

$14.49

42

Hex. Nut 1/4"-28

211100056

$0.69

43

Wiper Rod

277001582

$11.11

44

Ball Joint

277001180

$35.99

45

Ball Joint

277000775

$51.99

46

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

47

Upper Steering Cover | Includes 32 to 33

277000833

Unavailable

48

Steering Plate | STD

277000823

Unavailable

49

Synthetic Grease, 400 G

293550010

Unavailable

50

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

51

PIN - Call your local BRP dealership

277000381

Unavailable

52

Half Ring

277001527

$10.37

53

Rubber Washer

293830063

$1.90

54

Hex. Screw M6 X 30

207063060

$1.89

55

Retainer Plate

277000845

Unavailable

56

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

57

Wiper Rod

277001582

$11.11

58

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

59

Hex. Elastic Stop Nut M6

232561600

$1.15

60

Tie Wrap 368 mm

293750008

$1.04

61

Hex. Elastic Nut M8

232581600

$1.48

62

HOUSING ASSY - Call your local BRP dealership | Includes 14 to 17

277000877

Unavailable

63

VTS KNOB - Call your local BRP dealership

277000497

Unavailable

64

Switch Knob

277000306

Unavailable

65

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

66

Socket Head Screw M6 X 16

250000036

$9.00

67

Hex. Screw M6 X 25

207162560

$1.47

68

Was 293200017 Neoprene Seal

219704365

$149.99

69

Hex. Screw M6 X 35

207063560

$2.22

70

Flat Washer M8.5 x 18

293050001

$3.07

71

End Piece

277001583

$14.49

72

INSERT - Call your local BRP dealership

293450153

Unavailable

73

CHOKE CABLE - Call your local BRP dealership | Includes 7 - 8.

270000341

Unavailable

74

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

75

Tie-Rap 180 mm

414115200

$0.11

76

Flat Washer M6, Stainless

234062600

$0.77

77

Stainless Flat Washer M6

234061600

$0.33
