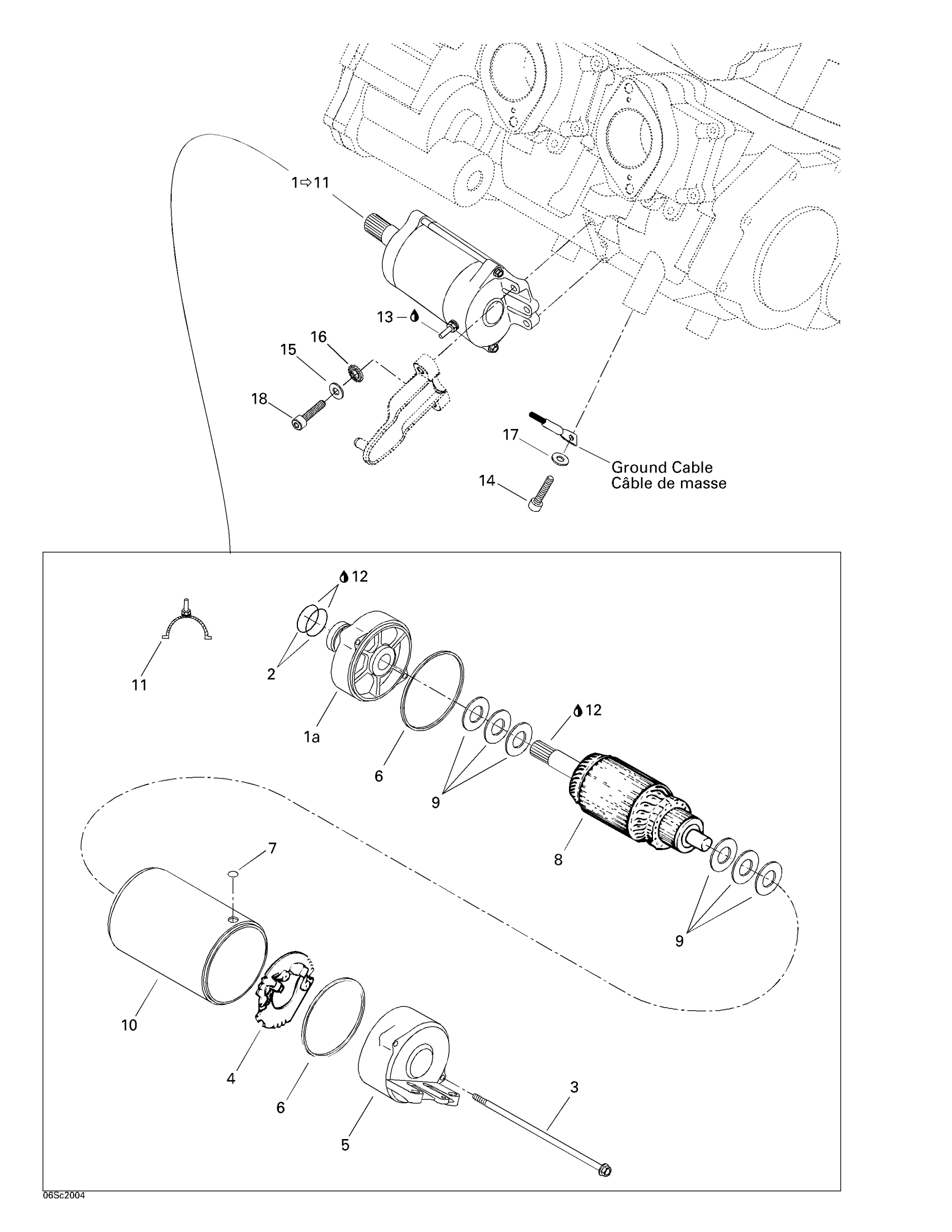

Sea-doo XP, 5651/5655, 2000 04- Starter Diagram

#

Description
Price

1

Starter Ass'y, Black

278001937

$265.99

1a

Front Housing

278001152

Unavailable

2

O-RING - Call your local BRP dealership

278001159

Unavailable

3

SCREW - Call your local BRP dealership

278001157

Unavailable

4

BRUSH HOLDER - Call your local BRP dealership

278001154

Unavailable

5

REAR HOUSING - Call your local BRP dealership

278001156

Unavailable

6

SQUARE RING - Call your local BRP dealership

278001158

Unavailable

7

O-RING - Call your local BRP dealership

278001160

Unavailable

8

Armature

278001155

Unavailable

9

Set Washer

278001161

Unavailable

10

Starter Housing

278001153

Unavailable

11

SET BRUSH - Call your local BRP dealership

278001385

Unavailable

12

Synthetic Grease, 400 G

293550010

Unavailable

13

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

14

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

15

Stainless Flat Washer M6

234061600

$0.33

16

External Serrated Lock Washer 6 mm

234461608

$1.15

17

Flat Washer 10 mm, Stainless

234001600

$1.15

18

Socket Head Screw M6 X 35

205063560

$2.22
