01- Crankshaft And Pistons

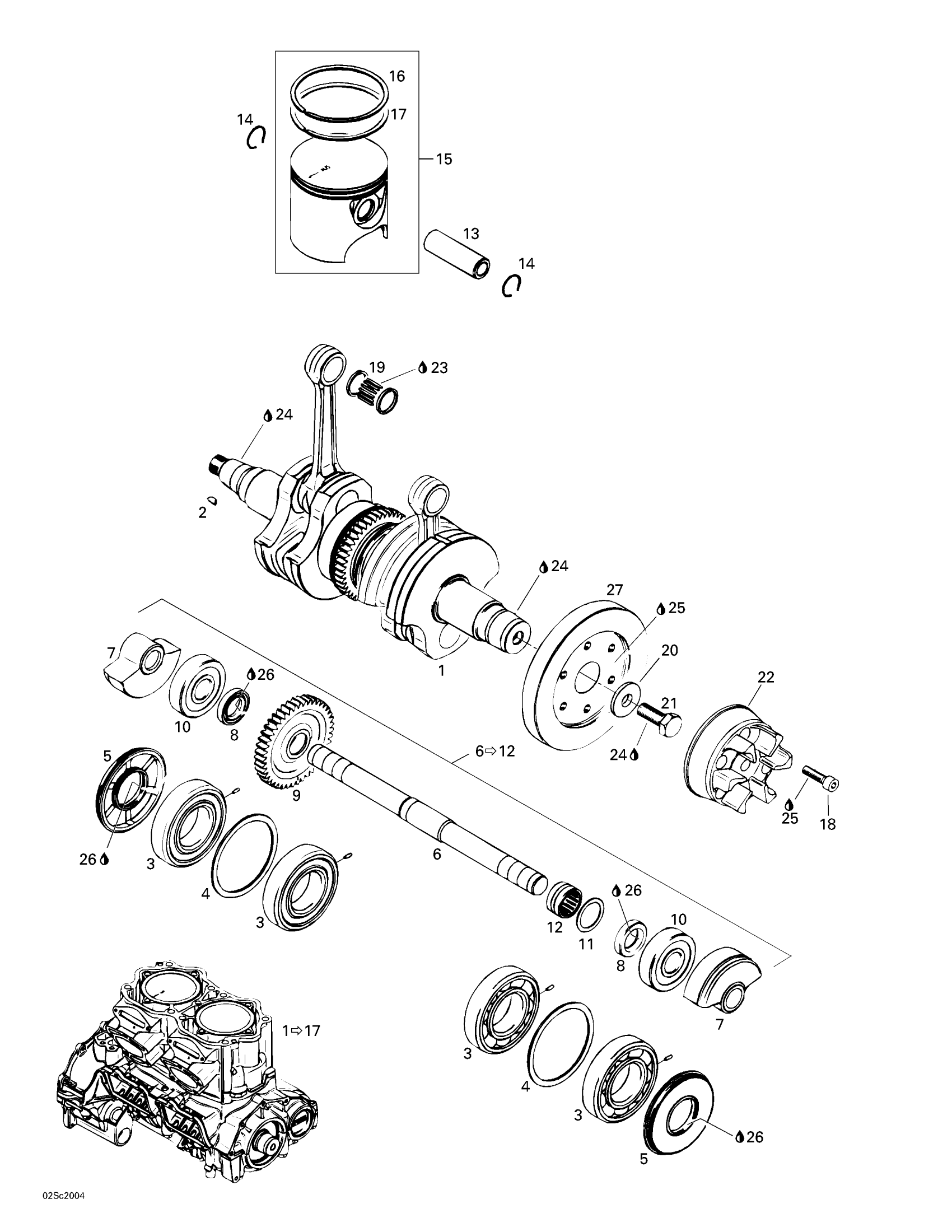

Sea-doo XP, 5651/5655, 2000 01- Crankshaft And Pistons Diagram
#
Description
Price
1
Short Block Ass'y | Includes 1 - 9.
290094702
Unavailable
1
Crankshaft Ass'y | Includes 1 - 5.
290887762
Unavailable
2
Woodruff Key
420246055
$2.43
3
Bearing_Ball - Call your local BRP dealership
420432271
Unavailable
4
Washer
420926190
$11.63
5
OIL SEAL - Call your local BRP dealership
290931731
Unavailable
6
Balance Shaft Ass'y | Includes 6 - 12.
290837387
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
BALL BEARING <<6304>> - Call your local BRP dealership
290932098
Unavailable
11
Washer
420927192
Unavailable
12
Needle Bearing
290232555
Unavailable
13
Piston Pin
290916395
Unavailable
14
Circlip
290845465
Unavailable
15
Piston with 2 Rings, 87.91 mm | Includes 15 - 17.
290888570
Unavailable
Piston Oversize, 2 Rings, 88.16 mm
290888571
Unavailable
16
Semi-Trapez Ring 88.00 mm (Silver)
290815175
Unavailable
Semi-Trapez Ring 88.25 mm (Silver)
290815176
Unavailable
17
Semi-Trapez Ring 88.00 mm (Grey)
290815192
Unavailable
Semi-Trapez Ring 88.25 mm (Grey)
290815193
Unavailable
18
Socket Screw M8 X 30
205083060
$2.96
19
Bearing_Needle This part replaces 420832552.
420832553
$30.49
20
Washer
290827782
Unavailable
21
Hex. Screw M12 x 30
290640120
Unavailable
22
Coupling Flange Ass'y
290958137
Unavailable
23
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
$12.99
24
Loctite 243, 10 ml
293800060
$21.49
25
Sealant Loctite 648
219703000
$45.99
26
Dow Corning 111, 150 g
413707000
$59.99
27
Coupling (Silver)
290958082
Unavailable
28
ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership
290888131
Unavailable
29
Cylinder Gasket Set (Not Shown)
290888136
Unavailable
