01- Crankcase, Reed Valve

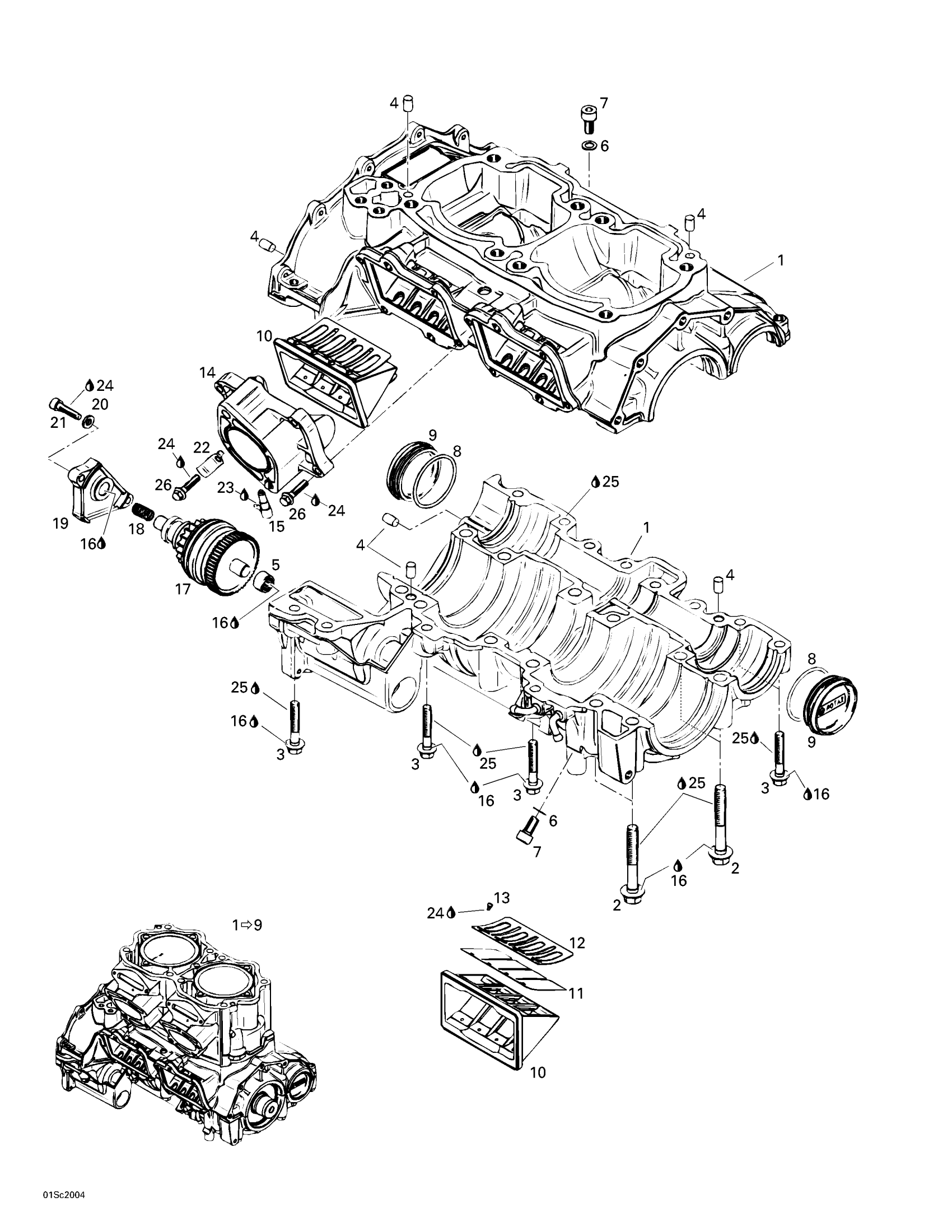

Sea-doo XP, 5651/5655, 2000 01- Crankcase, Reed Valve Diagram
#
Description
Price
1
Short Block Ass'y | Includes 1 - 9.
290094702
Unavailable
1
Crankcase Ass'y <<947>> (Silver) | Includes 1 - 7.
290887754
Unavailable
2
Flange Screw M10 x 73,5
290941333
Unavailable
3
FLANGE SCREW M8 X 45 - Call your local BRP dealership
290940638
Unavailable
4
Center Pin 8 X 12
420632010
$4.01
5
Needle Bushing
420232482
$20.99
6
Sealing Ring
420950141
$2.00
7
Socket Head Screw M8 X 16
205081660
Unavailable
8
O-Ring
290230300
Unavailable
9
Bearing Cover
290811200
Unavailable
10
REED VALVE ASS'Y - Call your local BRP dealership | Includes 23 to 27
420924602
$189.99
11
Reed Pedal
290924612
Unavailable
12
Reed Pedal Stop
290924617
Unavailable
13
Phillips Screw M3 X 5
420941215
$1.69
14
Carburator Adapter Ass'y | Includes 14 - 15.
290867833
Unavailable
15
Check Valve
420956511
$35.99
16
Dow Corning 111, 150 g
413707000
$59.99
17
Starter Drive Ass'y
420888042
$369.99
18
Spring
420938204
$7.65
19
Cover
290811210
Unavailable
20
SPRING WASHER - Call your local BRP dealership
420845020
Unavailable
21
Allen Screw M6 x 22 This part replaces 420840401.
420840403
$1.48
22
WIRE SUPPORT - Call your local BRP dealership
290953330
Unavailable
23
Sealant Loctite 648
219703000
$45.99
24
Loctite 243, 10 ml
293800060
$21.49
25
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
26
Hex. Flange Screw M6 x 25
290240033
Unavailable
27
ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership
290888131
Unavailable
