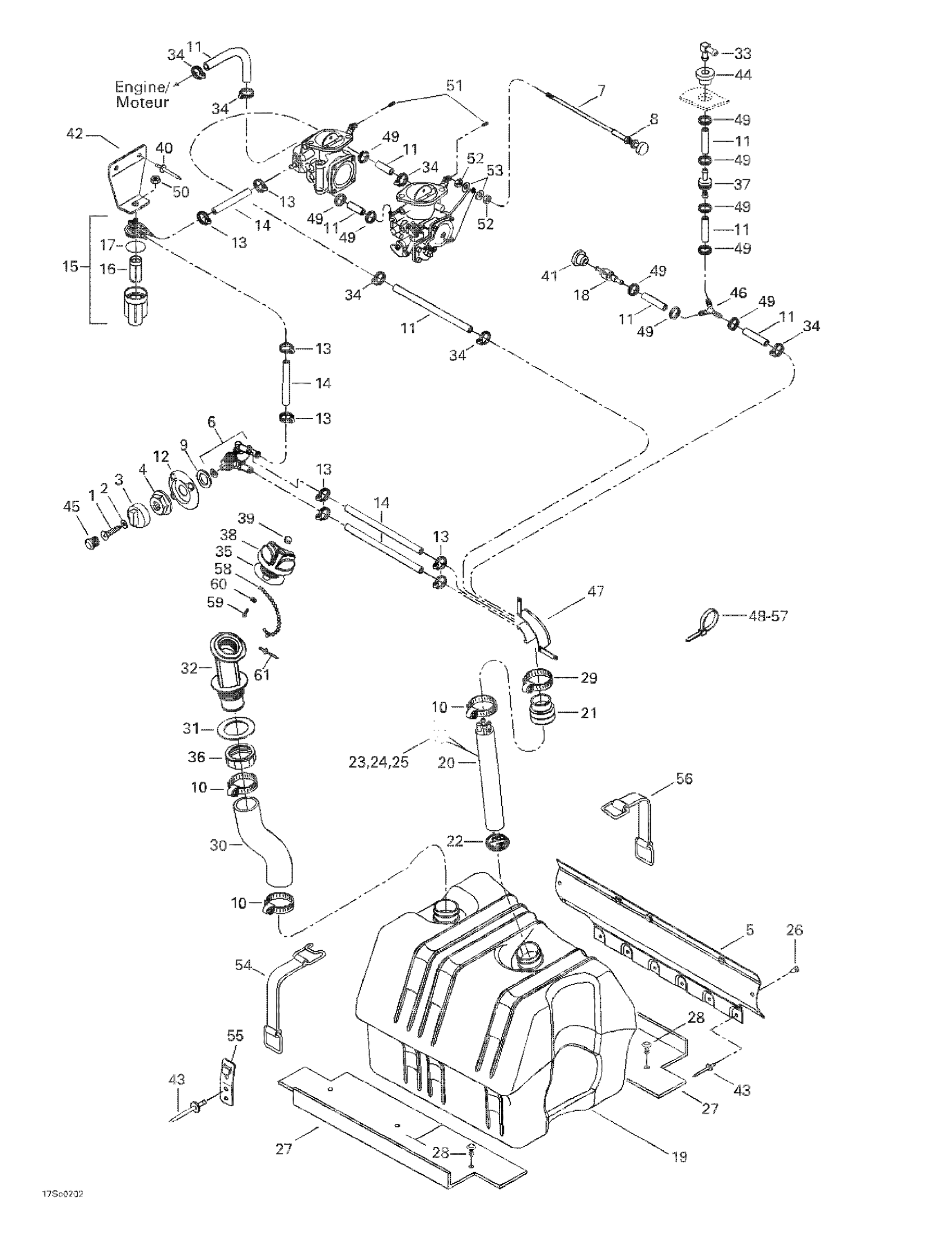

Sea-doo XP, 5577/5578, 2002 Fuel System Diagram

#

Description
Price

1

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

2

Flat Washer 4 mm

234040600

$1.49

3

FUEL VALVE KNOB - Call your local BRP dealership

275500299

Unavailable

4

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

5

Heat Shield

292000444

Unavailable

6

FUEL VALVE - Call your local BRP dealership

275500554

Unavailable

7

CHOKE CABLE - Call your local BRP dealership | Includes 7 - 8.

270000341

Unavailable

8

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

9

GASKET - Call your local BRP dealership

293250004

Unavailable

10

Tridon Clamp

293650023

$13.99

11

Was 275500549 Hose 1/4"

219704357

$199.99

12

Fuel Valve Plate

275500285

Unavailable

13

Tridon Gear Clamp

293650171

$3.19

14

HOSE 5/16 - Call your local BRP dealership

275500548

Unavailable

15

FUEL FILTER ASS'Y - Call your local BRP dealership | Includes 30 - 32.

275500358

Unavailable

16

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

17

O-Ring

275500090

$8.79

18

Check Valve

275500505

$32.99

19

Fuel Tank

275500364

Unavailable

20

BAFFLE PICK-UP - Call your local BRP dealership | Includes 20 - 25.

275500468

Unavailable

21

Tube Adapter

275500111

Unavailable

22

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

23

Wire Seal

278000218

$4.49

24

Male Connector, 2 Circuits

278000220

$15.99

25

Female Terminal

278000223

$3.29

26

Rubber Stopper

293830064

Unavailable

27

Rubber Pad

293830087

Unavailable

28

Black, Dart

293730006

$1.49

29

Tridon Clamp

293650035

$7.49

30

Filler Neck Hose

275500338

Unavailable

31

Gasket

293250029

$15.49

32

FUEL FILLER NECK - Call your local BRP dealership

275500229

Unavailable

33

Elbow Male Connector

414580600

$4.29

34

Tridon Gear Clamp

293650170

$2.00

35

Gasket

293250017

Unavailable

36

Filler Neck Nut, Fuel

211100012

$14.49

37

Check Valve

275500398

$11.49

38

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$28.99

39

Black, Snap Cap

293000034

$9.59

40

Pop Rivet 3/16"

293150043

$2.09

41

Grommet

293720029

$1.69

42

FUEL FILTER SUPPORT - Call your local BRP dealership

275500287

Unavailable

43

Avdel Rivet 3/16"

293150037

$1.49

44

Grommet

709200285

$9.89

45

Black, Cap

275500241

$3.59

46

Y-Fitting

293710059

$9.89

47

Fuel Hose Guide

275500395

Unavailable

48

Tie-Rap 180 mm

414115200

$1.49

49

Oetiker Gear Clamp

293650025

$3.19

50

Hex. Elastic Stop Nut M6

232561600

$1.49

51

Socket Set Screw M4 x 6

206540660

Unavailable

52

Hex. Nut M6

232160600

$1.49

53

Stainless Flat Washer M6

234061600

$1.49

54

FUEL TANK STRAP - Call your local BRP dealership | Includes 10 to 12

293850037

Unavailable

55

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

56

Fuel Tank Strap

293850036

$18.99

57

Tie Wrap 368 mm

293750008

$1.49

58

Fuel Cap Chain

275500507

$17.59

59

Screw K40 X 10

241140060

$1.49

60

Flat Washer M3, Stainless

234032600

$1.49

61

Pop Rivet 1/8"

390407900

$1.49
