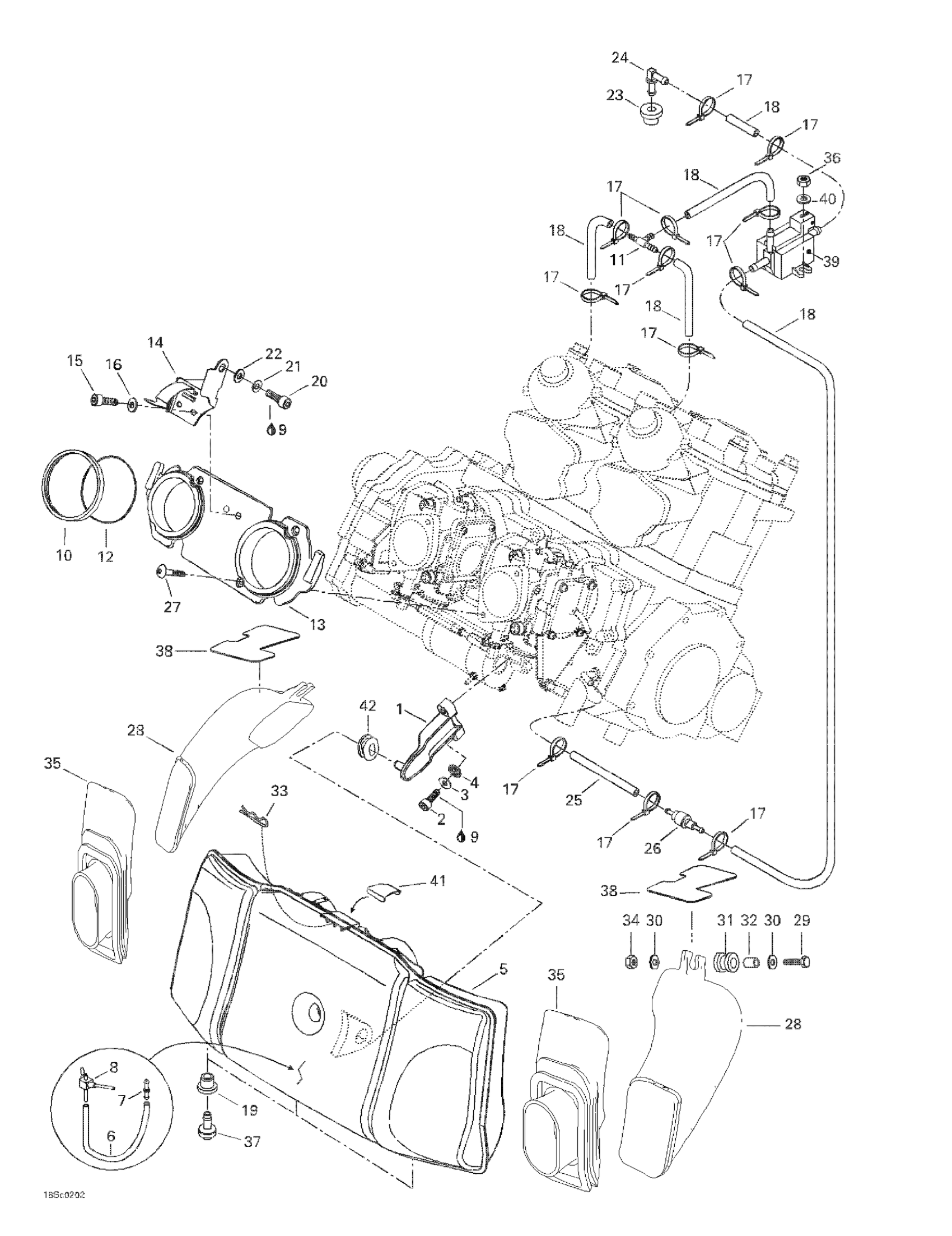

Sea-doo XP, 5577/5578, 2002 Air Intake System Diagram

#

Description
Price

1

Silencer Support

273000123

Unavailable

2

Socket Head Screw M6 X 35

205063560

$2.22

3

Stainless Flat Washer M6

234061600

$0.33

4

Lock Washer Helical M6

234161601

$1.15

5

Air Silencer

273000213

Unavailable

6

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

7

CONNECTOR - Call your local BRP dealership

293710107

$1.09

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Loctite 243, 10 ml

293800060

$21.49

10

Gasket

293250122

$67.99

11

T-Fitting

293710068

$8.29

12

O-Ring

293250065

Unavailable

13

Air Silencer Adaptor

270500383

Unavailable

14

HOLDER - Call your local BRP dealership

270000455

Unavailable

15

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.58

16

Stainless Flat Washer M6

234061600

$0.33

17

Tie Wrap 94 mm | 4X4

293750001

$1.03

18

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

19

GROMMET - Call your local BRP dealership

293720064

Unavailable

20

Socket Head Screw M8 X 16

205081660

Unavailable

21

Lock Washer 8 mm, Stainless

234181601

$0.55

22

Flat Washer 8 mm, Stainless

234082600

$2.43

23

Grommet

293720029

$1.59

24

Elbow Fitting 90 Deg

293710050

Unavailable

25

Hose 6 Mm 15000Mm Long

219704360

$132.49

26

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

27

Screw

270500357

Unavailable

28

HIGH AIR DUCT, PTO - Call your local BRP dealership

273000151

Unavailable

High Air Duct, Mag

273000150

Unavailable

29

Hex. Screw M6 X 35

207063560

$2.22

30

Flat Washer M6, Stainless

234062600

$0.77

31

UPPER INSULATOR - Call your local BRP dealership

278001260

Unavailable

32

SPACER - Call your local BRP dealership

272000074

Unavailable

33

HAIR PIN - Call your local BRP dealership

250400015

Unavailable

34

Hex. Elastic Stop Nut M6

232561600

$1.15

35

INTAKE ADAPTOR, PTO - Call your local BRP dealership

273000163

Unavailable

INTAKE ADAPTOR, MAG - Call your local BRP dealership

273000164

Unavailable

36

Hex. Elastic Nut M5 | X

232551600

$1.15

37

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

38

PROTECTOR PAD - Call your local BRP dealership

273000165

Unavailable

39

Solenoid Valve

270600005

$116.49

40

Flat Washer M5, Stainless

234051600

$0.77

41

SUPPORT PLATE - Call your local BRP dealership

273000204

Unavailable

42

Cable Grommet

293720052

Unavailable
