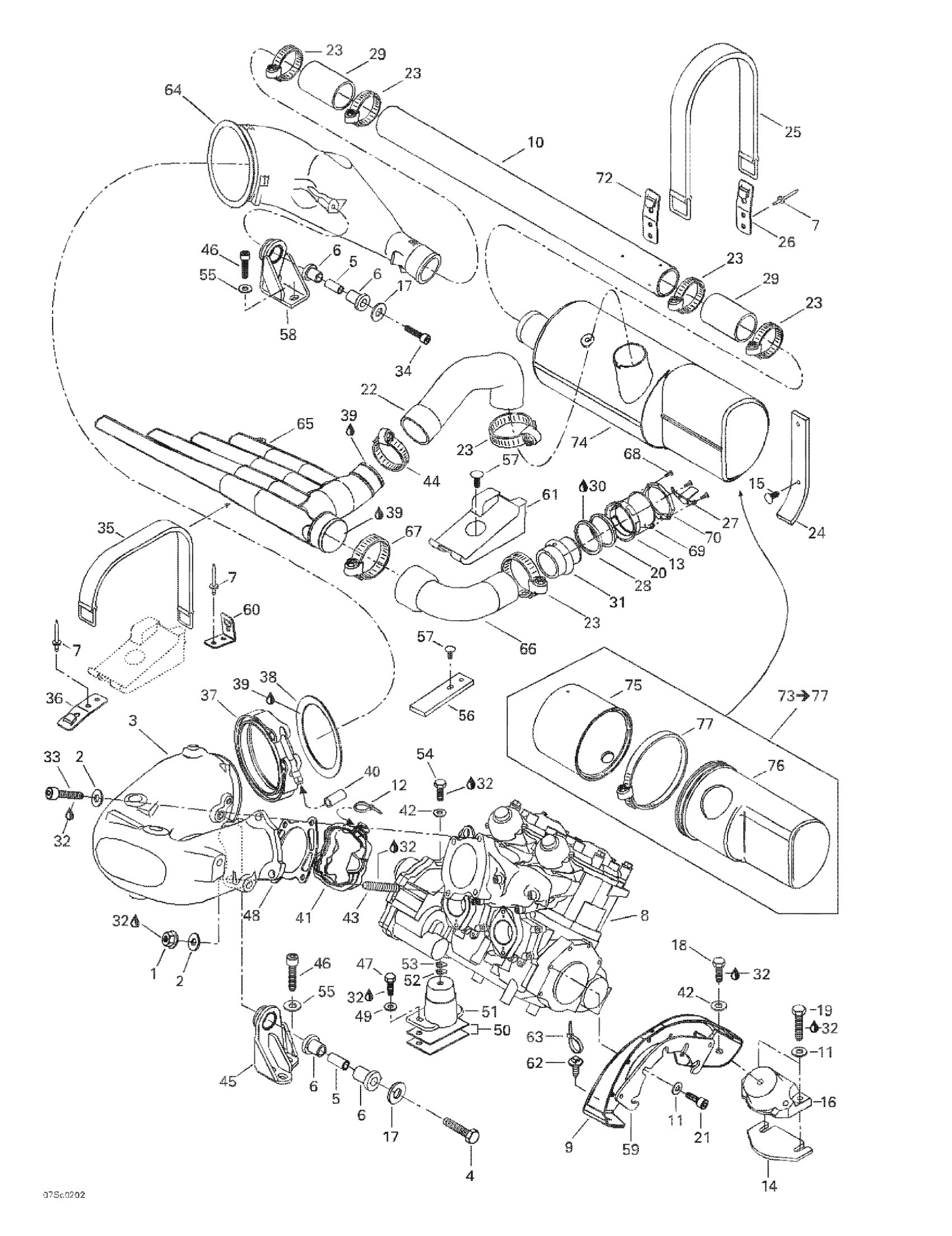

Sea-doo XP, 5577/5578, 2002 Engine Support And Muffler Diagram

#

Description
Price

1

Hex. Flange Nut M10

233101600

$5.29

2

Flat Washer

211200051

$1.68

3

Head Pipe | INCLUDES 1 TO 5

274000927

Unavailable

4

HEX. SCREW M10 X 40, SCOTCH GRIP - Call your local BRP dealership

245004060

Unavailable

5

BUSHING - Call your local BRP dealership

274000861

Unavailable

6

RUBBER BUSHING - Call your local BRP dealership

293830065

Unavailable

7

Avdel Rivet 3/16"

293150037

$0.56

8

Rotax Engine 947 (Silver)

270000524

Unavailable

9

Engine Support

270000359

Unavailable

10

Expension Tube

274000948

Unavailable

11

Stainless, Flat Washer 8 mm

234081600

$0.55

12

Tie Wrap 142 mm

293750002

$1.25

13

NUT 72 MM - Call your local BRP dealership

274000835

Unavailable

14

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

15

Black, Dart

414644300

$0.98

16

Rubber Mount, Black

270000421

Unavailable

17

Flat Washer 10 mm, Stainless

234002600

$2.22

18

Hex. Screw M8 X 16

207181660

Unavailable

19

Hex. Screw M8 X 40

207184060

$2.22

20

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

21

Socket Head Screw M8 X 25, Scotch Grip

205582560

$2.19

22

Exhaust Hose

274000783

Unavailable

23

Tridon Clamp

293650064

$8.29

24

Rubber Pad

293830089

Unavailable

25

Fuel Tank Strap | Includes 48 - 49.

293850026

Unavailable

26

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

27

BRACKET - Call your local BRP dealership

274000885

Unavailable

28

GASKET - Call your local BRP dealership

293250041

Unavailable

29

Exhaust Hose

274000896

Unavailable

30

Silicone Sealant 51388, 300 ml

296000309

$36.99

31

Exhaust Hose, Outlet

274001391

$29.49

32

Loctite 243, 10 ml

293800060

$21.49

33

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

34

Hex. Screw M10 X 40, Scotch Grip

244004060

$4.86

35

Fuel Tank Strap | Includes 48 - 49.

293850026

Unavailable

36

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

37

EXHAUST CLAMP - Call your local BRP dealership

274000510

Unavailable

38

SEALING RING - Call your local BRP dealership

274000511

Unavailable

39

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

40

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

41

PICK UP ENVELOPE - Call your local BRP dealership

274000862

Unavailable

42

Flat Washer 8 mm, Stainless

234082600

$2.43

43

STUD M10 X 5.1 X 55, SCOTCH GRIP - Call your local BRP dealership

250300008

Unavailable

44

Tridon Clamp

293650179

$11.49

45

Pipe Support

274000890

Unavailable

46

SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

244083060

Unavailable

47

Hex. Screw M8 X 40

207184060

$2.22

48

Exhaust Gasket

290931990

Unavailable

49

Stainless, Flat Washer 8 mm

234081600

$0.55

50

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

51

Rubber Mount, Black

270000430

Unavailable

52

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

53

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

54

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

55

FLAT WASHER M8.4 - Call your local BRP dealership

250200012

Unavailable

56

Resonator Pad

293830073

Unavailable

57

Black, Dart

293730006

$0.99

58

Pipe Support

274000878

Unavailable

59

Gasket

293250110

Unavailable

60

STRAP CLIP - Call your local BRP dealership

293850069

Unavailable

61

Foam Pad

292000628

Unavailable

62

Mount Dart

293730040

$1.04

63

Tie-Rap 180 mm

414115200

$0.11

64

Exhaust Cone

274000658

Unavailable

65

LH UPPER RESONATOR - Call your local BRP dealership

274000700

Unavailable

66

Adapter Hose

274000784

Unavailable

67

Tridon Clamp

204000079

$9.99

68

Hex. Flange Screw K40 X 16

241141660

$1.48

69

GASKET - Call your local BRP dealership

293250107

Unavailable

70

SUPPORT NUT - Call your local BRP dealership

274000892

Unavailable

71

BRACKET - Call your local BRP dealership

274000885

Unavailable

72

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

73

Muffler Ass'y | Includes 73 - 77.

274000810

Unavailable

74

Muffler-welded

274000546

Unavailable

75

Front Muffler Cover

274000811

Unavailable

76

Rear Muffler Cover

274000812

Unavailable

77

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable
