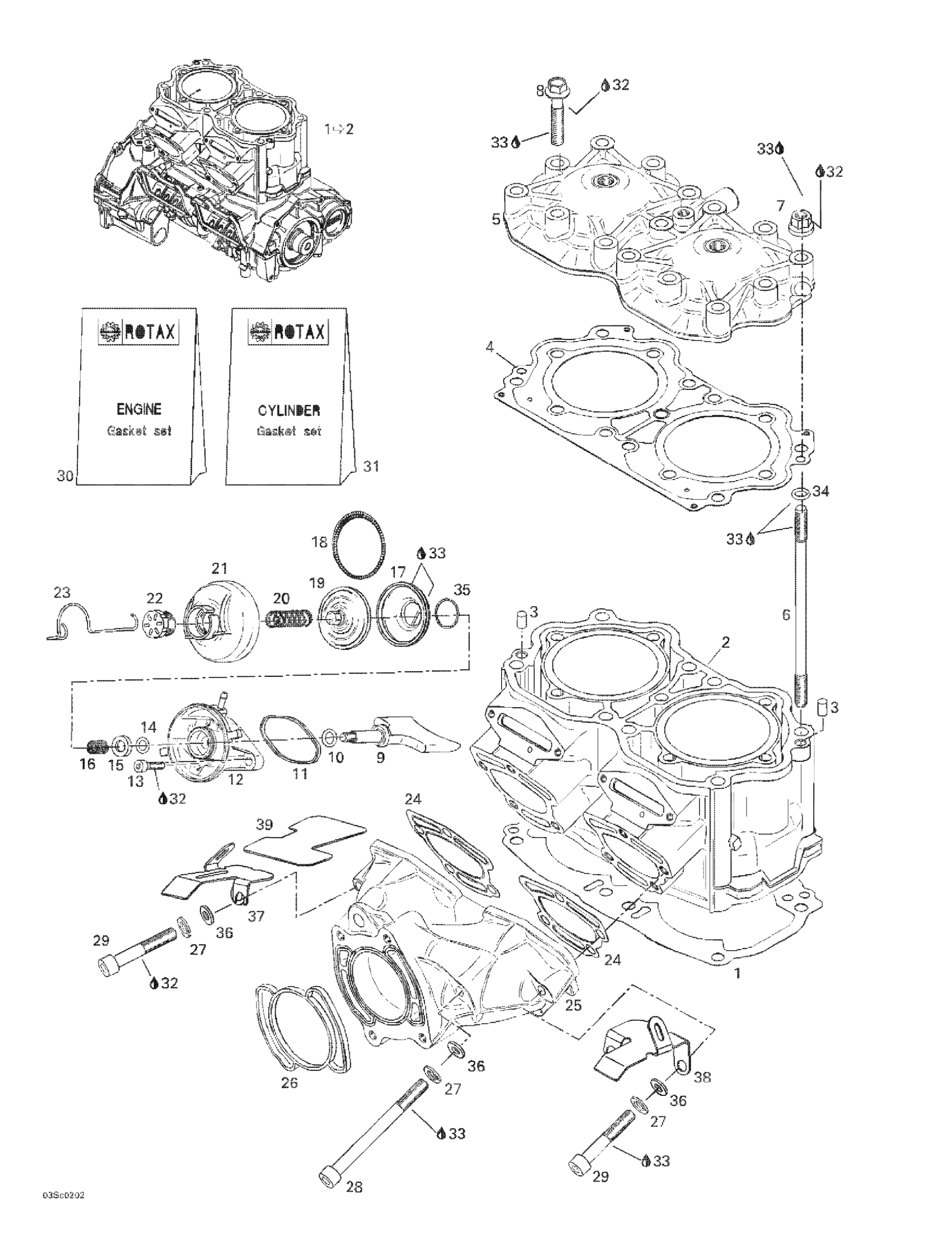

Sea-doo XP, 5577/5578, 2002 Cylinder, Exhaust Manifold Diagram

#

Description
Price

1

Short Block Ass'y | Includes 1 - 9.

290094703

Unavailable

1

REBUILD-CRANKCASE-CYLINDER PACKAGE 947 - Call your local BRP dealership

421000562

Unavailable

1

GASKET CYLINDER 0.8 MM - Call your local BRP dealership

420931907

$16.89

Gasket Cylinder 0.6 mm

290931901

Unavailable

Gasket Cylinder 0.5 mm

290931900

Unavailable

2

Cylinder with Sleeve (Silver)

290613561

Unavailable

2

REBUILD-CYLINDER-947 2000 - Call your local BRP dealership

421000561

Unavailable

3

Center Pin 8 X 12

420632010

$3.07

4

CYLINDER HEAD GASKET 947 - Call your local BRP dealership

420931702

Unavailable

5

Head Cylinder (Silver)

290923921

Unavailable

6

STUD M10 X 200 - Call your local BRP dealership

290640232

Unavailable

7

Stud Nut M10

290842863

Unavailable

8

Screw Hex. Flange M10 x 60

290841708

Unavailable

9

Exhaust Valve

290854410

Unavailable

10

O-Ring

420931765

$0.81

11

Rubber Gasket

290931670

Unavailable

12

Valve Housing

290854435

Unavailable

13

Socket Head Screw M6 X 25

205062560

$1.42

14

O-Ring

420931765

$0.81

15

Support Ring

290926220

Unavailable

16

COMPRESSION SPRING - Call your local BRP dealership

420838260

$6.62

17

Exhaust Bellows

420260723

$35.07

18

Hose Spring This part replaces 420239048.

420939281

$5.99

19

Exhaust Valve

290854446

Unavailable

20

Compression Spring

290939137

Unavailable

21

Valve Cover This part replaces 420911558.

420911559

$24.02

22

Adjuster Screw

420241221

Unavailable

23

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

24

Gasket

290931653

Unavailable

25

Exhaust Manifold

420979607

$373.82

26

Exhaust Gasket

290931990

Unavailable

27

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

28

Socket Head Screw M10 x 110

290941483

Unavailable

29

SOCKET HEAD SCREW M10 X 60 - Call your local BRP dealership

205006060

Unavailable

30

Engine Gasket Set (Not Shown)

290889150

Unavailable

31

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290889155

Unavailable

32

Loctite 243, 10 ml

293800060

$20.77

33

Dow Corning 111, 150 g

413707000

$57.82

34

O-RING - Call your local BRP dealership

290850460

Unavailable

35

Hose Spring This part replaces 420838253.

420838255

$6.11

36

Flat Washer 10 mm, Stainless

234000600

$1.07

37

DUCT SUPPORT, MAG - Call your local BRP dealership

273000170

$16.45

38

Duct Support, PTO

273000169

Unavailable

39

PROTECTOR PAD - Call your local BRP dealership

273000165

$15.66
