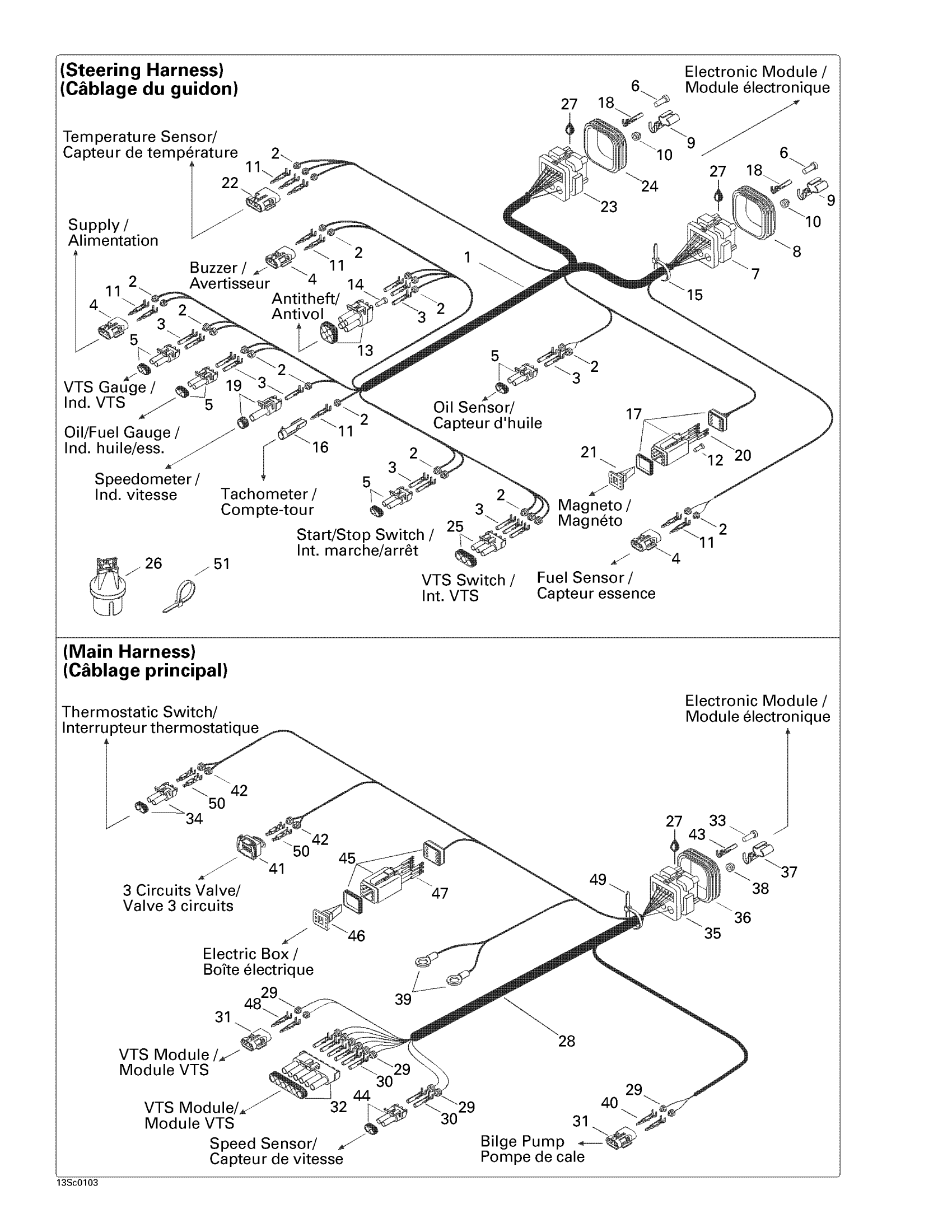

Sea-doo XP, 5530/5531, 2001 Electrical Harness Diagram

#

Description
Price

1

Steering Harness | Includes 1 - 26.

278001549

Unavailable

2

Wire Seal

278000218

$4.39

3

Female Terminal

278000223

$3.19

4

Female Housing, 2 Circuits

278000217

$9.59

5

Male Connector, 2 Circuits

278000220

$15.49

6

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

7

Male Terminal Housing, 26 Circuits

278001062

Unavailable

8

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

9

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

10

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

11

Male Terminal | XT Models

278000222

$3.19

12

Sealing Cap

293000052

$3.19

13

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

14

Wire Seal

278000216

$3.19

15

Tie Wrap 142 mm

293750002

$1.25

16

Female Housing, 1 Circuit

278000161

$9.59

17

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

18

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

19

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

20

Female Terminal

278000632

$2.09

21

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

22

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

23

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

24

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

25

Male Housing, 3 Circuits

278000273

$9.59

26

Grommet

293720040

Unavailable

27

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

28

Main Harness | Includes 28 - 50.

278001390

Unavailable

29

Wire Seal

278000218

$4.39

30

Female Terminal

278000223

$3.19

31

Female Housing, 2 Circuits

278000217

$9.59

32

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

33

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

34

Male Housing, 2 Circuits

278001005

$19.49

35

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

36

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

37

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

38

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

39

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

40

Male Terminal | XT Models

278000222

$3.19

41

Male Connector, 2 Circuits

278001003

$46.49

42

Wire Seal

278000999

$3.19

43

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

44

Male Connector, 2 Circuits

278000220

$15.49

45

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

46

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

47

Female Terminal

278000632

$2.09

48

Male Terminal

409004300

$5.61

49

Tie Wrap 142 mm

293750002

$1.25

50

Female Terminal

278000998

$4.39

51

Tie-Rap 180 mm

414115200

$0.11
