10- Electrical Box And Battery

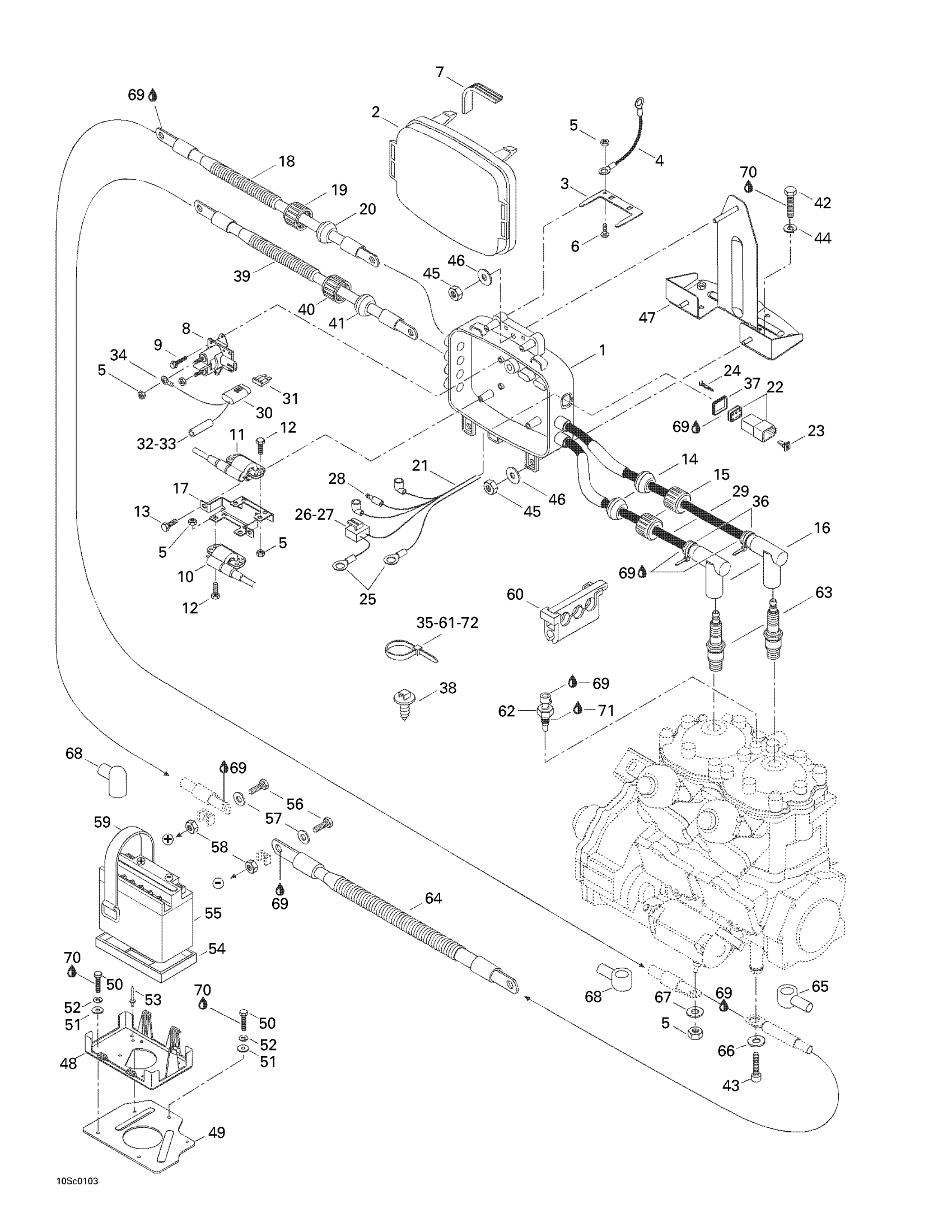

Sea-doo XP, 5530/5531, 2001 10- Electrical Box And Battery Diagram
#
1
ELECTRIC BOX BASE - Call your local BRP dealership
278001425
Unavailable
2
ELECTRIC BOX COVER - Call your local BRP dealership
278001433
Unavailable
3
Ground Plate
278000732
Unavailable
4
Ground Wire
278001501
Unavailable
5
Hex. Elastic Stop Nut M6
232561600
$1.15
6
Socket Screw Button Head M6 X 10 | DS 650
250000436
$2.11
7
GASKET - Call your local BRP dealership
278001173
Unavailable
8
Starter Relay
278003012
$42.49
9
Hex. Flange Screw M6 X 10
210261040
$1.48
10
IGNITION COIL (MAG) - Call your local BRP dealership
278001476
Unavailable
11
COIL-IGNITION - Call your local BRP dealership
278001414
Unavailable
12
Hex. Forming Screw M6 X 20
207162060
$1.29
13
Hex. Screw M6 X 16
209561640
Unavailable
14
Grommet
278000682
Unavailable
15
Electric Wire Cap
278000100
Unavailable
16
SPARK PLUG CAP - Call your local BRP dealership
278000237
$16.99
17
Ignition Coil Support
278001421
Unavailable
18
Battery Positive Cable, Red | Includes 40,41,68,72,73
278001281
Unavailable
19
Electric Wire Cap
278000100
Unavailable
20
GROMMET - Call your local BRP dealership
278000098
Unavailable
21
Electric Box Harness | Includes 24 - 31.
278001422
Unavailable
22
Male Terminal Housing, 6 Circuits
710001539
$19.99
23
Female Lock, 6 Circuits
278000735
$3.19
24
Male Terminal
278000631
$4.39
25
Ring Terminal
278000300
Unavailable
26
Male Connector, 2 Circuits
278001113
$16.86
27
Female Terminal
278001114
$3.19
28
Male Terminal
278000230
$4.39
29
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
278002198
Unavailable
30
Fuse Harness (15 Amperes) | Includes 59 - 63.
278001212
Unavailable
31
Fuse, 15 Amperes
278000343
$3.28
32
Female Terminal | DS 650 X
278001009
$3.19
33
Insulated Sheath
278001007
$3.58
34
Ring Terminal
278000300
Unavailable
35
Tie Wrap 94 mm | 4X4
293750001
$1.03
36
Tie Wrap 142 mm
293750002
$1.25
37
Gasket
293200030
Unavailable
38
Mount Dart
293730040
$1.04
39
Starter Positive Cable, Red | Includes 34,35,75,89,90
278001091
Unavailable
40
Electric Wire Cap
278000100
Unavailable
41
GROMMET - Call your local BRP dealership
278000098
Unavailable
42
Hex. Screw 10-14 X 7/8”
211000023
$3.59
43
Hex. Screw M10 X 20, Scotch Grip
207302060
$4.02
44
Helical Lock Washer M5
234151601
$1.15
45
Hex. Elastic Stop Nut M6
232561600
$1.15
46
Flat Washer M6, Stainless
234062600
$0.77
47
Box Support
278001418
Unavailable
48
BATTERY SUPPORT - Call your local BRP dealership
278001580
Unavailable
49
Support Plate
292000614
Unavailable
50
Hex. Screw 10-14 X 7/8”
211000023
$3.59
51
Flat Washer 5 mm, Stainless
234052600
$0.77
52
Helical Lock Washer M5
234151601
$1.15
53
Avdel Rivet 3/16"
293150037
$0.56
54
Battery Lower Pad
278001234
Unavailable
55
Battery 19A | Includes 5 to 8
278001756
$153.36
56
Hex. Screw M6 X 16
207161644
$0.74
57
FLAT WASHER 6 MM - Call your local BRP dealership
211200018
Unavailable
58
Hex. Nut M6
232061414
$0.53
59
Retainer Strap
293850097
$11.64
60
3 WIRE SUPPORT - Call your local BRP dealership
278000245
Unavailable
61
Tie Wrap 368 mm
293750008
$1.04
62
Temperature Sensor
278002895
$39.99
63
NGK Spark Plug BR8ES This part replaces 278000609.
219703119
$4.23
64
Battery Ground Cable, Black | Includes 65,72,73
278001490
Unavailable
65
Wire Cap (Black)
278001491
Unavailable
66
Flat Washer 10 mm, Stainless
234001600
$1.15
67
Stainless Flat Washer M6
234061600
$0.33
68
PROTECTION CAP - Call your local BRP dealership
278000020
Unavailable
69
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
70
Loctite 271, 10 ml
293800005
$26.99
71
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
72
Tie-Rap 180 mm
414115200
$0.11
