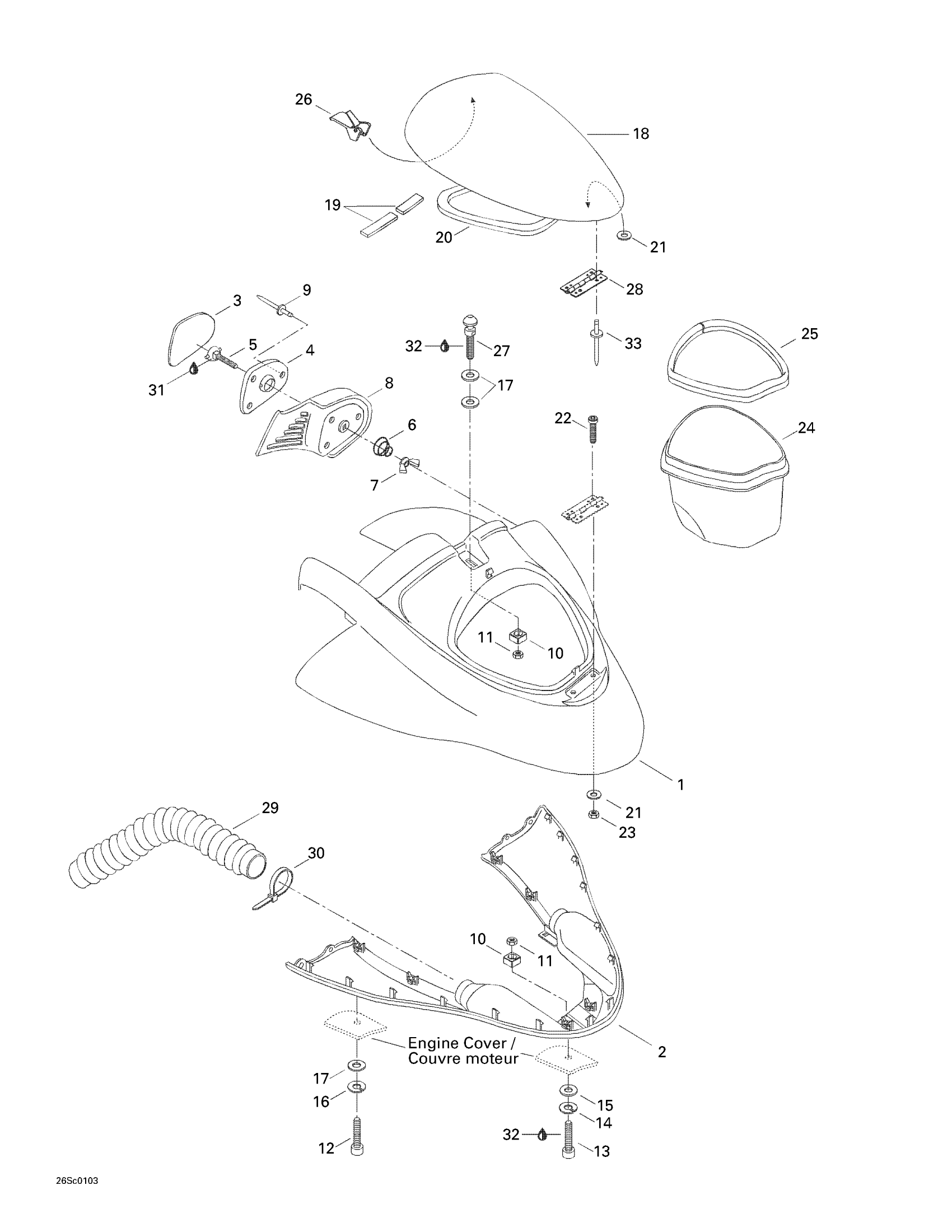

Sea-doo XP, 5530/5531, 2001 09- Front Storage Compartment Diagram
#
Description
Price
1
Upper Storage Cover
269500799
Unavailable
2
Lower Storage Cover
269500801
Unavailable
3
RH Mirror
269500329
Unavailable
LH Mirror
269500330
Unavailable
4
RH Support
269500332
Unavailable
LH Support
269500331
Unavailable
5
MIRROR BALL JOINT - Call your local BRP dealership
269500079
Unavailable
6
Mirror Spring
269500082
Unavailable
7
WING NUT M6 - Call your local BRP dealership
232661600
Unavailable
8
RH Mirror Housing
269500794
Unavailable
LH Mirror Housing
269500795
Unavailable
9
Pop Rivet 3/16"
293150008
$0.50
10
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
11
Hex. Nut M6
232061600
$1.15
12
Socket Head Screw M6 X 25
205062560
$1.69
13
SOCKET SCREW M8 X 20 - Call your local BRP dealership
205082060
Unavailable
14
Lock Washer 8 mm, Stainless
234181601
$0.55
15
Flat Washer 8 mm, Stainless
234082600
$2.43
16
Lock Washer Helical M6
234161601
$1.15
17
Flat Washer M6, Stainless
234062600
$0.77
18
Access Cover | Includes 18 - 19.
269500796
Unavailable
19
Neoprene Seal (1PAC=3M)
219704364
$27.49
20
Was 293200017 Neoprene Seal
219704365
$149.99
21
Flat Washer 5 mm, Stainless
234052600
$0.77
22
Socket Head Screw M5 X 16
205451660
$1.15
23
Hex. Elastic Nut M5 | X
232551600
$1.15
24
GLOVES BOX - Call your local BRP dealership
269500339
Unavailable
25
Neoprene Seal 3000Mm Long
219704371
$51.99
26
Latch
269501487
$16.99
27
ANCHORING STUD - Call your local BRP dealership
291001242
Unavailable
28
HINGE - Call your local BRP dealership
269500338
Unavailable
29
Vent Tube
269500473
Unavailable
30
Tie Rap 371 mm
293750018
$0.56
31
Synthetic Grease, 400 G
293550010
Unavailable
32
Loctite 243, 10 ml
293800060
$21.49
33
Pop Rivet 3/16"
204000081
$1.49
