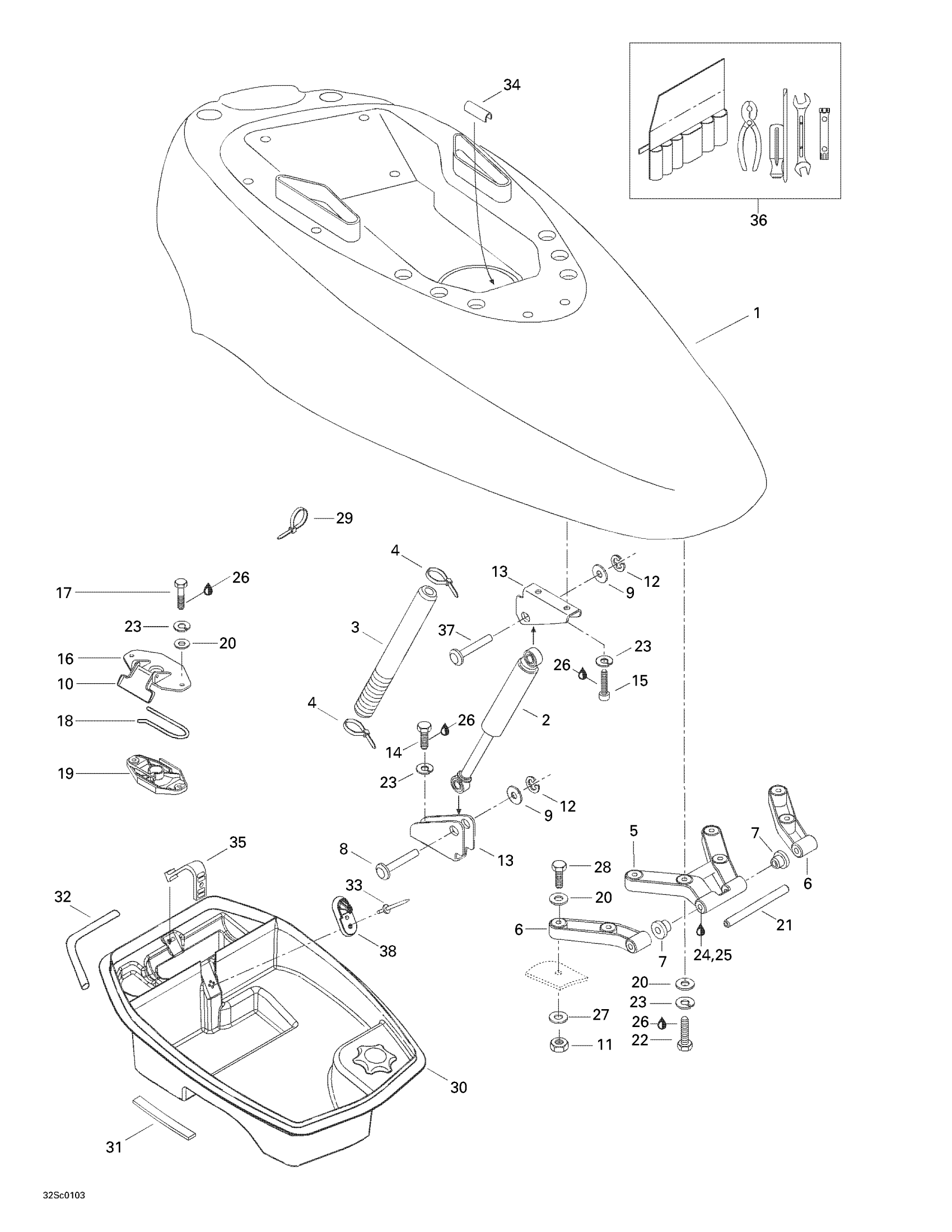

Sea-doo XP, 5530/5531, 2001 Engine Cover Diagram

#

Description
Price

1

Engine Cover

269700065

Unavailable

2

GAS SHOCK ASSY - Call your local BRP dealership | Includes 29 to 31

269500363

Unavailable

3

Bellow

291001022

Unavailable

4

Tie Wrap 94 mm | 4X4

293750001

$1.03

5

Cover Hinge

269700043

Unavailable

6

RH HINGE - Call your local BRP dealership

269700022111

Unavailable

LH HINGE - Call your local BRP dealership

269700023111

Unavailable

7

CUSHION - Call your local BRP dealership

293350016

Unavailable

8

SHORT PIN - Call your local BRP dealership

211400006

Unavailable

9

Stainless, Flat Washer 8 mm

234081600

$0.55

10

Latch Ass'y

269700109

$24.99

11

Hex. Elastic Stop Nut M6

232561600

$1.15

12

CIRCLIP - Call your local BRP dealership

293370008

Unavailable

13

Shock Support

291001013

Unavailable

14

Hex. Screw M6 X 25

207162560

$1.47

15

Socket Screw M6 X 16

205061660

$1.48

16

Latch Ass'y

269700109

$24.99

17

Hex. Screw M6 X 25

207162560

$1.47

18

Latch Spring

269700017

$9.19

19

Latch Ass'y

269700109

$24.99

20

Stainless Flat Washer M6

234061600

$0.33

21

AXLE - Call your local BRP dealership

269700024

Unavailable

22

Hex. Screw M6 X 25

207162560

$1.47

23

Lock Washer Helical M6

234161601

$1.15

24

Sealant Loctite 648

219703000

$45.99

25

Was 293800041 Loctite Primer 7649

219704458

$39.99

26

Loctite 243, 10 ml

293800060

$21.49

27

Flat Washer M6, Stainless

234062600

$0.77

28

Hex. Screw M6 X 35

207063560

$2.22

29

Tie-Rap 180 mm

414115200

$0.11

30

Front Tray | Includes 30 - 32.

269500847

Unavailable

31

Gasket, Neoprene 2000Mm Long

219704476

$15.36

32

Was 293200017 Neoprene Seal

219704365

$149.99

33

Avdel Rivet

293150027

$2.49

34

Was 271000110 Protection Trim

219704353

$15.99

35

Strap

269502417

$17.69

36

Owners Tool Kit

295500783

Unavailable

37

PIN - Call your local BRP dealership

211400019

Unavailable

38

Hook

269500521

$9.09
