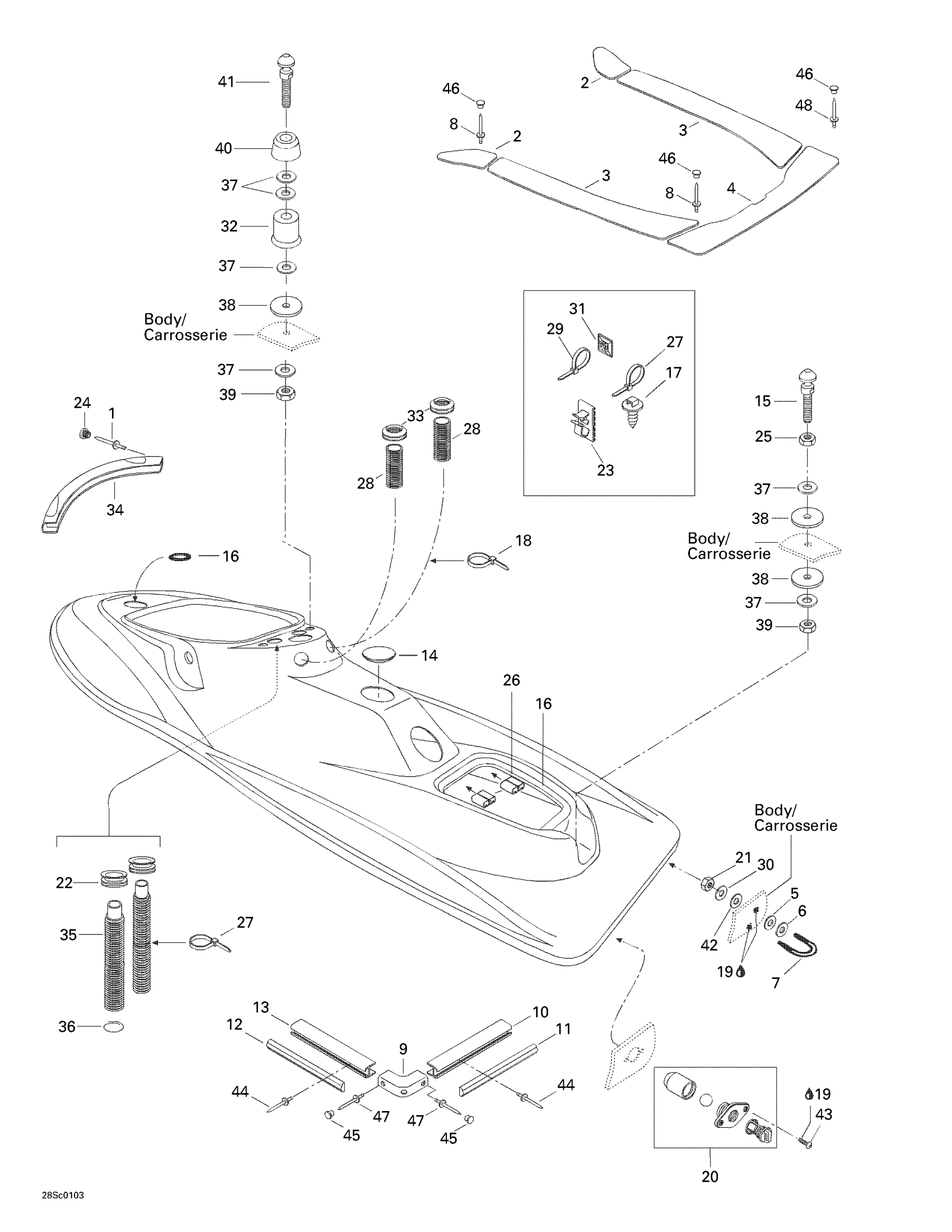

Sea-doo XP, 5530/5531, 2001 09- Body Diagram

#

Description
Price

1

Pop Rivet 3/16"

293150014

$1.09

2

RH Front Carpet

291001005

Unavailable

LH Front Carpet

291001006

Unavailable

3

RH Center Carpet

291001254

Unavailable

LH Center Carpet

291001255

Unavailable

4

Rear Carpet

291001009

Unavailable

5

Flat Washer 8 mm, Nylon

234081100

$1.39

6

Flat Washer M8.5 x 18

293050001

$3.07

7

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

8

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

9

Bumper Corner

291002244

$48.99

10

REAR BUMPER, BLACK - Call your local BRP dealership

291002242

Unavailable

11

SIDE BUMPER TRIM - Call your local BRP dealership

291001840

Unavailable

12

SIDE BUMPER TRIM - Call your local BRP dealership

291001840

Unavailable

13

Black, Side Bumper

204050270

$179.99

14

Bottom Pan Cap

570277400

Unavailable

15

LATCH STUD - Call your local BRP dealership

291000690

Unavailable

16

Was 293200017 Neoprene Seal

219704365

$149.99

17

Mount Dart

293730040

$1.04

18

Tie Rap 371 mm

293750018

$0.56

19

Silicone Sealant 51388, 300 ml

296000309

$36.99

20

DRAIN ASSY - Call your local BRP dealership

292000685

Unavailable

21

Hex. Elastic Nut M8

232581600

$1.48

22

VENT ADAPTOR - Call your local BRP dealership

291001100

Unavailable

23

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

24

Bumper Plug, Black

291000339

$2.99

25

Hex. Jam Nut M10

232100600

$2.22

26

Spacer

291000723

Unavailable

27

Tie Wrap 368 mm

293750008

$1.04

28

Vent Hose

291001490

Unavailable

29

Tie-Rap 180 mm

414115200

$0.11

30

Flat Washer 8 mm, Stainless

250200175

$3.06

31

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

32

Spacer Ring

291001089

Unavailable

33

Grommet

293720036

Unavailable

34

Nose Bumper (Yellow)

291001449

Unavailable

35

Hose

291001491

Unavailable

36

CIRCLIP 120 MM - Call your local BRP dealership

293370011

Unavailable

37

Flat Washer 10 mm, Stainless

234002600

$2.22

38

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

39

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

40

Rubber Pad

293830025

Unavailable

41

Latch Stud

291001021

Unavailable

42

Rubber Washer

293830037

$2.68

43

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

44

Pop Rivet 3/16"

293150005

$0.52

45

Bumper Plug, Black

291000339

$2.99

46

Black, Snap Cap

293000014

$1.09

47

Pop Rivet 3/16"

293150013

$1.37

48

Rivet 1/8"

293150016

$0.40
