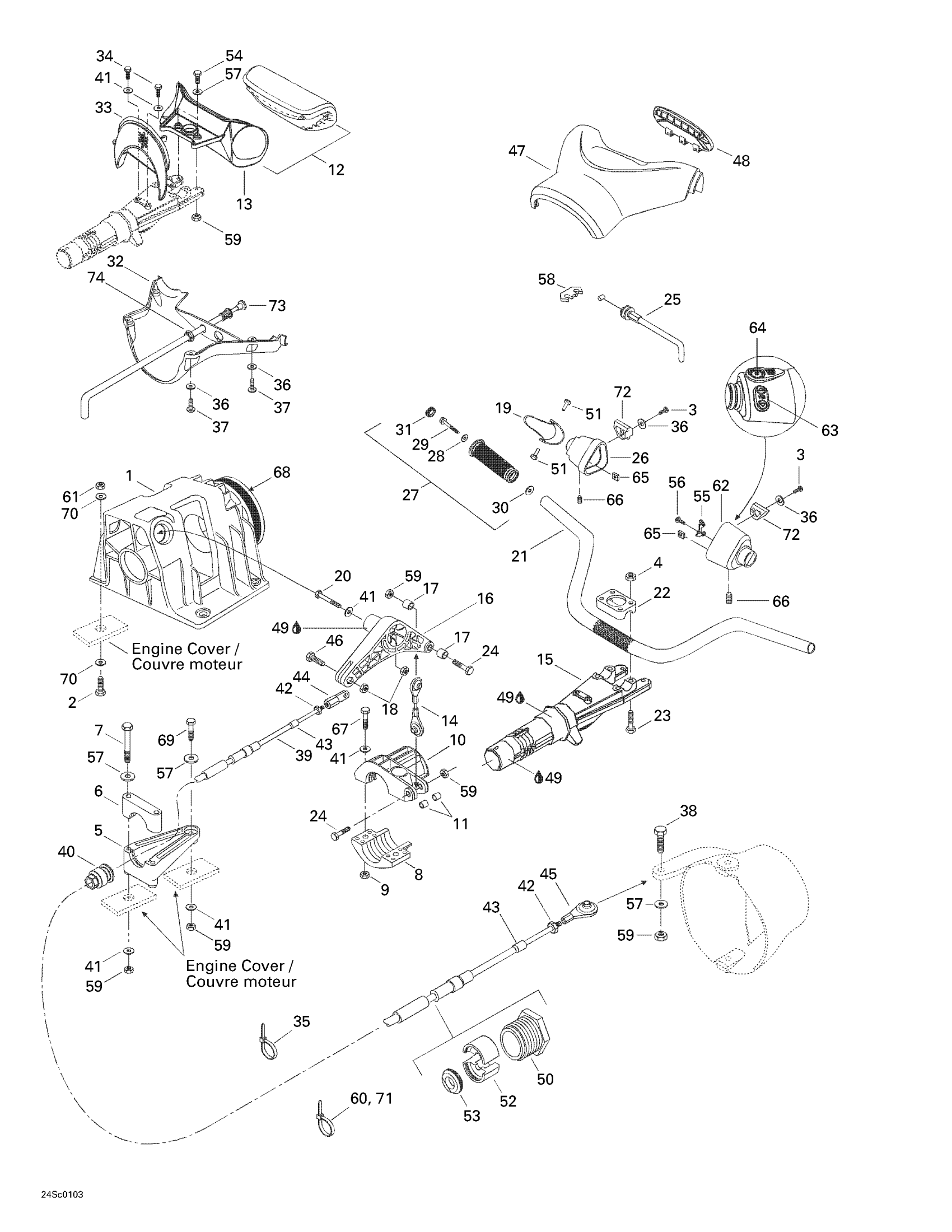

Sea-doo XP, 5530/5531, 2001 07- Steering System Diagram
#
1
STEERING SUPPORT - Call your local BRP dealership
277000617
Unavailable
2
Hex. Screw M8 X 35
207083560
$1.47
3
PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership
209630960
Unavailable
4
Hex. Elastic Nut M8
232581600
$1.48
5
Cable Support
277001026
Unavailable
6
SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.
277001528
Unavailable
7
Hex. Screw M6 X 70
207067060
$5.61
8
Arm Thrust | Includes 43 to 44
277000519
Unavailable
9
Hex. Elastic Stop Nut M6
232561600
$1.15
10
Steering Arm Stem | Includes 42 to 43
277000620
Unavailable
11
SPACER - Call your local BRP dealership
291000176
Unavailable
12
Handle Pad | Includes 9 to 10
277000867
Unavailable
13
Handle Bar Pad Support
277000687
Unavailable
14
BALL JOINT - Call your local BRP dealership
277000829
Unavailable
15
Steering Stem
277000562400
Unavailable
16
L-LEVER - Call your local BRP dealership | Includes 62 to 64
277000772
Unavailable
17
SPACER - Call your local BRP dealership
291000176
Unavailable
18
Hex. Elastic Stop Nut M6
232561600
$1.15
19
Throttle Handle
277000214
Unavailable
20
Hex. Forming Screw M6 X 20
207162060
$1.29
21
Handlebar
277000824
Unavailable
22
STEERING CLAMP - Call your local BRP dealership
277000142
Unavailable
23
HEX. SCREW M8 X 50 - Call your local BRP dealership
207085060
Unavailable
24
Hex. Screw M6 X 40
207064060
$1.69
25
Throttle Cable Ass'y
277000912
Unavailable
26
THROTTLE HOUSING ASS'Y - Call your local BRP dealership
277000872
Unavailable
27
HANDLE GRIP KIT, BLACK - Call your local BRP dealership
295500691
Unavailable
28
Flat Washer M6, Stainless
234062600
$0.77
29
Hex. Screw M6 X 30, Scotch Grip
250000002
$0.92
30
Not Available As Spare Part - Friction Washer
Unavailable
31
Black, Cap
277000203
$9.39
32
LOWER STEERING COVER - Call your local BRP dealership
277000625
Unavailable
33
PLATE - Call your local BRP dealership
277000549
Unavailable
34
HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership
211000036
Unavailable
35
Tie Wrap 142 mm
293750002
$1.25
36
Flat Washer M5, Stainless
234051600
$0.77
37
Hex. Flange Screw K40 X 16
241141660
$1.48
38
Hex. Screw M6 X 35
207063560
$2.22
39
Cable-Steering This part replaces 277001008.
277001324
$219.99
40
Ajustment Knob
277000782
$22.99
41
Flat Washer M6, Stainless
234062600
$0.77
42
Hex. Nut 1/4"-28
211100056
$0.69
43
Terminal Wiper
277000441
$11.99
44
Ball Joint
277001180
$35.99
45
Ball Joint
277000775
$51.99
46
HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership
211000022
Unavailable
47
Upper Steering Cover | Includes 32 to 33
277000833
Unavailable
48
Steering Plate | STD
277000823
Unavailable
49
Synthetic Grease, 400 G
293550010
Unavailable
50
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
51
PIN - Call your local BRP dealership
277000381
Unavailable
52
Half Ring
277001527
$10.37
53
Rubber Washer
293830063
$1.90
54
Hex. Screw M6 X 30
207063060
$1.89
55
Retainer Plate
277000845
Unavailable
56
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership
209631360
Unavailable
57
Stainless Flat Washer M6
234061600
$0.33
58
TAB LOCK - Call your local BRP dealership
277000279
Unavailable
59
Hex. Elastic Stop Nut M6
232561600
$1.15
60
Tie Wrap 368 mm
293750008
$1.04
61
Hex. Elastic Nut M8
232581600
$1.48
62
HOUSING ASSY - Call your local BRP dealership | Includes 14 to 17
277000877
Unavailable
63
VTS KNOB - Call your local BRP dealership
277000497
Unavailable
64
Switch Knob
277000306
Unavailable
65
SQUARE NUT M6 - Call your local BRP dealership
232860600
Unavailable
66
Socket Head Screw M6 X 16
250000036
$9.00
67
Hex. Screw M6 X 25
207162560
$1.47
68
Was 293200017 Neoprene Seal
219704365
$149.99
69
Hex. Screw M6 X 35
207063560
$2.22
70
Flat Washer M8.5 x 18
293050001
$3.07
71
Tie-Rap 180 mm
414115200
$0.11
72
INSERT - Call your local BRP dealership
293450153
Unavailable
73
CHOKE CABLE - Call your local BRP dealership | Includes 7 - 8.
270000341
Unavailable
74
NUT-HEXAGONAL HI-LEX - Call your local BRP dealership
211100030
Unavailable
