Description

Price

1

Impeller Ass’Y

271000920

$391.99

2

Impeller Boot

271000516

$9.59

3

Oil Seal

267000094

$22.49

4

Needle Bearing

293350017

$27.99

5

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

6

Hex. Screw M8 X 45

207084560

$3.38

7

IMPELLER HOUSING ASS'Y - Call your local BRP dealership | Includes 7 - 10.

271001143

Unavailable

8

Wear Ring

271000653

$58.49

9

Square Nut M8

211100033

$17.99

10

Impeller Shaft

271000965

$116.49

11

O-Ring

293300011

$8.64

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

13

IMPELLER COVER - Call your local BRP dealership

271001250

Unavailable

14

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

15

Loctite 271, 10 ml

293800005

$26.99

16

Loctite 243, 10 ml

293800060

$21.49

17

Venturi (Black)

271001079

Unavailable

18

Riding Plate

271001229

Unavailable

19

Lock Washer 8 mm, Stainless

234181601

$0.55

20

Hex. Screw M6 X 16

207161660

$1.59

21

Was 293800041 Loctite Primer 7649

219704458

$39.99

22

Neoprene Seal (1PAC=3M)

219704364

$27.49

23

Watertight Seal

293250084

$7.49

24

Nozzle

271000806

Unavailable

25

Stainless Flat Washer M6

234061600

$0.33

26

Impeller Ring

271000517

$9.59

27

Water Outlet

271000785

$3.80

28

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

29

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

30

Loctite 243, 10 ml

293800060

$21.49

31

Stainless, Flat Washer 8 mm

234081600

$0.55

32

Pump Grate

271000763

Unavailable

33

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

34

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

35

O-Ring

293300013

$8.18

36

Silicone Sealant 51388, 300 ml

296000309

$36.99

37

Stainless Flat Washer M6

234061600

$0.33

38

Flat Washer M5, Stainless

234051600

$0.77

39

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

40

Was 293800013 Loctite 56765

219704454

$65.99

41

PUSHER ASS?Y - Call your local BRP dealership

271001124

Unavailable

42

SPRING - Call your local BRP dealership

271001108

Unavailable

43

Thrust-Bearing

293350022

$45.99

44

SLIDER - Call your local BRP dealership

271001107

Unavailable

45

Siphon Tube

271001133

$10.99

46

Hex. Plastite Screw #10 X 3/8"

250000040

$1.05

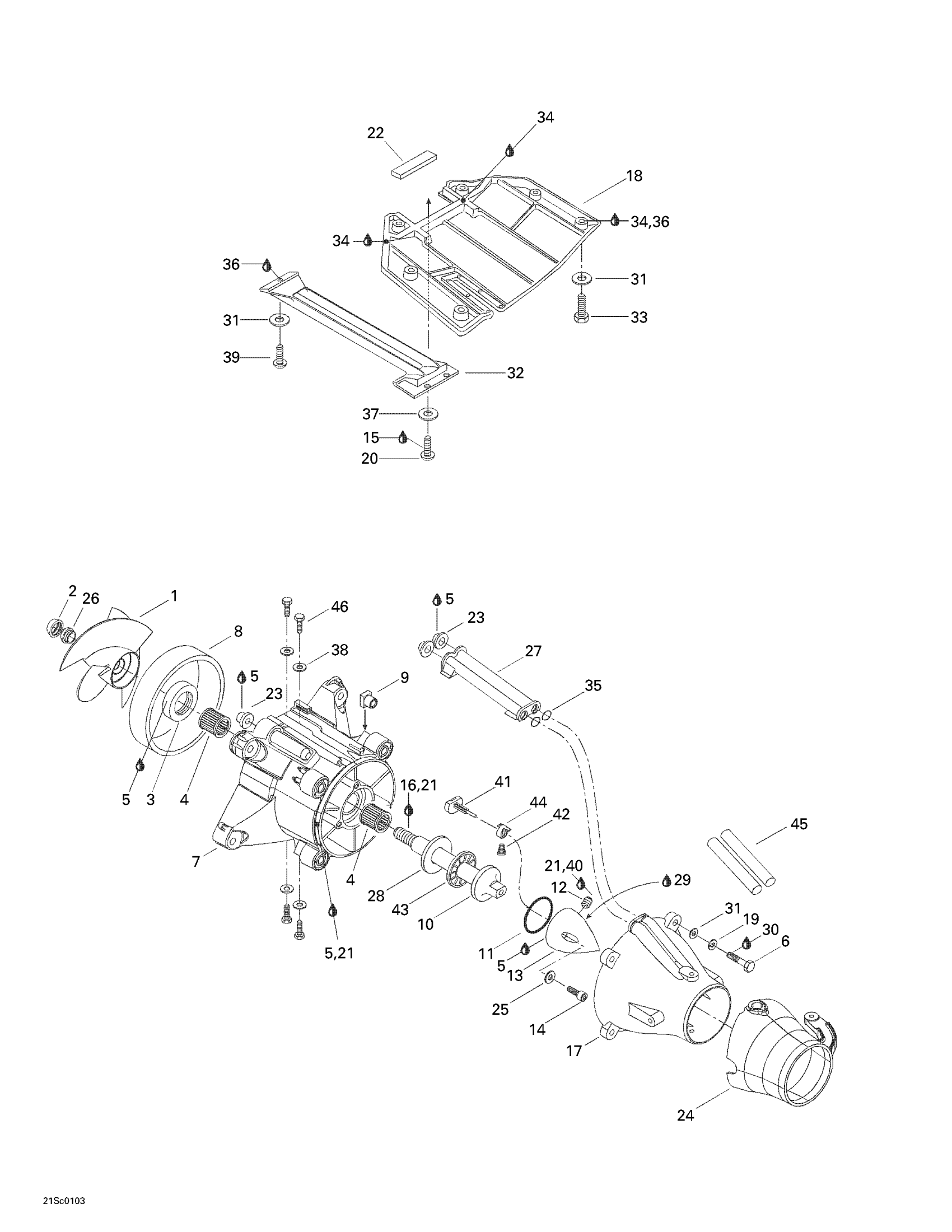

Sea-doo XP, 5530/5531, 2001 05- Propulsion System Diagram

Impeller Ass’Y

Impeller Boot

Oil Seal

Needle Bearing

Était/Was 293800038 Loctite 518, 50 ml

Hex. Screw M8 X 45

IMPELLER HOUSING ASS'Y - Call your local BRP dealership | Includes 7 - 10.

Wear Ring

Square Nut M8

Impeller Shaft

O-Ring

Pipe Plug Socket Head 1/8-27 Npt

IMPELLER COVER - Call your local BRP dealership

Socket Head Screw M6 X 25, Scotch Grip

Loctite 271, 10 ml

Loctite 243, 10 ml

Venturi (Black)

Riding Plate

Lock Washer 8 mm, Stainless

Hex. Screw M6 X 16

Was 293800041 Loctite Primer 7649

Neoprene Seal (1PAC=3M)

Watertight Seal

Nozzle

Stainless Flat Washer M6

Impeller Ring

Water Outlet

THRUST WASHER - Call your local BRP dealership

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

Loctite 243, 10 ml

Stainless, Flat Washer 8 mm

Pump Grate

Hex. Screw M8 X 30, Scotch Grip

Was 293800066 Sealant Loctite 5900, 300 ml

O-Ring

Silicone Sealant 51388, 300 ml

Stainless Flat Washer M6

Flat Washer M5, Stainless

Hex. Screw M8 X 25, Scotch Grip

Was 293800013 Loctite 56765

PUSHER ASS?Y - Call your local BRP dealership

SPRING - Call your local BRP dealership

Thrust-Bearing

SLIDER - Call your local BRP dealership

Siphon Tube

Hex. Plastite Screw #10 X 3/8"
