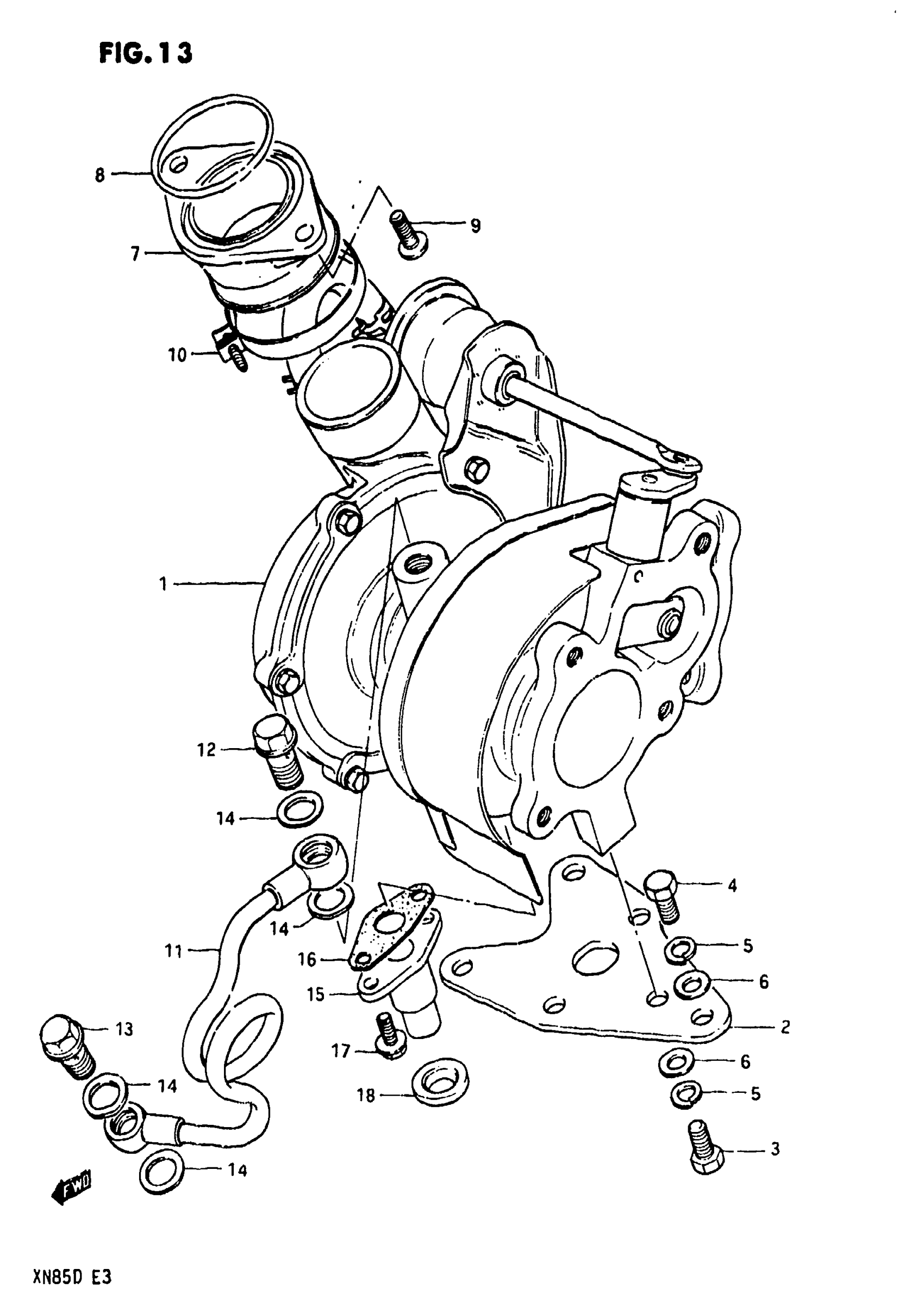

Suzuki XN85-D (1983) TURBOCHARGER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 13900-09300.

13900-09301

Unavailable

2

PLATE

13910-09310

Unavailable

3

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

4

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

6

WASHER This part replaces 08322-11088.

08322-01087

$2.13

7

PIPE, TURBOCHARGER

13920-09300

Unavailable

8

O RING

09280-40007

Unavailable

9

SCREW This part replaces 02112-06168.

02112-06167

$1.49

10

CLAMP

09402-50306

$4.77

11

PIPE, OIL INLET

13930-09301

Unavailable

12

UNION BOLT (ID:1.5)

09360-10011

Unavailable

13

UNION BOLT (ID:4)

09360-10012

Unavailable

14

GASKET

09168-10028

Unavailable

15

CONNECTOR, OIL OUTLET

13951-09310

Unavailable

16

GASKET

13952-09300

Unavailable

17

BOLT This part replaces 01517-06168.

01550-06167

$2.30

18

OIL SEAL

09282-20004

Unavailable
