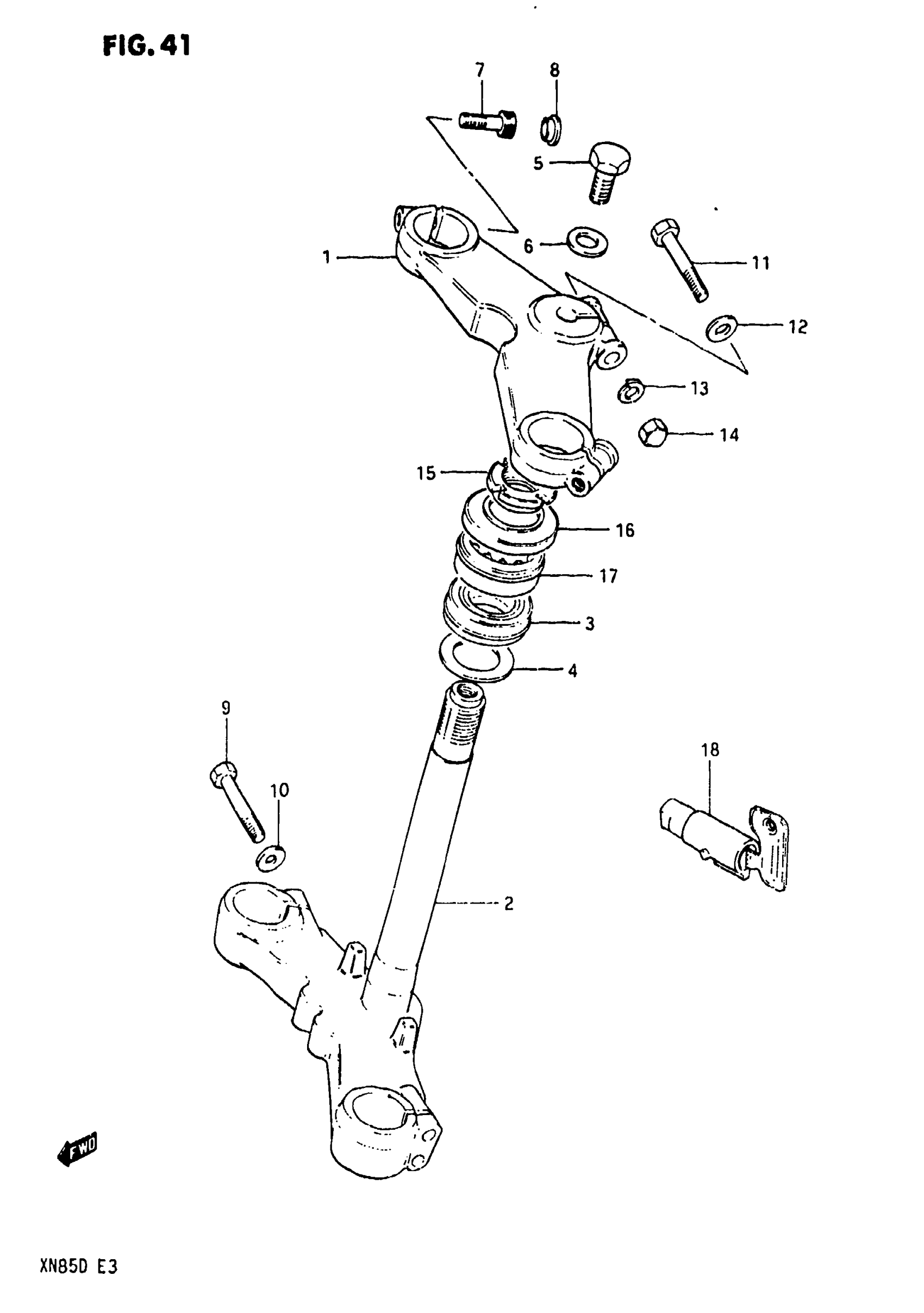

Suzuki XN85-D (1983) STEERING STEM Diagram

#

Description
Price

1

STEM HEAD, STEERING (SILVER)

51311-09310-737

Unavailable

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 - 4 This part replaces 51410-09310-291.

51410-31330-15T

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

5

BOLT This part replaces 51352-09300.

51352-31305

Unavailable

6

WASHER This part replaces 51356-09300.

51356-43530

$6.55

7

BOLT This part replaces 51353-09310.

07130-1035B

$5.18

8

CAP

09250-08010

$2.33

9

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

BOLT This part replaces 01107-08508.

01500-08507

$3.05

12

WASHER This part replaces 08322-21088.

08322-01087

$2.13

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

NUT This part replaces 08313-11088.

08313-10087

$2.28

15

NUT, STEERING STEM

51631-34200

Unavailable

16

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

17

BEARING, STEERING UPPER

09265-25008

Unavailable

18

LOCK ASSY,STEER This part replaces 51900-22662.

51900-309V0

$87.06
