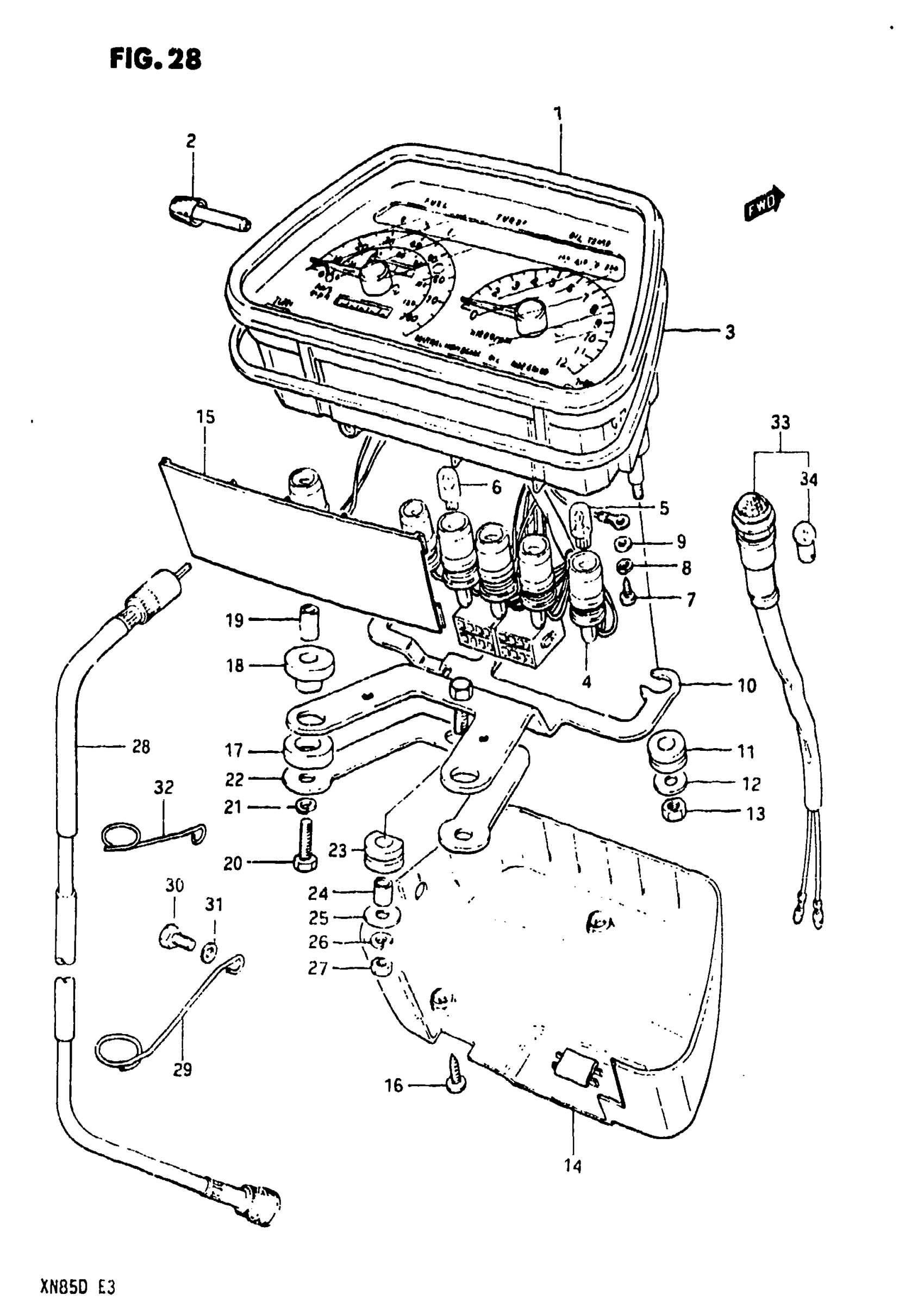

Suzuki XN85-D (1983) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDO & TACHOMETER (MILE/KILO | Includes Item(s) 2

34101-09330

Unavailable

2

KNOB

34980-09300

Unavailable

3

CUSHION, METER

34189-09300

Unavailable

4

SOCKET

34173-09300

Unavailable

5

BULB (12V,3.4W)

09471-12028

$1.99

6

BULB (12V,1.7W)

09471-12077

$3.55

7

SCREW This part replaces 02112-03128.

02112-0312B

Unavailable

8

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

9

WASHER This part replaces 08322-21038.

08322-01037

$1.93

10

BRACKET

34950-09300

Unavailable

11

CUSHION

34189-45410

Unavailable

12

WASHER (5.5X18X1) This part replaces 34181-45410.

09160-05045

$1.93

13

NUT This part replaces 08310-11058.

08310-00057

$1.84

14

COVER, METER

34193-09300

Unavailable

15

PLATE, COVER

34197-09300

Unavailable

16

SCREW

03241-04128

Unavailable

17

CUSHION, LOWER

34956-09310

Unavailable

18

CUSHION, UPPER

34955-11300

$4.52

19

SPACER

09180-06116

Unavailable

20

BOLT, REAR This part replaces 01107-06308.

01500-06307

$2.48

21

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

22

BRACKET

34951-09301

Unavailable

23

CUSHION

34956-09301

Unavailable

24

SPACER (6.1X8X15.5) This part replaces 09180-06040.

09180-06251

$2.44

25

WASHER

09160-06036

$2.28

26

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

27

.NUT This part replaces 08310-11068.

08310-00067

$2.13

28

CABLE ASSY,SPEE This part replaces 34910-09300.

34910-49312

$39.80

29

GUIDE, METER CABLE

34938-45100

$6.57

30

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

31

WASHER This part replaces 08322-21068.

08322-01067

$2.13

32

GUIDE, METER CABLE

34939-49300

Unavailable

33

LAMP ASSY, IDLE SWITCH | Includes Item(s) 34

36390-09300

Unavailable

34

BULB (12V,3.4W)

09471-12001

$1.65
