1983 Suzuki XN85-D Rear Wheel Diagram

← All diagrams

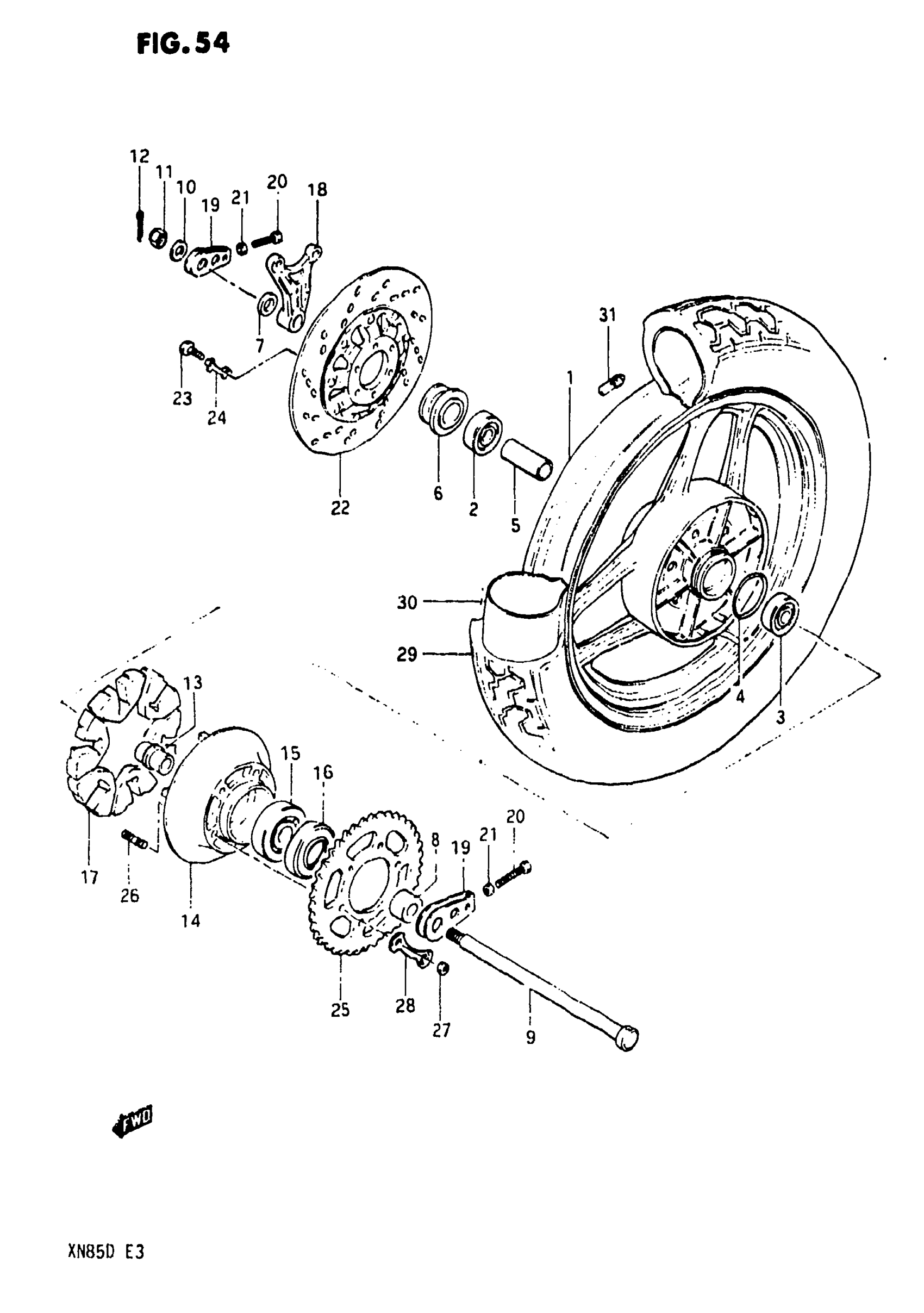

Find the part on the Rear Wheel diagram for your 1983 Suzuki XN85-D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki XN85-D Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, REAR (MT2.50x17) (BLACK | 1

64111-09301-291

1
Out of stock

2

BEARING, RH

08133-62047

1
Out of stock

3

BEARING, LH This part replaces 08153-62047.

09262-20042

1
Out of stock

4

O RING

09280-58003

1
Out of stock

5

SPACER

09180-20087

1
Out of stock

6

SPACER, AXLE, RH This part replaces 64740-45001.

64740-45002

1
Out of stock

7

SPACER, AXLE RH

09180-20086

1
Out of stock

8

SPACER, AXLE LH (20x33x28.3)

64751-09300

1
Out of stock

9

AXLE, REAR

64711-09300

1
Out of stock

10

WASHER

09160-19008

1
Out of stock

11

NUT This part replaces 08314-31188.

08314-3118A

1
Out of stock

12

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

13

HOLDER, BEARING

64733-09300

1
Out of stock

14

NO DESCRIPTION AVAILABLE This part replaces 64611-09301.

64611-09302

1
Out of stock

15

BEARING, MOUNTING

09262-32004

1
Out of stock

16

OIL SEAL

09285-40001

1
Out of stock

17

CUSHION, REAR HUB

64651-09300

6
Out of stock

18

BRACKET, REAR CARIPERS

69721-47011

1
Out of stock

19

ADJUSTER, CHAIN

61410-09300

2
Out of stock

20

BOLT (8X50) This part replaces 09104-08018.

09104-08034

2
Out of stock

21

2

$1.93

In stock

22

DISK, REAR BRAKE

59210-18450

2
Out of stock

23

BOLT

09100-08207

6
Out of stock

24

WASHER This part replaces 09169-08029.

09169-08016

3
Out of stock

25

SPROCKET, REAR (NT:39)

64511-09330

1
Out of stock

26

BOLT

09105-10001

6
Out of stock

27

NUT This part replaces 09140-10026.

09140-10026-XC0

6
Out of stock

28

WASHER

09169-10015

3
Out of stock

29

TIRE (120/90-17 64H) | MICHELIN

65100-09395

1
Out of stock

30

TUBE, INNER | MICHELIN

65200-09395

1
Out of stock

31

BALANCER, WHEEL NO.2 This part replaces 55411-45100.

55412-17G00

1
Out of stock

31

BALANCER, NO.2 (30G)

55412-45100

—
Out of stock

31

BALANCER (10G) This part replaces 55413-45100.

55411-00A00

1
Out of stock
