1983 Suzuki XN85-D Cushion Lever Diagram

← All diagrams

Find the part on the Cushion Lever diagram for your 1983 Suzuki XN85-D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

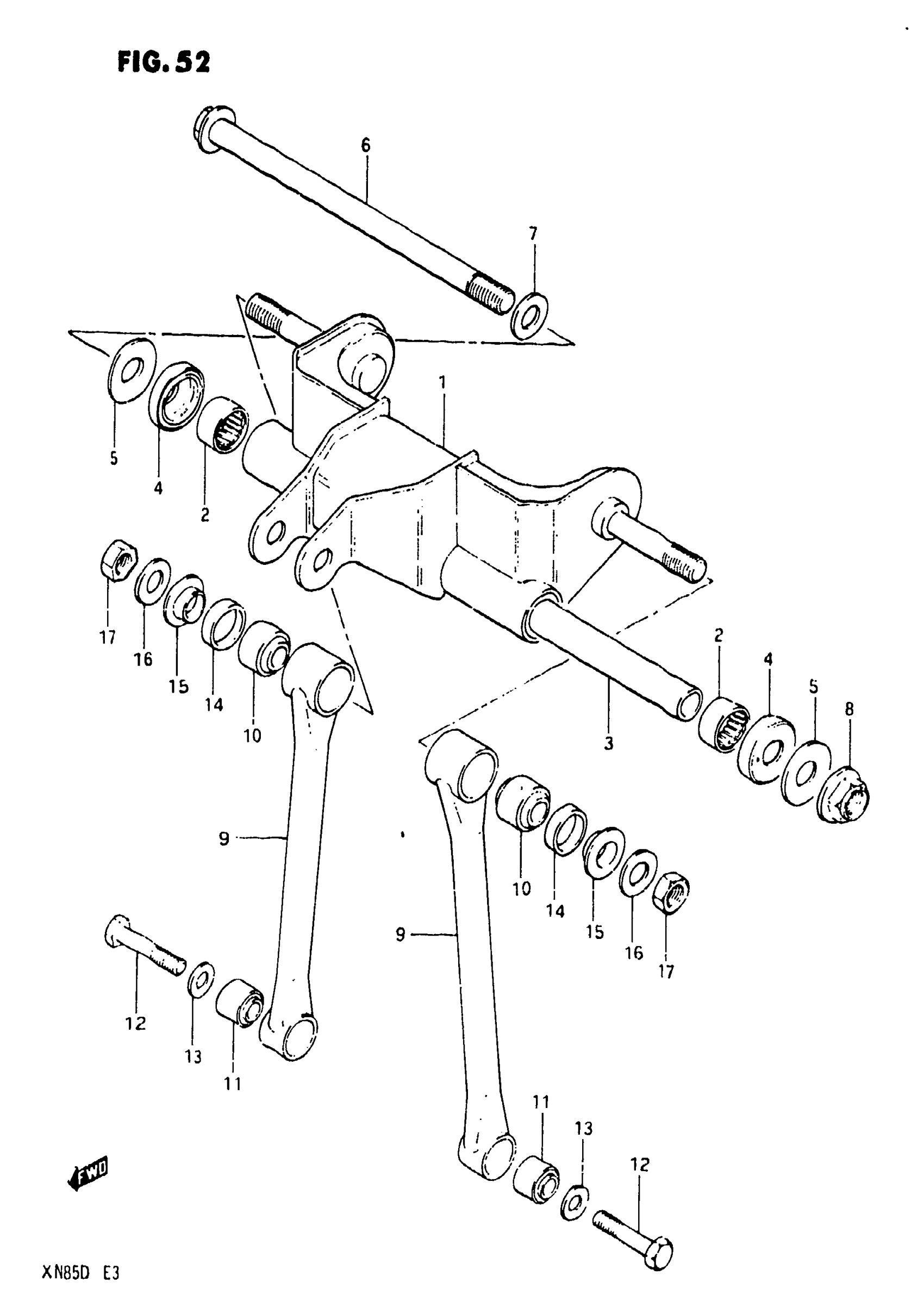

1983 Suzuki XN85-D Cushion Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER SET, CUSHION | Includes Item(s) 2

62600-09810

1
Out of stock

2

BEARING, CENTER (17X24X20) This part replaces 09263-17011.

09263-17027

2
Out of stock

3

SPACER

62623-09300

1
Out of stock

4

COVER This part replaces 61262-41500.

61262-41501

2
Out of stock

5

THRUST WASHER

08211-12281

2
Out of stock

6

SHAFT

62621-09300

1
Out of stock

7

WASHER This part replaces 08322-11128.

08322-01127

1
Out of stock

8

NUT This part replaces 08316-16128.

08316-10127

1
Out of stock

9

ROD, CUSHION LEVER | Includes Item(s) 10 - 11

62600-09820

2
Out of stock

10

BEARING This part replaces 09269-12001.

09269-12004

2
Out of stock

11

BUSH, LOWER

09319-12002

2
Out of stock

12

BOLT, LOWER

09100-12116

2
Out of stock

13

WASHER This part replaces 08322-11128.

08322-01127

2
Out of stock

14

DUST SEAL, UPPER

64339-09300

4
Out of stock

15

SPACER, UPPER

62316-09300

4
Out of stock

16

WASHER This part replaces 09160-12050.

09160-12088

2
Out of stock

17

NUT, FIXED DRIVE FACE This part replaces 08310-12128.

09140-12039

2
Out of stock
