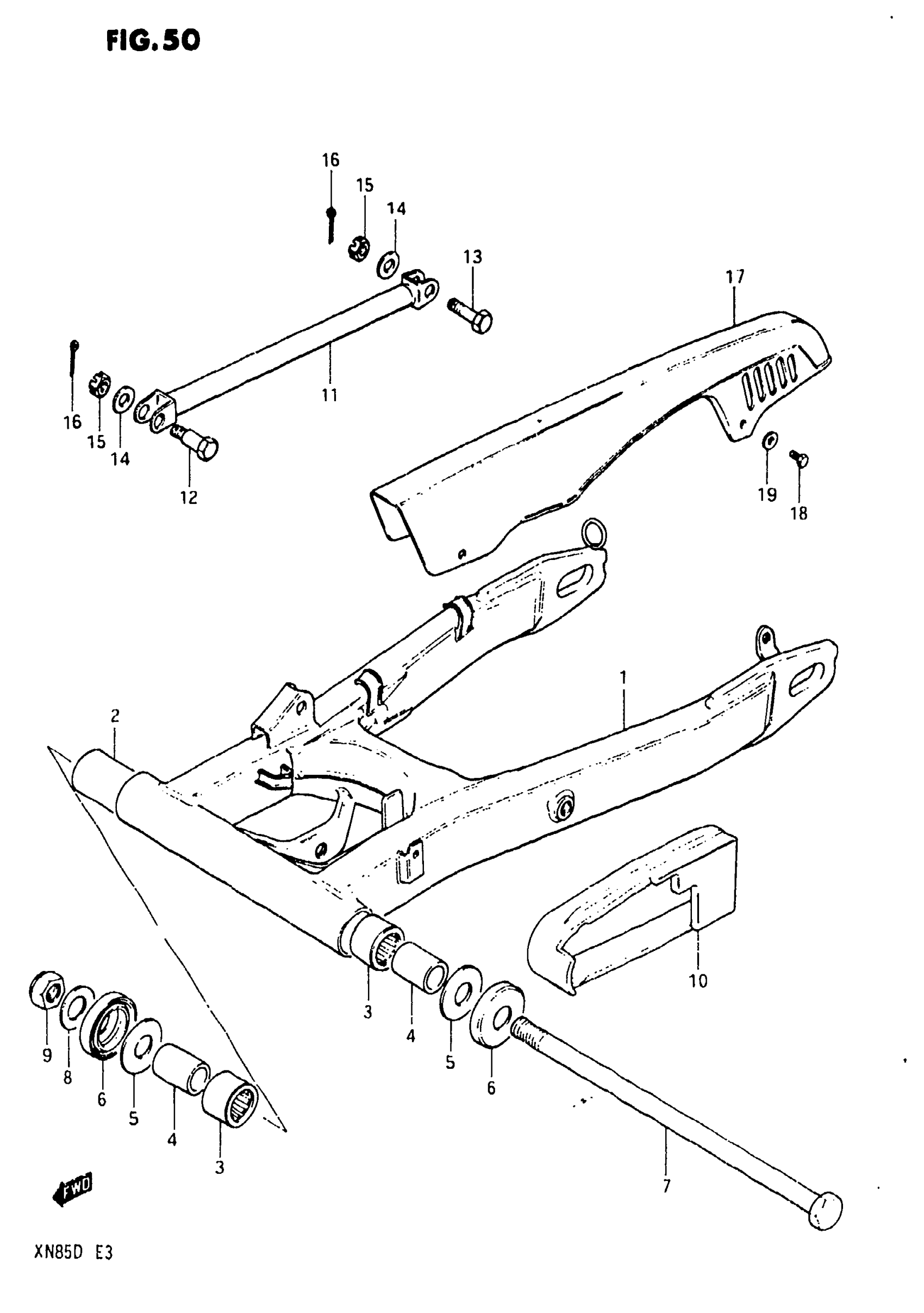

Suzuki XN85-D (1983) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM SET (GOLD) | Includes Item(s) 2 - 3

61000-09301-08C

Unavailable

2

SPACER, CENTER

61282-09300

Unavailable

3

BEARING

09263-25024

$25.92

4

SPACER

61251-49000

$26.43

5

WASHER

08211-16381

$2.42

6

COVER, DUST SEAL

61262-49000

Unavailable

7

SHAFT, PIVOT

61211-09300

Unavailable

8

WASHER This part replaces 08322-11168.

08322-01167

$2.10

9

NUT

09159-16007

$12.61

10

BUFFER, CHAIN DEFENSE

61273-09300

Unavailable

11

TORQUE LINK, REAR (BLACK)

64310-49000-019

Unavailable

12

BOLT,10X39 This part replaces 09111-10011.

09111-10022-XC0

Unavailable

13

BOLT, REAR

09101-10017

Unavailable

14

WASHER This part replaces 08322-11108.

08322-01107

$2.15

15

NUT This part replaces 08314-41108.

08314-4010B

$2.50

16

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

17

CHAIN CASE (BLACK)

61310-09301-291

Unavailable

18

BOLT

09100-06107

Unavailable

19

WASHER This part replaces 08322-21068.

08322-01067

$2.13
