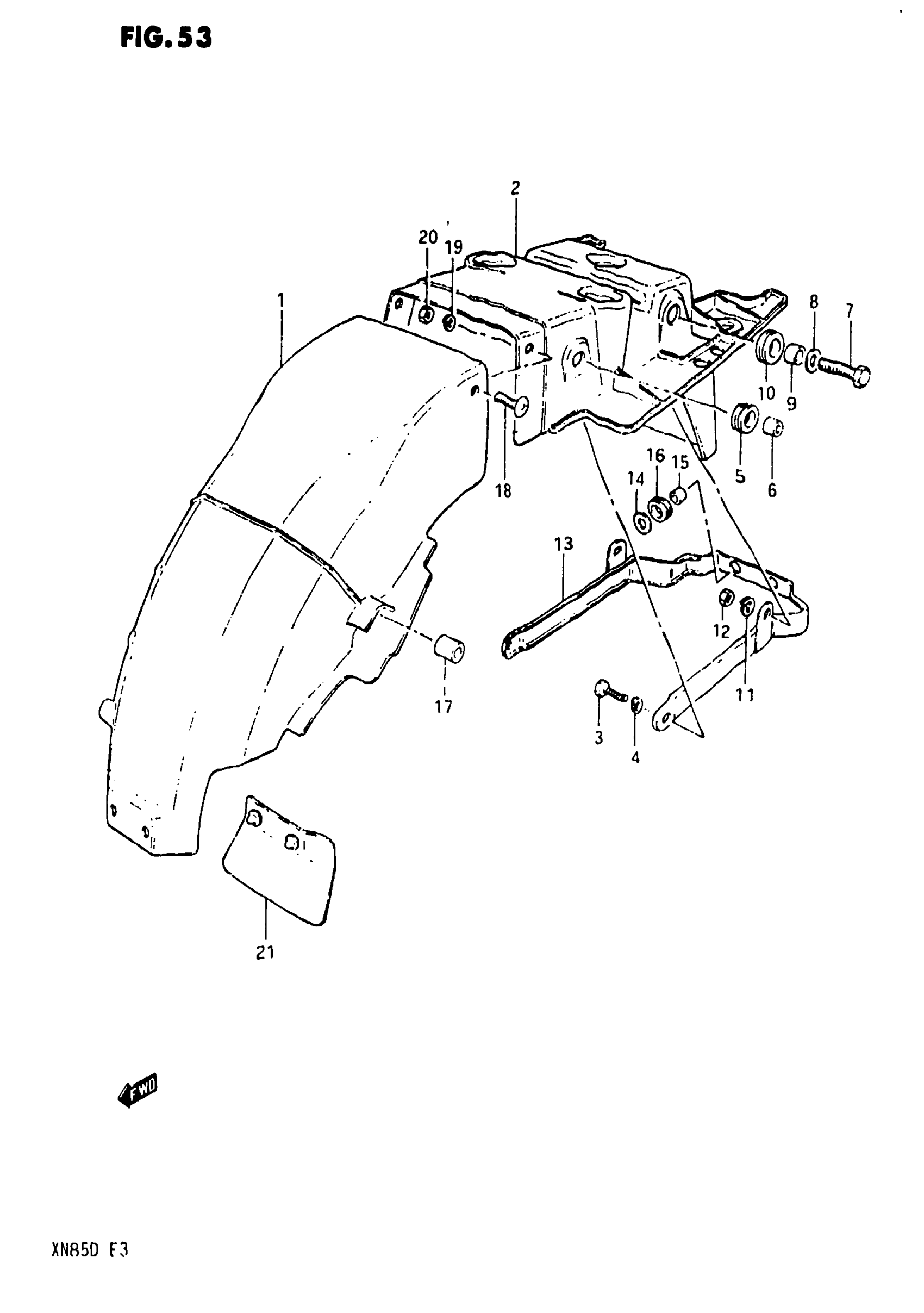

Suzuki XN85-D (1983) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT

63112-09300

Unavailable

2

BODY, REAR FENDER REAR

63113-09300

Unavailable

3

BOLT This part replaces 01107-06208.

01500-06207

$2.28

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

6

SPACER (6.1X9X7.5)

09180-06038

$1.98

7

BOLT This part replaces 01107-08308.

01500-08307

$3.04

8

WASHER This part replaces 08322-11088.

08322-01087

$2.13

9

SPACER This part replaces 09180-08021.

09180-08188

$2.56

10

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.91

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

NUT This part replaces 08310-12088.

08310-00087

$2.13

13

REINFORCEMENT, REAR FENDER

63120-09300

Unavailable

14

WASHER This part replaces 09160-06012.

09160-06054

$1.62

15

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

16

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

17

CUSHION This part replaces 09329-05003.

09329-05009

$2.37

18

SCREW This part replaces 02142-05128.

02142-05127

$1.97

19

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

20

NUT This part replaces 08310-11058.

08310-00057

$1.84

21

MUD GUARD, REAR FENDER

63411-31900

Unavailable
