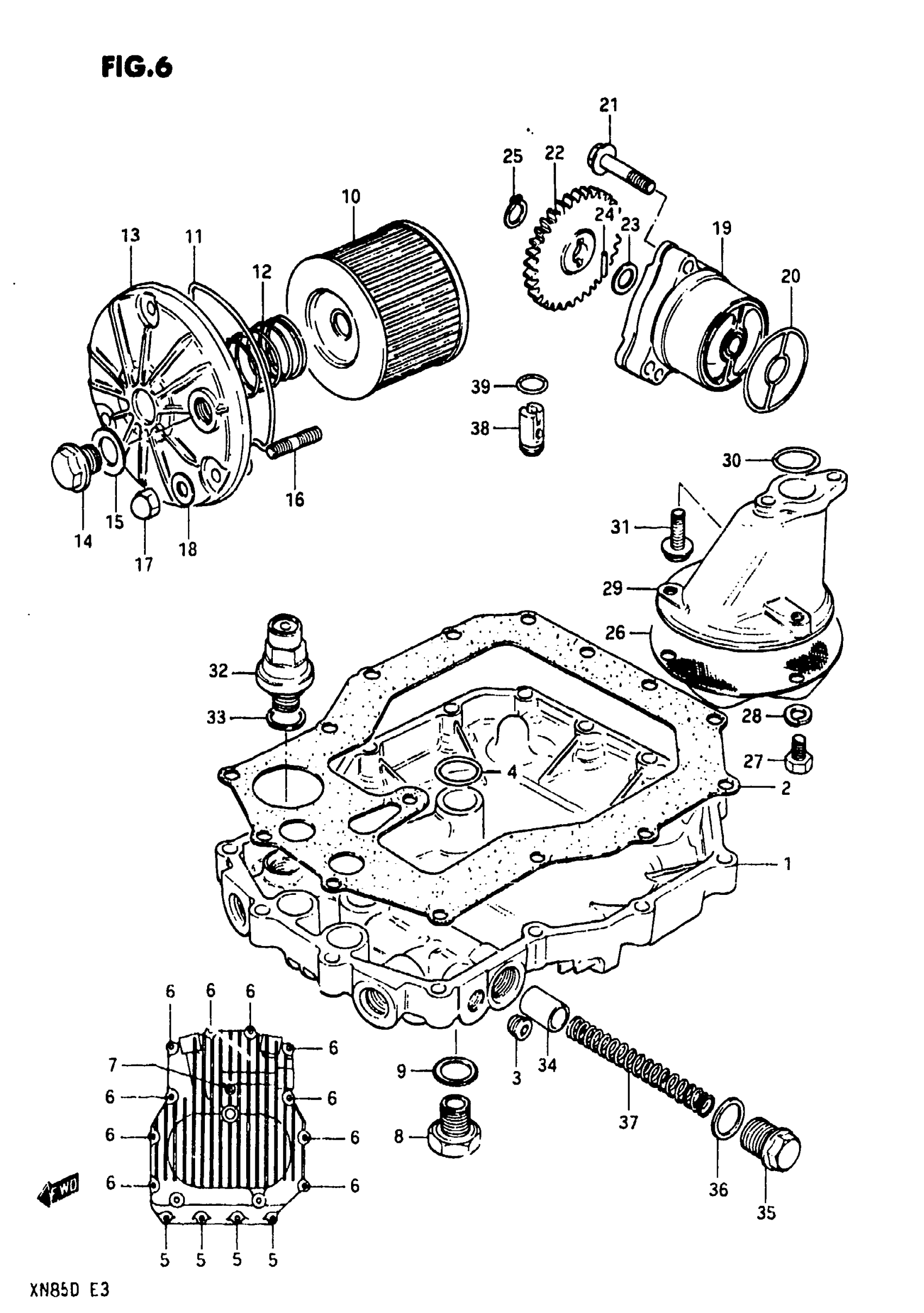

Suzuki XN85-D (1983) OIL PUMP - OIL FILTER Diagram

#

Description
Price

1

PAN, OIL

11511-09304

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 11489-09300.

11489-09301-H17

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 09246-05001.

09246-04001

Unavailable

4

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.83

5

BOLT This part replaces 07122-06258.

07120-06257

$3.05

6

BOLT This part replaces 07122-06308.

07120-06307

$4.32

7

BOLT This part replaces 07122-06358.

07120-0635B

$3.38

8

PLUG This part replaces 09247-14012.

09247-14026

$3.76

9

GASKET

09168-14004

$1.83

10

FILTER, ENGINE OIL

16510-45040

$5.96

11

O RING

16518-45000

$5.70

12

SPRING

09440-32004

$2.92

13

NO DESCRIPTION AVAILABLE This part replaces 16512-33310.

16512-33311

Unavailable

14

PLUG This part replaces 09247-14012.

09247-14026

$3.76

15

GASKET

09168-14004

$1.83

16

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

17

NUT, LICENSE HOLDER This part replaces 08313-11068.

08313-10067

$1.84

18

WASHER This part replaces 08322-21068.

08322-01067

$2.13

19

PUMP, ENGINE OIL

16400-09300

Unavailable

20

O RING This part replaces 16491-49200.

16491-31300

$13.90

21

BOLT This part replaces 01517-06308.

01550-06307

$2.69

22

GEAR, OIL PUMP DRIVEN (NT:33)

16331-49000

Unavailable

23

WASHER

08221-10185

$2.15

24

PIN

09261-04009

$1.56

25

CIRCLIP

08331-31109

$1.78

26

STRAINER, OIL This part replaces 16520-09300.

16520-09301

$15.42

27

BOLT This part replaces 01107-06128.

01500-06127

$1.97

28

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

29

PROTECTOR, OIL STRAINER

16525-09301

Unavailable

30

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.83

31

BOLT This part replaces 01517-06208.

01550-06207

$2.30

32

REGULATOR, ENGINE OIL

16440-44500

Unavailable

33

WASHER

08212-14181

Unavailable

34

PLUNGER, OIL CONTROL This part replaces 16442-34300.

16442-34301

Unavailable

35

PLUG, REGULATOR

09247-16002

Unavailable

36

WASHER

09168-16002

$1.91

37

SPRING, REGULATOR

09440-10011

Unavailable

38

RELEASE ASSY, OIL

16430-09300

Unavailable

39

O RING

09280-10009

$2.30
