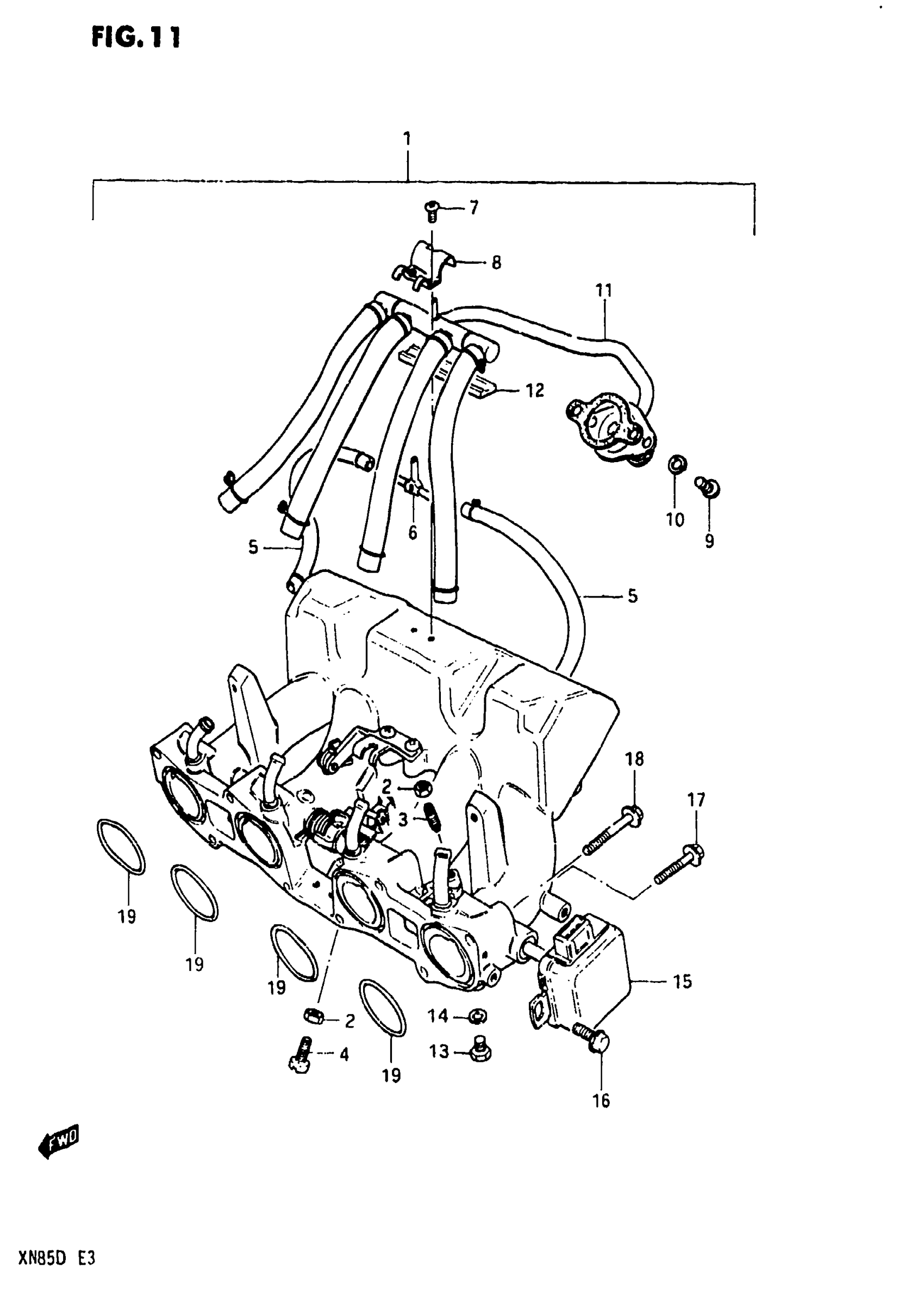

Suzuki XN85-D (1983) INTAKE PIPE Diagram

#

Description
Price

1

INTAKE MANIFOLD ASSY | Includes Item(s) 2 - 16

13110-09300

Unavailable

2

NUT

13607-47070

$3.13

3

ADJUSTER

13605-47080

$7.77

4

ADJUSTER

13605-09310

Unavailable

5

HOSE ASSY

13680-09300

Unavailable

6

NIPPLE

13685-09300

Unavailable

7

SCREW

13602-09300

Unavailable

8

PLATE

13447-09300

Unavailable

9

SCREW This part replaces 02112-06128.

02112-06127

$1.84

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

11

PIPE ASSY

13694-09300

Unavailable

12

SEAT, RUBBER

13287-09300

Unavailable

13

BOLT

13247-09300

Unavailable

14

WASHER

13531-09300

Unavailable

15

THROTTLE SENSER

15780-09300

Unavailable

16

BOLT

01547-06128

Unavailable

17

BOLT This part replaces 01517-06308.

01550-06307

$2.69

18

BOLT This part replaces 01517-06408.

01550-06407

$2.69

19

O RING

09280-38004

$2.92
