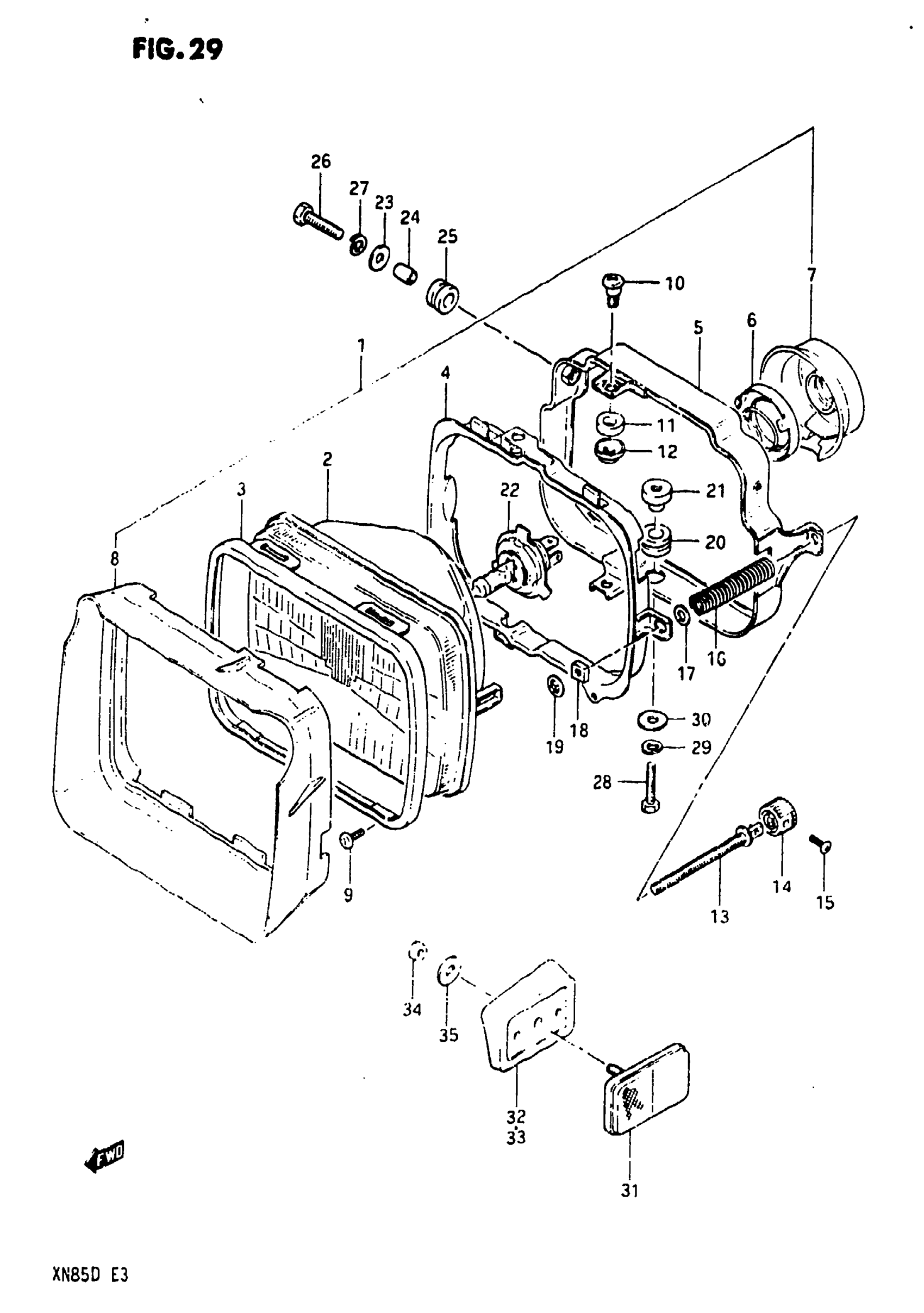

Suzuki XN85-D (1983) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 21

35100-09330-999

Unavailable

2

UNIT

35121-49230

Unavailable

3

RETAINER

35127-49320

Unavailable

4

RING, MOUNTING

35130-49320

Unavailable

5

HOUSING

35381-49320

Unavailable

6

HOLDER, BULB

35136-49200

Unavailable

7

COVER, SOCKET This part replaces 35173-49200.

35173-38A00

$16.87

8

SHADE

35129-09300

Unavailable

9

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

10

SCREW,HEAD LAMP This part replaces 35136-25611.

35136-35400

$4.58

11

SPACER

35133-45600

Unavailable

12

NUT This part replaces 35135-25611.

08316-1005A

$2.19

13

ADJUSTING SCREW

35151-49320

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 35161-49320.

35136-49331

Unavailable

15

SCREW This part replaces 02112-03108.

02112-03107

$1.49

16

SPRING

35154-49320

Unavailable

17

NO DESCRIPTION AVAILABLE This part replaces 35157-49320.

09160-06073

Unavailable

18

NUT

35152-49320

Unavailable

19

NUT This part replaces 35152-49330.

09148-04010

$2.20

20

CUSHION

35382-49321

Unavailable

21

NUT

35383-49321

Unavailable

22

BULB (12V,60/55W,H4) | EXECUTED LOCALLY

09471-12060

$25.15

23

WASHER This part replaces 09160-06007.

09160-06084

$1.78

24

SPACER (6.1X8X9.5) This part replaces 09180-06044.

09180-06248

$2.12

25

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

26

BOLT This part replaces 01107-06258.

01500-06257

$1.97

27

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

28

BOLT

09128-06030

Unavailable

29

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

30

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

31

REFLEX REFLECTOR, FRONT

35950-09330

Unavailable

32

SPACER, RH

35954-09330

Unavailable

33

SPACER, LH

35955-09330

Unavailable

34

NUT This part replaces 08310-11058.

08310-00057

$1.84

35

WASHER

09160-05013

$1.49
