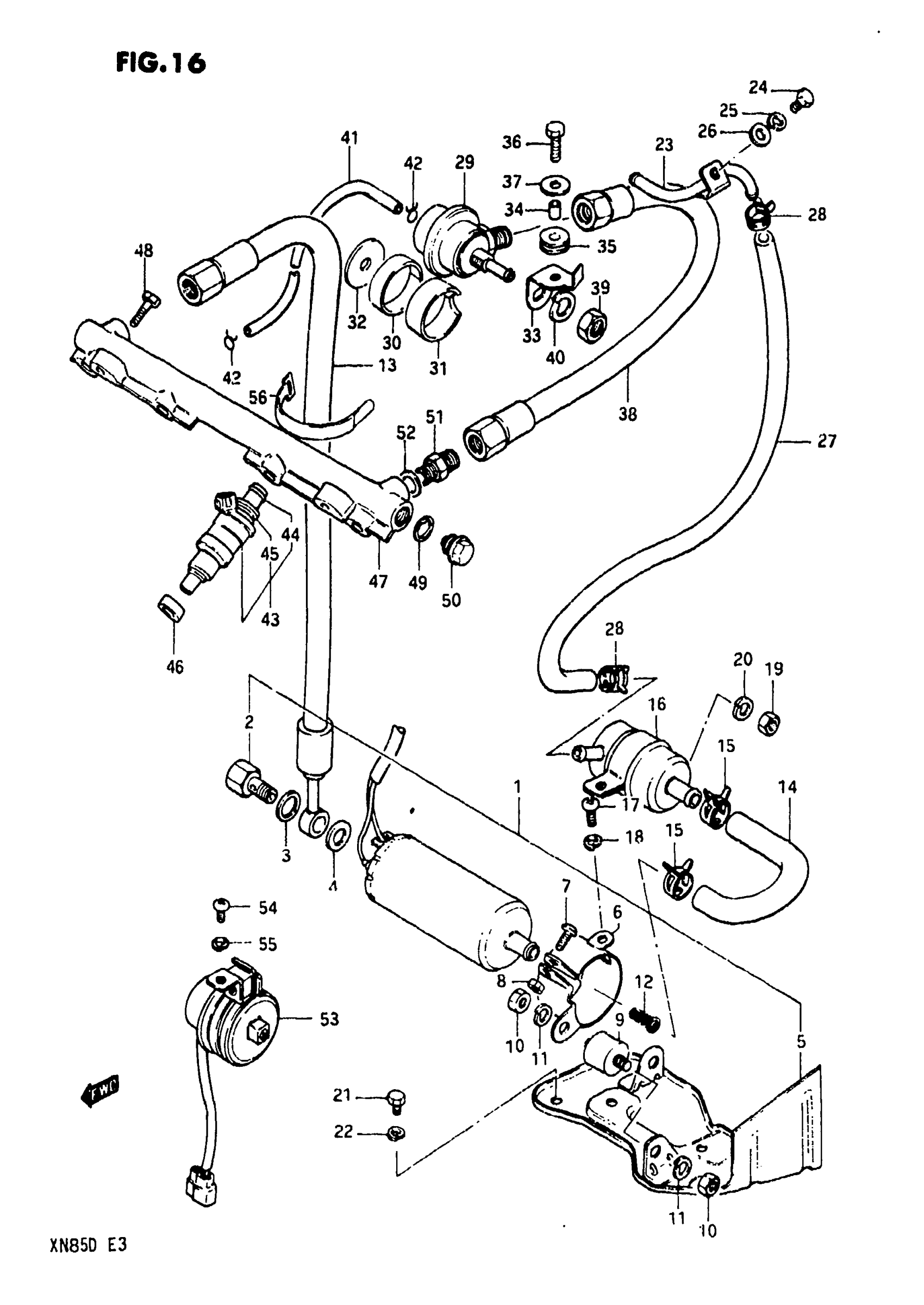

Suzuki XN85-D (1983) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, FUEL | Includes Item(s) 2 - 12

15110-09300

Unavailable

2

NUT

15115-09300

Unavailable

3

GASKET

15116-09300

Unavailable

4

WASHER

15117-09300

Unavailable

5

BRACKET

15120-09300

Unavailable

6

CLAMP, PUMP

15121-09300

Unavailable

7

SCREW This part replaces 02112-06208.

02112-06207

$1.78

8

.NUT This part replaces 08310-11068.

08310-00067

$2.13

9

CUSHION

15130-09300

Unavailable

10

NUT This part replaces 08310-12088.

08310-00087

$2.13

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

FILTER

15118-09300

Unavailable

13

HOSE, OUTLET

15660-09301

Unavailable

14

HOSE, PUMP INLET (1)

15684-09310

Unavailable

15

CLIP, NO.1 This part replaces 09401-18401.

09401-18404

$1.90

16

FILTER ASSY, FUEL

15690-09300

Unavailable

17

SCREW This part replaces 02112-06128.

02112-06127

$1.84

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

19

NUT This part replaces 08310-12088.

08310-00087

$2.13

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

BOLT This part replaces 01107-06108.

01500-06107

$2.06

22

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

23

PIPE, PUMP INLET

15680-09320

Unavailable

24

BOLT This part replaces 01107-06128.

01500-06127

$1.97

25

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

26

WASHER This part replaces 08322-21068.

08322-01067

$2.13

27

HOSE, PUMP INLET (2)

15686-09310

Unavailable

28

CLAMP This part replaces 09401-12401.

09401-13417

$2.26

29

REGULATOR ASSY, FUEL

15760-09300

Unavailable

30

HEAT PROTECTOR (1)

15765-09300

Unavailable

31

HEAT PROTECTOR (2)

15766-09300

Unavailable

32

HEAT PROTECTOR (3)

15767-09300

Unavailable

33

BRACKET

15790-09310

Unavailable

34

SPACER

09180-06038

$1.98

35

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

36

BOLT This part replaces 01107-06208.

01500-06207

$2.28

37

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

38

HOSE

15670-09302

Unavailable

39

NUT, FIXED DRIVE FACE This part replaces 08310-22128.

09140-12039

$3.05

40

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

41

HOSE (L:800) | L:800-310

09343-03034

Unavailable

42

CLIP

09401-07301

Unavailable

43

INJECTOR ASSY, FUEL | Includes Item(s) 44 - 45

15700-09300

Unavailable

44

O RING

15710-09300

$3.71

45

GROMMET

15720-09300

$3.71

46

SEAL RING

15741-09300

Unavailable

47

HOLDER, INJECTOR

15750-09301

Unavailable

48

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47

49

GASKET

09168-14011

$1.85

50

PLUG

09247-14026

$3.76

51

UNION

09360-14004

Unavailable

52

GASKET

09168-12010

$3.07

53

COMPENSATOR ASSY, ALTITUDE

15770-09300

Unavailable

54

SCREW This part replaces 02112-06108.

02112-06107

$1.49

55

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

56

CLAMP This part replaces 09407-18301.

09407-18302

$2.28
