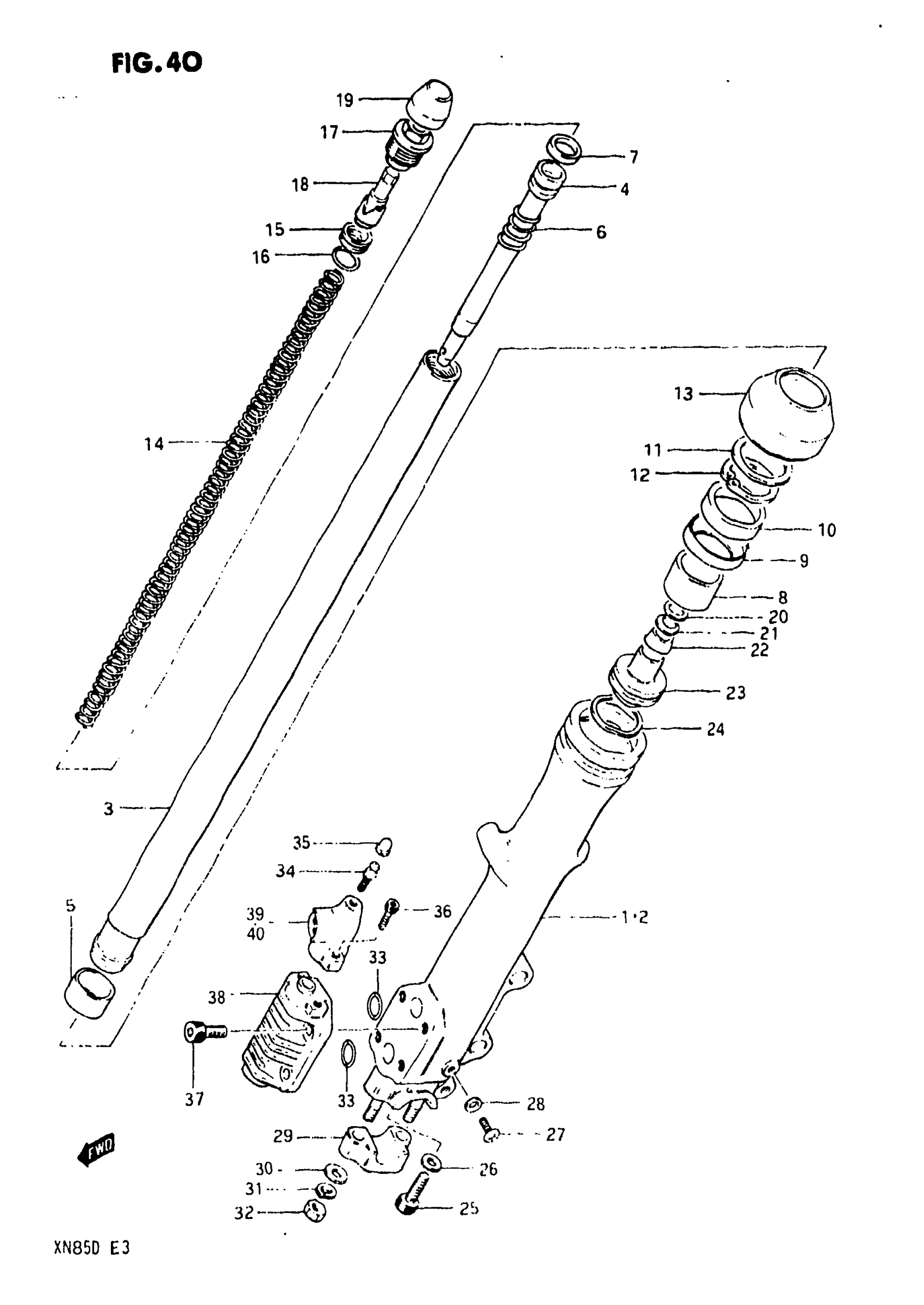

Suzuki XN85-D (1983) FRONT DAMPER Diagram

#

Description
Price

0

DAMPER ASSY, RH

51103-09310

Unavailable

0

DAMPER ASSY, LH | Includes Item(s) 1 - 40

51104-09310

Unavailable

1

OUTER TUBE RH

51130-09310

Unavailable

2

OUTER TUBE LH

51140-09310

Unavailable

3

INNER TUBE

51110-09310

Unavailable

4

CYLINDER

51146-09310

Unavailable

5

PISTON

51121-34210

Unavailable

6

SPRING REBOUND

51771-34210

Unavailable

7

RING PISTON

51196-34210

Unavailable

8

BUSH, GUIDE This part replaces 51152-34210.

51152-25D00

$17.61

9

SPACER, SEAL This part replaces 51168-34210.

51168-38A00

$6.72

10

SEAL, OIL This part replaces 51153-34210.

51153-03B30

$18.51

11

RING BACK UP

51158-34320

Unavailable

12

CIRCLIP INTERNAL

51556-34320

Unavailable

13

DUSTSEAL This part replaces 51571-45200.

51571-34320

Unavailable

14

SPRING

51171-09310

Unavailable

15

SEAT SPRING

51172-34300

Unavailable

16

O RING

51117-34210

Unavailable

17

BOLT

51351-34301

Unavailable

18

ADJUSTER SPRING

51185-45451

Unavailable

19

CAP

51189-45450

Unavailable

20

VALVE C

51126-34310

Unavailable

21

VALVE SPRING

51127-34310

Unavailable

22

OIL LOCK PIECE VALVE

51125-34310

Unavailable

23

PIECE, OIL LOCK This part replaces 51195-34320.

51195-34370

Unavailable

24

PISTON RING

51123-34320

Unavailable

25

BOLT

51147-48130

$4.34

26

O RING This part replaces 51148-31030.

51148-36011

$3.56

27

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

28

GASKET

51183-33030

Unavailable

29

AXLE HOLDER

51132-31030

Unavailable

30

WASHER This part replaces 08322-21088.

08322-01087

$2.13

31

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

32

NUT This part replaces 08310-12088.

08310-00087

$2.13

33

O-RING (D:2.4,ID:15.8) This part replaces 51799-11420.

09280-15007

$1.70

34

SCREW

51778-11420

Unavailable

35

BLEEDER CAP

51779-11420

Unavailable

36

BOLT This part replaces 51797-11420.

07130-05167

$3.15

37

BOLT This part replaces 51796-11420.

07130-06167

$3.16

38

MODULATOR VALVE SET

51700-09810

Unavailable

39

MODULATOR PLUNGER SET, RH

51700-09820

Unavailable

40

MODULATOR PLUNGER SET, LH

51700-09830

Unavailable
