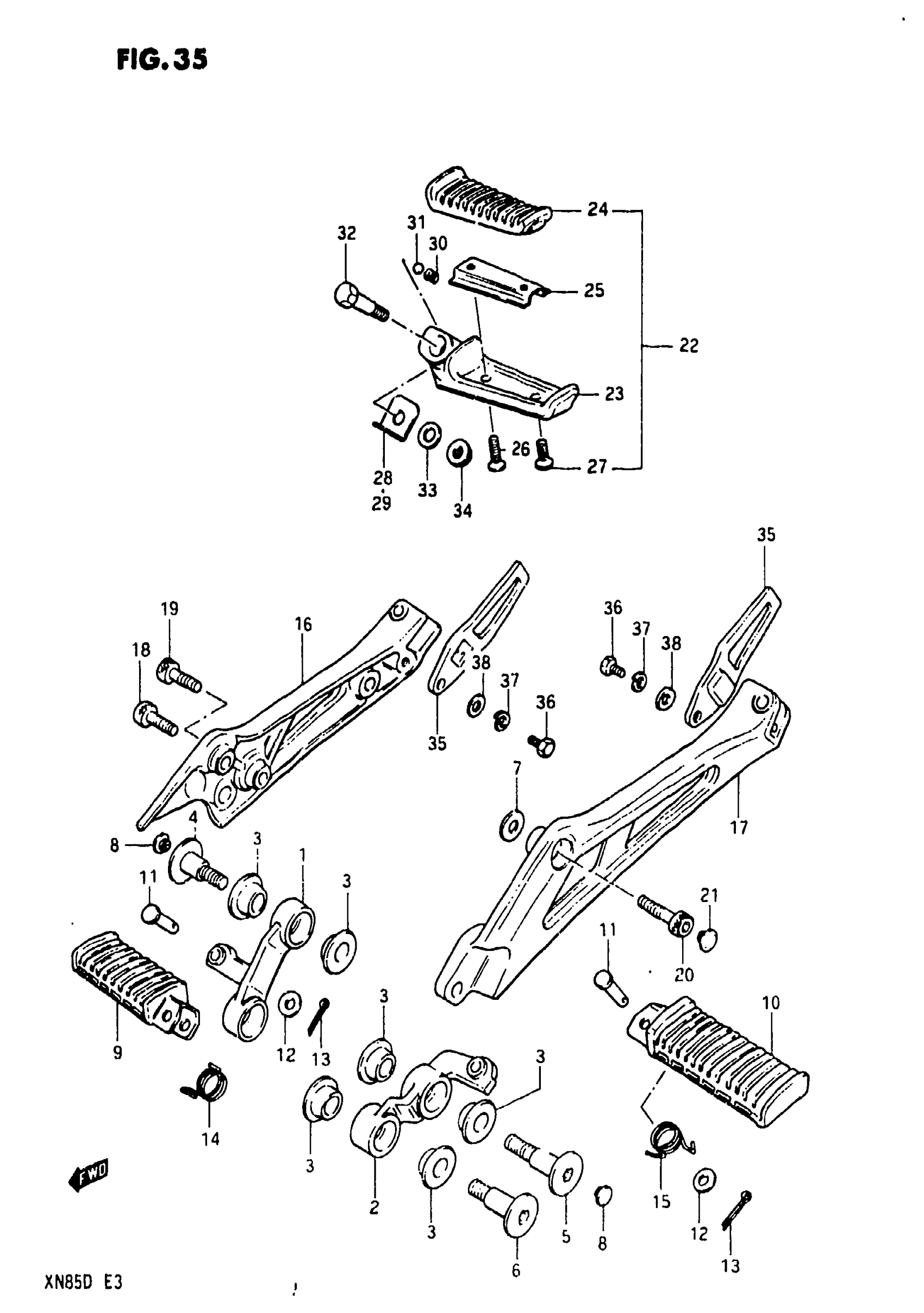

Suzuki XN85-D (1983) FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST RH

43511-09300

Unavailable

2

BAR, FOOTREST LH

43521-09300

Unavailable

3

CUSHION

09305-14004

Unavailable

4

BOLT, RH

09106-10005

Unavailable

5

BOLT, LH UPPER

09106-10004

Unavailable

6

BOLT, LH LOWER

09106-10005

Unavailable

7

WASHER, LH UPPER

09160-10035

$1.78

8

CAP

43575-34500

$1.72

9

RUBBER FR FOOTR This part replaces 43550-34500.

43550-34501

$54.32

10

RUBBER FR FOOTR This part replaces 43560-34500.

43560-34501

Unavailable

11

PIN

09200-08002

$2.05

12

WASHER This part replaces 08322-11088.

08322-01087

$2.13

13

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

14

SPRING, RH

09448-19016

Unavailable

15

SPRING, LH

09448-19017

Unavailable

16

BRACKET, MUFFLER RH

43811-09300

Unavailable

17

BRACKET, MUFFLER LH

43821-09300

Unavailable

18

BOLT This part replaces 09106-10003.

07130-10257

$4.60

19

BOLT, LOWER This part replaces 09106-10006.

07130-10307

$4.41

20

SCREW This part replaces 02132-05168.

02122-05167

$2.47

21

CAP

43575-34500

$1.72

22

FOOTREST ASSY, PILLION RH

43600-45501

Unavailable

22

FOOTREST ASSY, PILLION LH | Includes Item(s) 23 - 27

43700-45501

Unavailable

23

BAR, PILLION FOOTREST RH

43610-45501

Unavailable

23

BAR, PILLION FOOTREST LH

43710-45501

Unavailable

24

RUBBER, PILLION FOOTREST

43612-45500

Unavailable

25

PLATE, RUBBER STOP This part replaces 43632-45500.

43632-45501

$3.70

26

SCREW This part replaces 02132-05168.

02122-05167

$2.47

27

SCREW This part replaces 02132-05127.

02122-05127

$1.93

28

PLATE, SPRING STOP RH

43635-09300

Unavailable

29

PLATE, SPRING STOP LH

43735-09300

Unavailable

30

SPRING

09440-05003

$1.49

31

BALL

06111-07004

$1.49

32

BOLT

09111-06035

Unavailable

33

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

34

NUT This part replaces 08319-31068.

08319-31067

$2.03

35

FOOT GUARD, REAR This part replaces 43671-09300.

43671-09301

Unavailable

36

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

37

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

38

WASHER This part replaces 08322-21088.

08322-01087

$2.13
