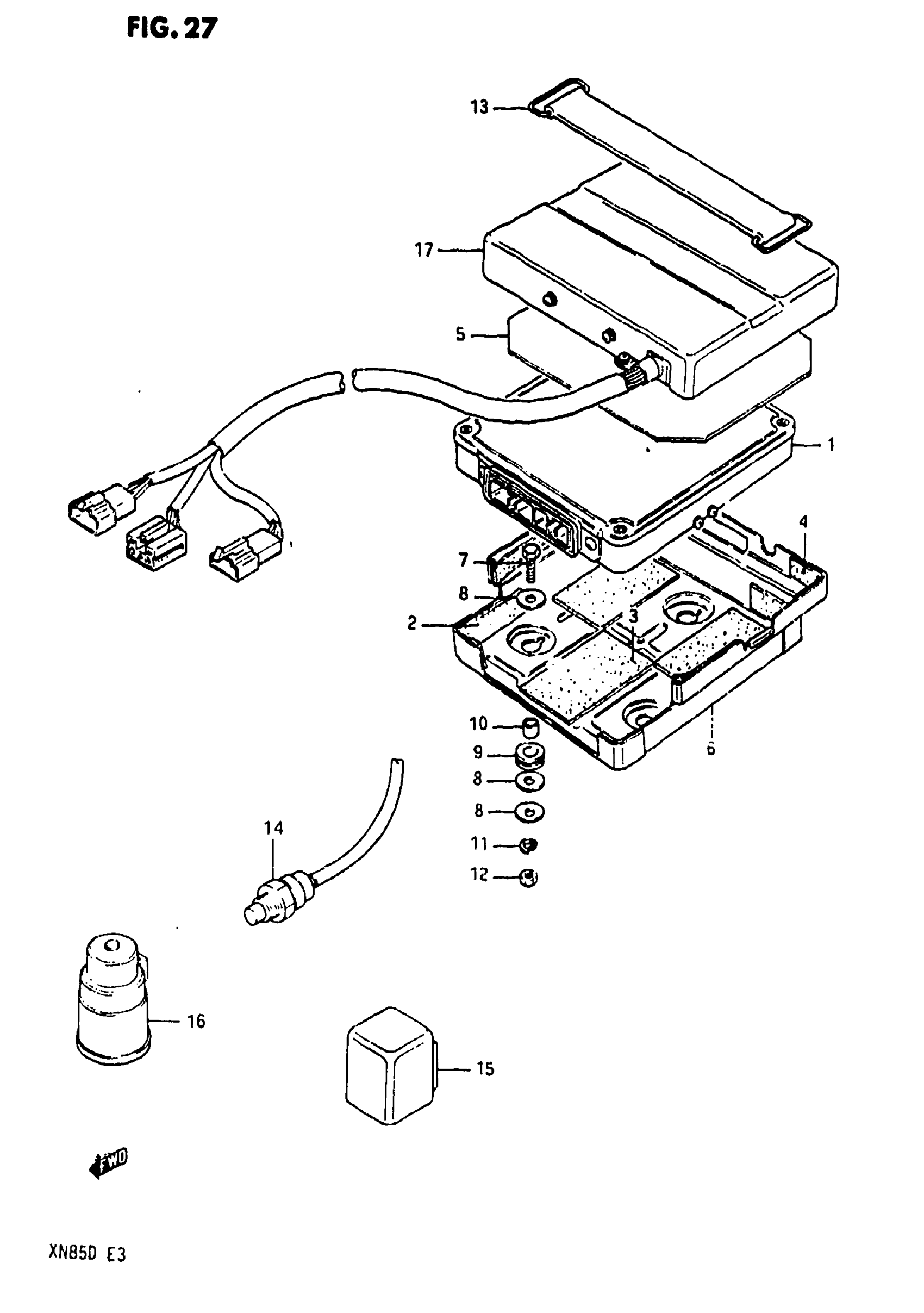

Suzuki XN85-D (1983) ELECTRONIC CONTROL Diagram

#

Description
Price

1

ELECTRONIC CONTROL UNIT, EFI

33900-09300

Unavailable

2

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.48

3

CUSHION, NO.2

33902-09310

Unavailable

4

CUSHION, NO.3

33902-09320

Unavailable

5

CUSHION, NO.5

33902-09300

Unavailable

6

HOLDER, UNIT

33901-09300

Unavailable

7

BOLT This part replaces 01107-06258.

01500-06257

$1.97

8

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

9

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

10

SPACER

09180-06038

$1.98

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

.NUT This part replaces 08310-11068.

08310-00067

$2.13

13

BAND

09462-00055

$6.09

14

SENSOR, ENGINE TENFERATURE

33920-09300

Unavailable

15

IDLE POSITION SENSOR

38730-09300

Unavailable

16

CIRCUIT OPENING RELAY

33950-09300

Unavailable

17

IGNITER UNIT, ESA

32900-09300

Unavailable
