Description

Price

1

RELAY, STARTING MOTOR

31800-10201

Unavailable

2

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

3

WASHER This part replaces 09160-06007.

09160-06084

$1.78

4

.NUT This part replaces 08310-22068.

08310-00067

$2.13

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

6

LEAD WIRE, STARTING MOTOR

33850-09310

Unavailable

7

CAP, STARTER MOTOR This part replaces 31861-35100.

31861-48B10

$6.55

8

RECTIFIER ASSY This part replaces 32800-09300.

32800-09301

Unavailable

9

SCREW This part replaces 02112-06208.

02112-06207

$1.78

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

COIL ASSY, IGNI This part replaces 33410-49210.

33410-31311

$161.13

12

COIL ASSY, IGNI This part replaces 33420-49210.

33410-31311

$161.13

13

.NUT This part replaces 08310-11068.

08310-00067

$2.13

14

CAP, SPARK PLUG (S)

33510-43010

$24.99

15

CAP, SPARK PLUG (L)

33510-45010

$24.99

16

SEAL, SPARK PLUG

33541-38210

$4.68

17

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

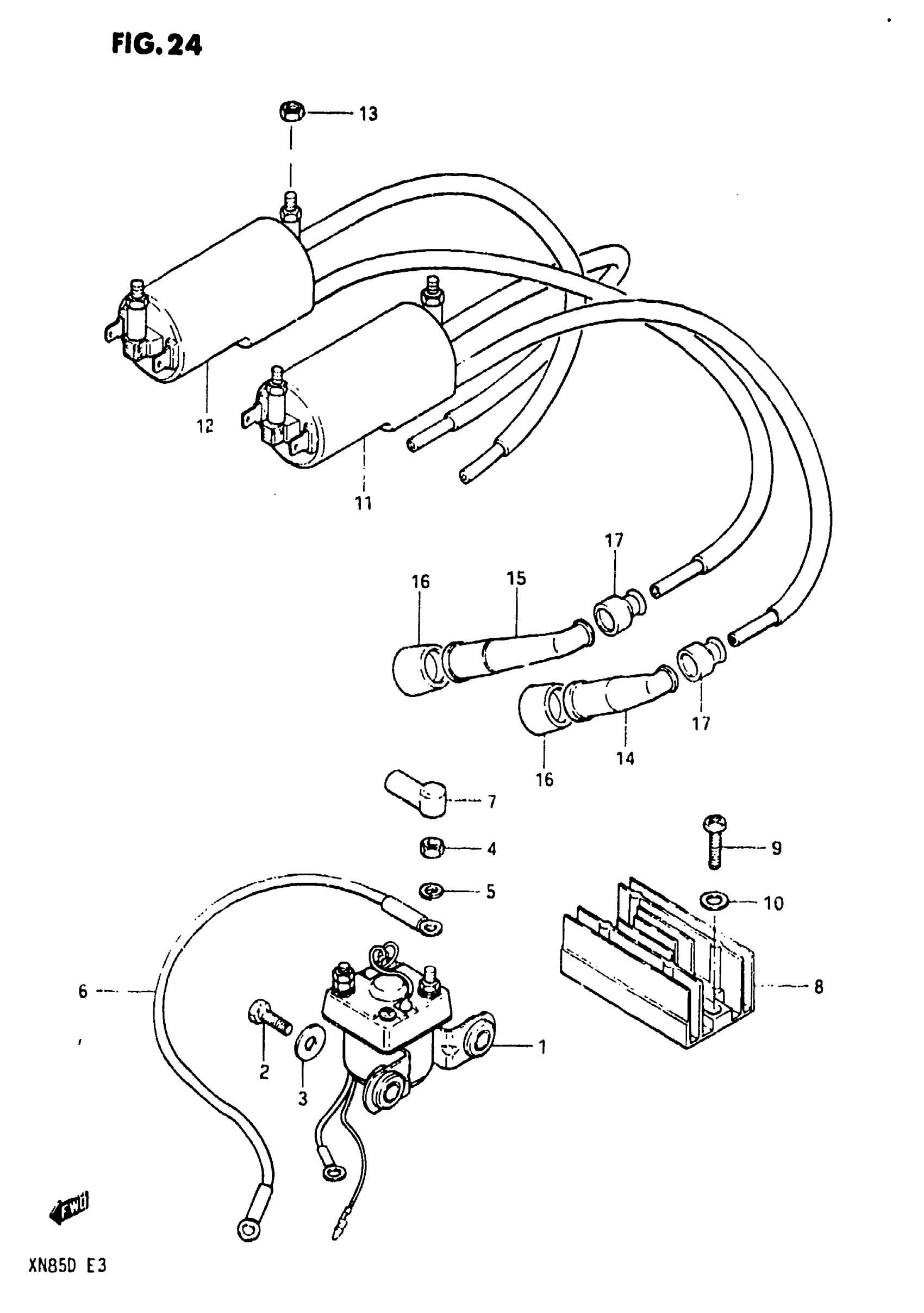

Suzuki XN85-D (1983) ELECTRICAL Diagram

RELAY, STARTING MOTOR

BOLT, CANISTER This part replaces 01107-06168.

WASHER This part replaces 09160-06007.

.NUT This part replaces 08310-22068.

LOCK WASHER This part replaces 08321-21068.

LEAD WIRE, STARTING MOTOR

CAP, STARTER MOTOR This part replaces 31861-35100.

RECTIFIER ASSY This part replaces 32800-09300.

SCREW This part replaces 02112-06208.

WASHER This part replaces 08322-21068.

COIL ASSY, IGNI This part replaces 33410-49210.

COIL ASSY, IGNI This part replaces 33420-49210.

.NUT This part replaces 08310-11068.

CAP, SPARK PLUG (S)

CAP, SPARK PLUG (L)

SEAL, SPARK PLUG

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.
