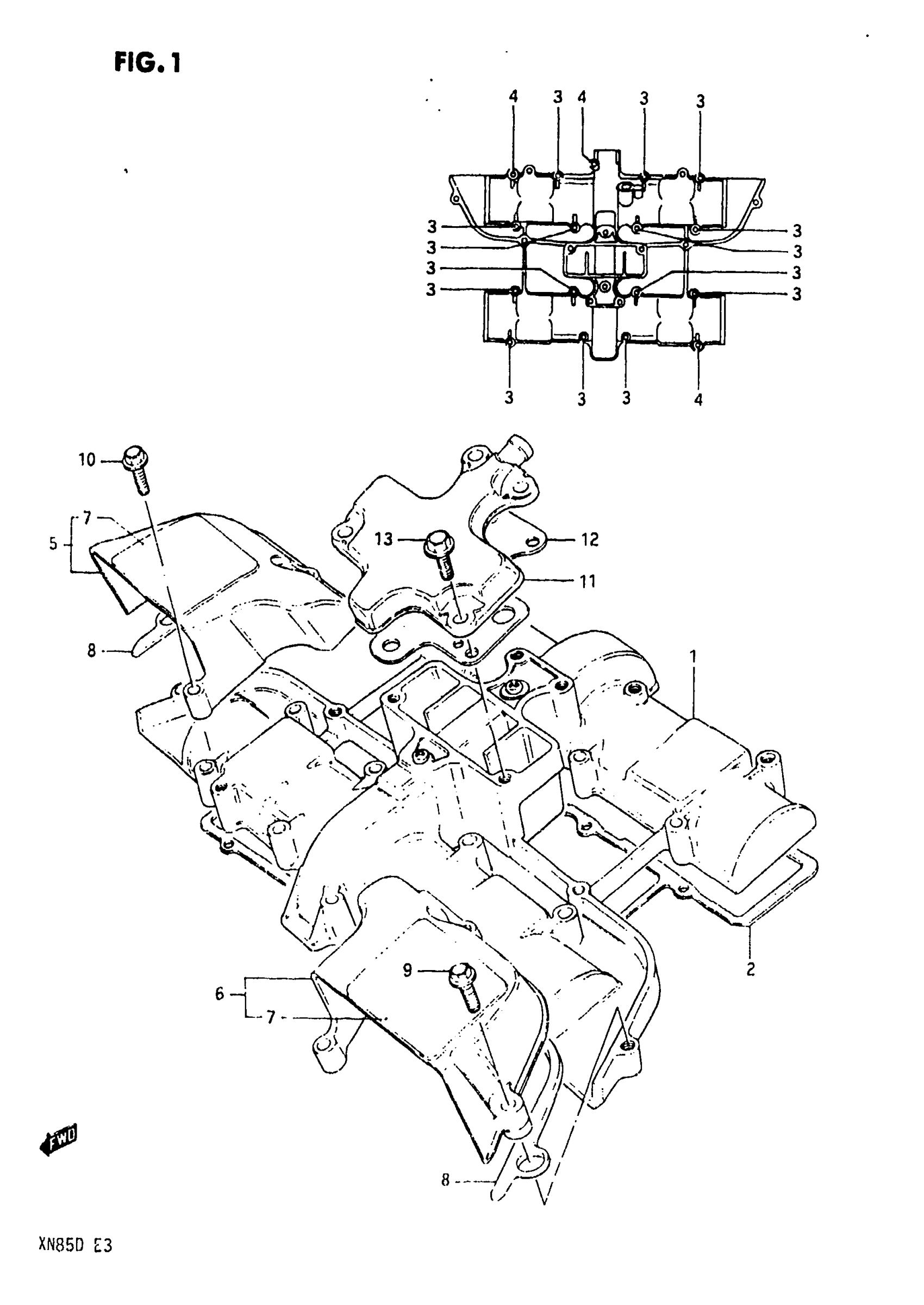

Suzuki XN85-D (1983) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

11171-09305

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 11173-09300.

11173-09300-H17

Unavailable

3

BOLT This part replaces 01517-06408.

01550-06407

$2.69

4

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

5

AIR GUIDE COVER SET, RH

11200-09841

Unavailable

6

AIR GUIDE COVER SET, LH | Includes Item(s) 7

11200-09851

Unavailable

7

RUBBER PAD

11274-09300

Unavailable

8

CUSHION

11273-09301

Unavailable

9

BOLT This part replaces 01517-06308.

01550-06307

$2.69

10

BOLT This part replaces 01517-06358.

01550-06357

$2.77

11

COVER, BREATHER This part replaces 11176-47012.

11176-47042

Unavailable

12

BREATHER CVR GA This part replaces 11177-47001.

11177-47001-H17

$14.97

13

BOLT This part replaces 01517-06208.

01550-06207

$2.30
