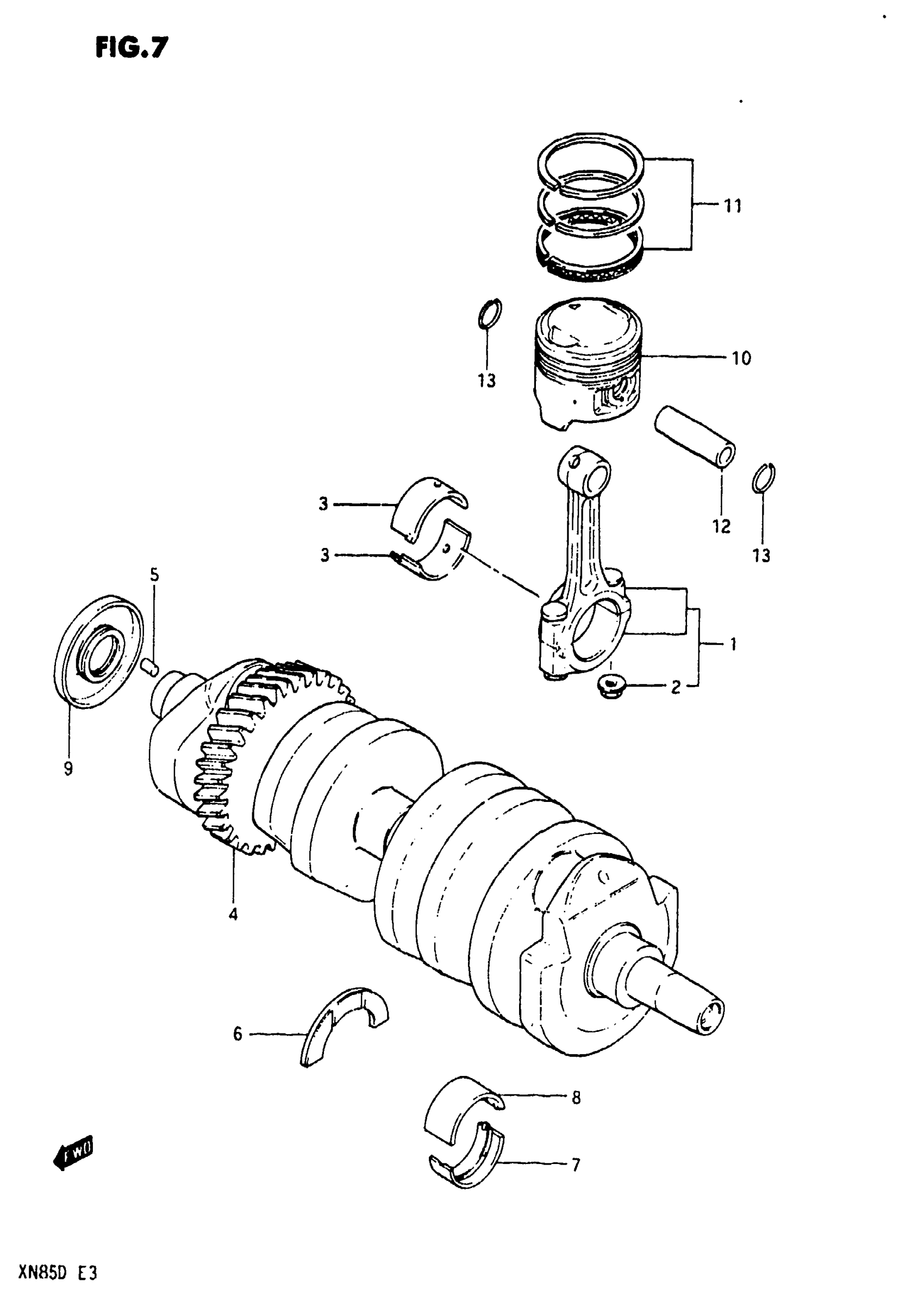

Suzuki XN85-D (1983) CRANKSHAFT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 12160-09302.

12160-09303

Unavailable

2

NUT

09159-08033

$3.50

3

BEARING, CRANKPIN (GREEN)

12164-09300-010

Unavailable

3

BEARING, CRANK PIN (BLACK) This part replaces 12164-09300-020.

12164-31E00-0B0

$19.55

3

BEARING, CRANK PIN (BROWN) This part replaces 12164-09300-030.

12164-31E00-0C0

$23.00

3

BEARING, CRANKPIN (YELLOW)

12164-09300-040

Unavailable

4

CRANKSHAFT | Includes Item(s) 5

12220-09301

Unavailable

5

PIN (4X13.8)

04221-04089

$1.49

6

BEARING, THRUST (RED)

12228-09301

Unavailable

6

BEARING, THRUST (GREEN)

12228-09302

Unavailable

6

BEARING, THRUST (BLACK)

12228-09303

Unavailable

7

BEARING, CRANKSHAFT (GREEN) | GREEN This part replaces 12229-09300-010.

12229-09301-0A0

Unavailable

7

BEARING, CRANKSHAFT (BLACK) | BLACK This part replaces 12229-09300-020.

12229-09301-0B0

Unavailable

7

BEARING, CRANKSHAFT (BROWN) | BROWN This part replaces 12229-09300-030.

12229-09301-0C0

Unavailable

7

BEARING, CRANKSHAFT (YELLOW) | YELLOW This part replaces 12229-09300-040.

12229-09301-0D0

Unavailable

8

BEARING, CRANKSHAFT (GREEN) | GREEN This part replaces 12229-09310-010.

12229-06B10-0A0

$12.00

8

BEARING, CRANKSHAFT (BLACK) | BLACK This part replaces 12229-09310-020.

12229-06B10-0B0

$10.21

8

BEARING, CRANKSHAFT (BROWN) | BROWN This part replaces 12229-09310-030.

12229-06B10-0C0

$10.21

8

BEARING, CRANKSHAFT (YELLOW) | YELLOW This part replaces 12229-09310-040.

12229-06B10-0D0

$12.45

9

OIL SEAL This part replaces 09283-30031.

09283-30048

Unavailable

10

PISTON (STD)

12111-09302

Unavailable

10

PISTON (OS:0.5) | OPT

12111-09302-050

Unavailable

10

PISTON (OS:1.0) | OPT

12111-09302-100

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 12140-09320.

12140-09321

Unavailable

11

NO DESCRIPTION AVAILABLE | OPT This part replaces 12140-09320-050.

12140-09321-050

Unavailable

11

NO DESCRIPTION AVAILABLE | OPT This part replaces 12140-09320-100.

12140-09321-100

Unavailable

12

PIN, PISTON This part replaces 12151-09301.

12151-29001

$13.92

13

SNAP RING This part replaces 09381-16002.

09381-16001

$1.67
