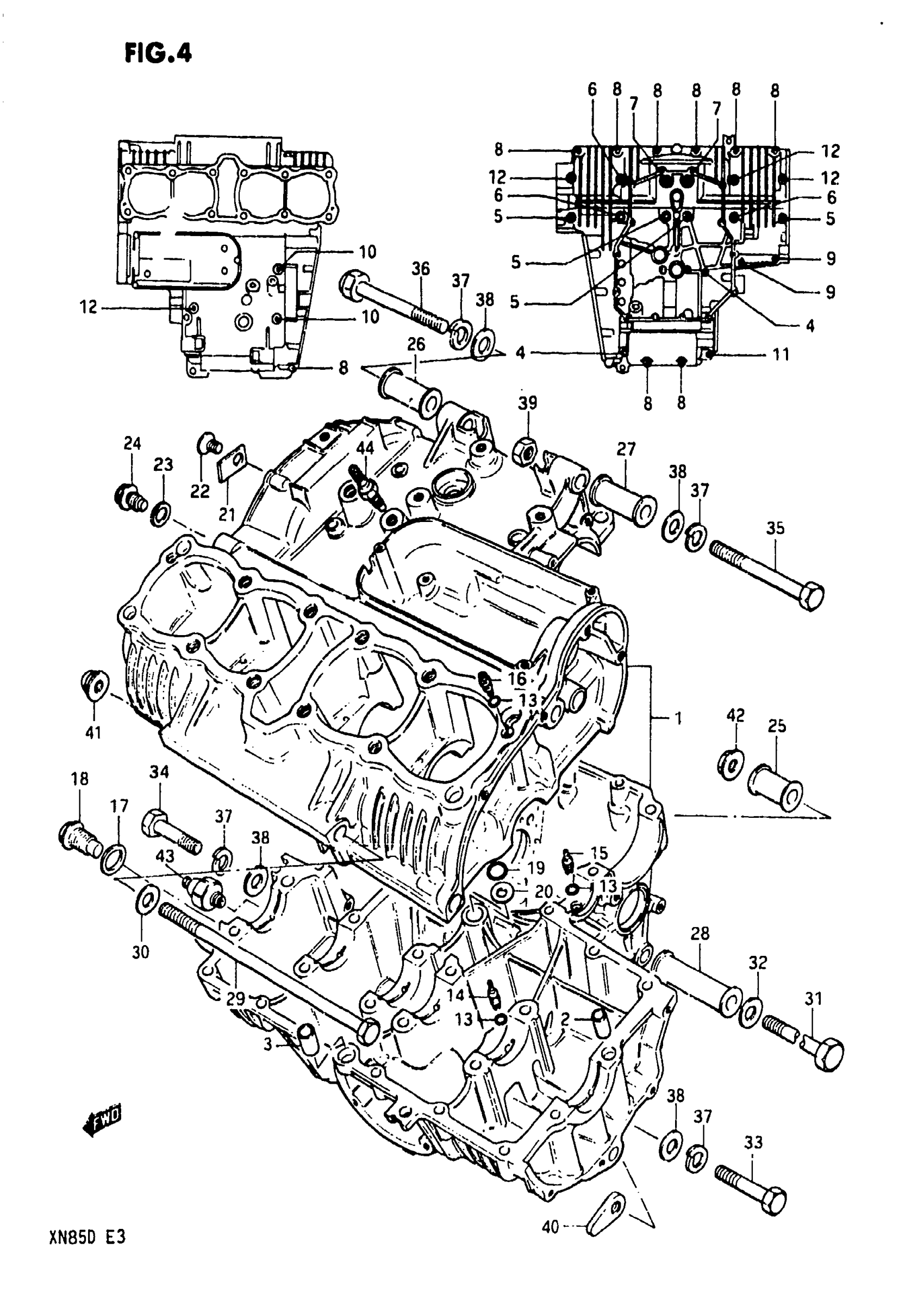

Suzuki XN85-D (1983) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 24 This part replaces 11300-09840.

11300-09843

Unavailable

2

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

3

PIN

09206-13004

$2.40

4

BOLT (6X105)

09103-06067

$2.48

5

BOLT (8X105) This part replaces 09103-08023.

09103-08097

$3.44

6

BOLT (8X120) This part replaces 09103-08026.

09103-08109

$3.18

7

BOLT This part replaces 09106-08012.

07130-0855B

$4.77

8

BOLT This part replaces 01517-06408.

01550-06407

$2.69

9

BOLT (6x85)

09103-06069

Unavailable

10

BOLT (6x90)

09103-06068

Unavailable

11

BOLT This part replaces 01517-08608.

01550-08607

$3.76

12

BOLT This part replaces 01517-08958.

01550-08957

$5.37

13

O RING, OIL GALLERY JET This part replaces 09280-04002.

09280-04004

$1.91

14

JET, OIL GALLERY PISTON

09493-20013

Unavailable

15

JET,T/M OIL GALLERY

09493-20014

$16.87

16

JET, OIL GALLERY CYLINDER

09493-24009

Unavailable

17

GASKET

09168-16002

$1.91

18

PLUG, OIL GALLERY

09247-16003

Unavailable

19

O RING

09280-13001

$2.72

20

WASHER, CLUTCH RELEASE This part replaces 08211-10201.

09181-10195

$1.99

21

PLATE, OIL GALLERY PLUG

11319-34200

Unavailable

22

SCREW This part replaces 02122-06168.

02122-06167

$1.49

23

GASKET

09168-14004

$1.83

24

PLUG,OIL GALLER This part replaces 09247-14017.

09247-14038

Unavailable

25

SPACER (L : 36)

11610-32400

Unavailable

26

SPACER (L : 45)

11610-44100

Unavailable

27

SPACER (L:50) This part replaces 11610-45000.

11610-44010

Unavailable

28

SPACER (L : 65)

11610-49300

$18.02

29

BOLT (10X200) This part replaces 09100-10111.

09103-10138

Unavailable

30

WASHER This part replaces 08322-11108.

08322-01107

$2.15

31

BOLT (10x352)

09104-10020

Unavailable

32

WASHER, KNUCKLE END This part replaces 08322-11105.

08322-0110A

$1.84

33

BOLT This part replaces 01107-10458.

01500-1045A

$3.04

34

BOLT This part replaces 01107-10408.

01500-10407

$3.55

35

BOLT This part replaces 01107-10958.

01500-1095B

Unavailable

36

BOLT (10x95)

09104-10019

Unavailable

37

LOCK WASHER This part replaces 08321-31105.

08321-0110A

$1.84

38

WASHER, KNUCKLE END This part replaces 08322-11105.

08322-0110A

$1.84

39

NUT This part replaces 09140-10003.

09140-10041

$2.38

40

NUT

09159-10020

$5.18

41

NUT This part replaces 09159-10039.

09159-10064

$10.08

42

NUT This part replaces 09159-10041.

09159-10064

$10.08

43

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33200.

37820-33D11

$25.13

44

GAUGE ASSY, OIL TEMP.

34870-09300

Unavailable
