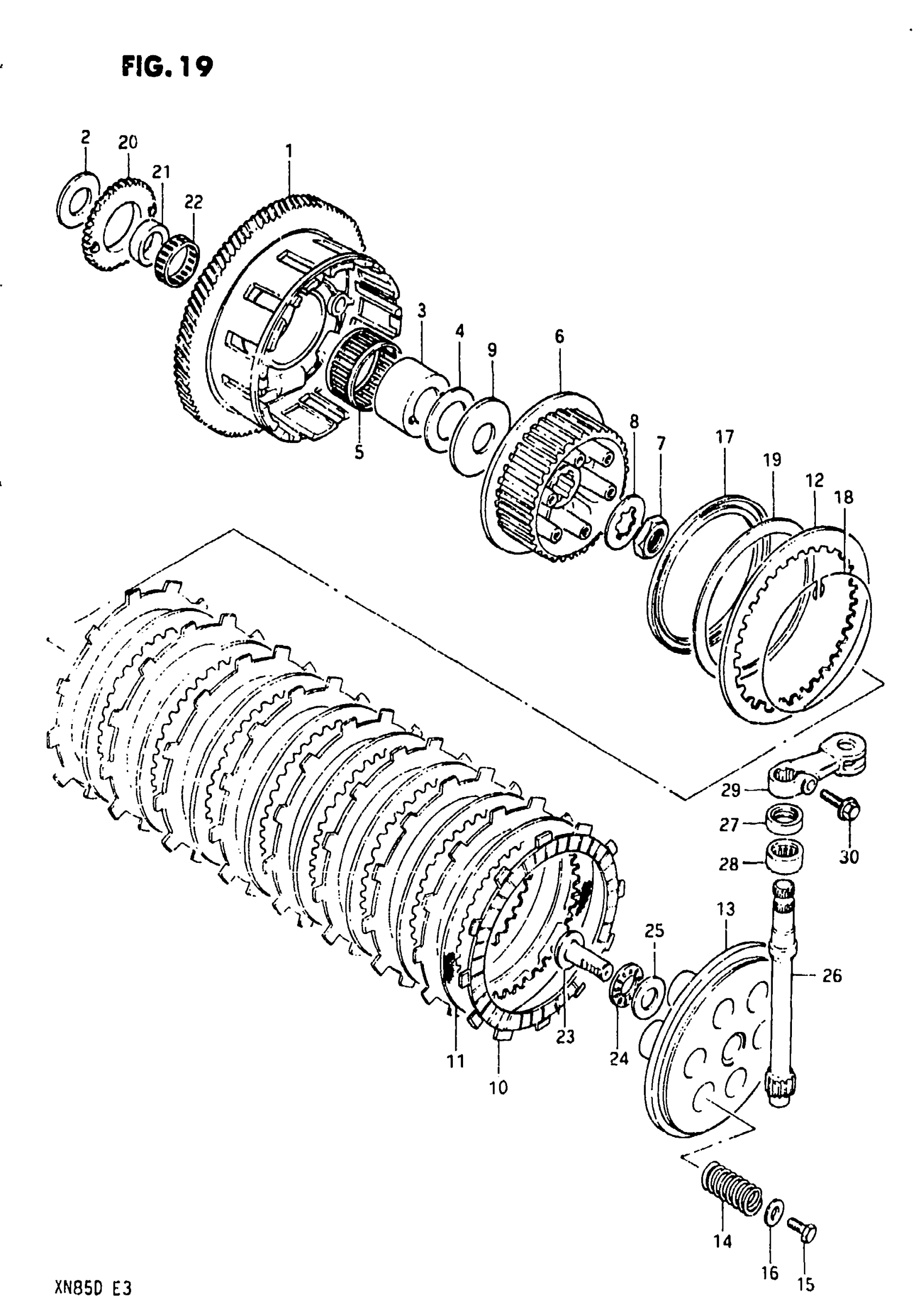

Suzuki XN85-D (1983) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:90)

21200-34201

Unavailable

2

WASHER

09160-25044

Unavailable

3

SPACER

21251-09300

Unavailable

4

SHIM (T:1.00)

21261-09300

Unavailable

4

SHIM (T:1.05)

21262-09300

Unavailable

4

SHIM (T:1.10)

21263-09300

Unavailable

4

SHIM (T:1.15)

21264-09300

Unavailable

4

SHIM (T:1.20)

21265-09300

Unavailable

5

BEARING This part replaces 09263-51001.

09263-51002

$44.23

6

HUB, SLEEVE

21411-45100

Unavailable

7

NUT, PIVOT RH This part replaces 09140-24004.

09140-24007

$3.89

8

WASHER

09167-25007

Unavailable

9

WASHER

09160-25022

Unavailable

10

PLATE, DRIVE This part replaces 21441-09300.

21441-45100

Unavailable

11

PLATE,CLUTCH DRIVEN (T:1.6) This part replaces 21451-45000.

21451-28C31

$11.81

12

PLATE, DRIVEN

21451-31000

$10.40

13

DISK, PRESSURE

21462-09300

Unavailable

14

SPRING This part replaces 09440-19013.

09440-19027

$5.10

15

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

16

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

17

SEAT, WAVE WASHER

21471-45101

Unavailable

18

RING, STOPPER

21481-45100

$5.80

19

WAVE WASHER

09164-00003

$12.67

20

GEAR, OIL PUMP DRIVE (NT:34)

16321-49000

Unavailable

21

SPACER

16325-45001

Unavailable

22

BEARING

09263-36002

Unavailable

23

RACK, RELEASE

23165-49000

Unavailable

24

BEARING

09263-15003

$8.29

25

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

26

PINION, RELEASE

23261-09300

Unavailable

27

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

28

BEARING

09263-15012

$15.48

29

NO DESCRIPTION AVAILABLE This part replaces 23271-34200.

23271-34201

Unavailable

30

BOLT This part replaces 01547-06208.

01547-06207

$2.01
