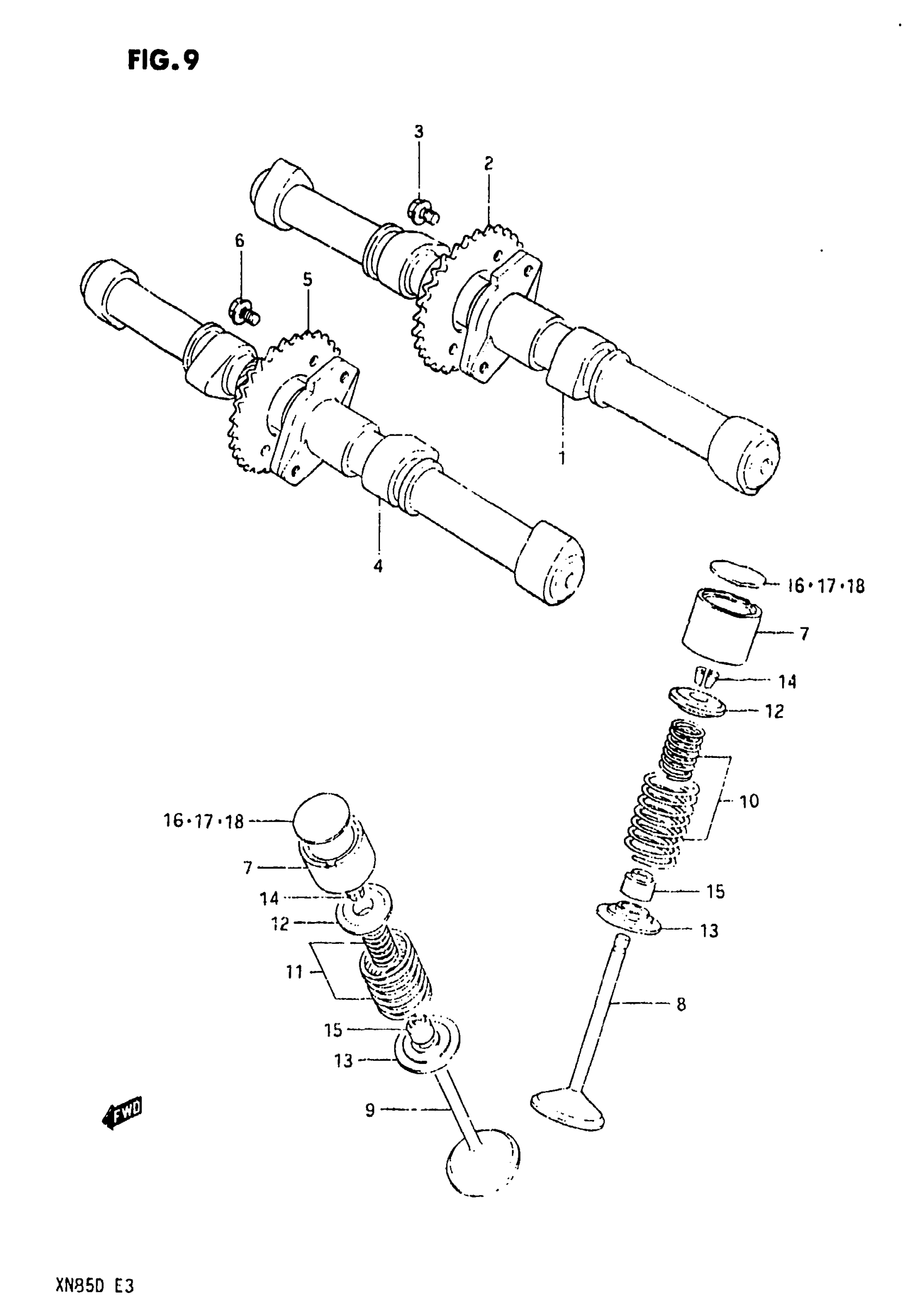

Suzuki XN85-D (1983) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE

12711-34202

Unavailable

2

SPROCKET, IN. CAM SHAFT

12741-34201

Unavailable

3

BOLT

09103-07001

$2.43

4

CAM SHAFT, EXHAUST

12721-34202

Unavailable

5

SPROCKET, EX. CAM SHAFT

12751-34202

Unavailable

6

BOLT

09103-07001

$2.43

7

TAPPET

12891-09300

Unavailable

8

VALVE, INTAKE This part replaces 12911-34200.

12911-34210

$42.94

9

VALVE, EXHAUST

12912-34203

Unavailable

10

SPRING SET, VALVE This part replaces 12920-34200.

12920-44110

$16.87

11

SPRING SET, EX. VALVE

12920-34210

Unavailable

12

RETAINER, VALVE SPRING This part replaces 12931-45000.

12931-45001

$8.12

13

SEAT, SPRING

12933-45001

$6.27

14

COTTER, VALVE

12932-45010

$2.37

15

OIL SEAL

09289-07002

$7.98

16

SHIM, TAPPET (T:2.15) This part replaces 12892-45000.

12892-45000-215

$21.65

16

SHIM, TAPPET (T:2.20) This part replaces 12892-45001.

12892-45000-220

$21.65

16

SHIM, TAPPET (T:2.25) This part replaces 12892-45002.

12892-45000-225

$21.65

16

SHIM, TAPPET (T:2.30) This part replaces 12892-45003.

12892-45000-230

$21.65

16

SHIM, TAPPET (T:2.35) This part replaces 12892-45004.

12892-45000-235

$21.65

16

SHIM, TAPPET (T:2.40) This part replaces 12892-45005.

12892-45000-240

$21.65

16

SHIM, TAPPET (T:2.45) This part replaces 12892-45006.

12892-45000-245

$20.88

16

SHIM, TAPPET (T:2.50) This part replaces 12892-45007.

12892-45000-250

$20.88

16

SHIM, TAPPET (T:2.55) This part replaces 12892-45008.

12892-45000-255

$20.88

17

SHIM, TAPPET (T:2.60) This part replaces 12892-45009.

12892-45000-260

$17.42

17

SHIM, TAPPET (T:2.65) This part replaces 12892-45010.

12892-45000-265

$17.75

17

SHIM, TAPPET (T:2.70) This part replaces 12892-45011.

12892-45000-270

$17.75

17

SHIM, TAPPET (T:2.75) This part replaces 12892-45012.

12892-45000-275

$21.65

17

SHIM, TAPPET (T:2.80) This part replaces 12892-45013.

12892-45000-280

$17.75

17

SHIM, TAPPET (T:2.85) This part replaces 12892-45014.

12892-45000-285

$21.65

17

SHIM, TAPPET (T:2.90) This part replaces 12892-45015.

12892-45000-290

$21.65

17

SHIM, TAPPET (T:2.95) This part replaces 12892-45016.

12892-45000-295

$21.65

17

SHIM, TAPPET (T:3.00) This part replaces 12892-45017.

12892-45000-300

Unavailable

18

SHIM, TAPPET (T:3.05) This part replaces 12892-45018.

12892-45000-305

$21.65

18

SHIM, TAPPET (T:3.10) This part replaces 12892-45019.

12892-45000-310

$21.65

19

SHIM SET | NOT SHOWN; Includes Item(s) 20 This part replaces 12800-45810.

12800-45811

Unavailable

20

CASE, TAPPET SHIM | NOT SHOWN This part replaces 99000-69480.

99000-69521

Unavailable
