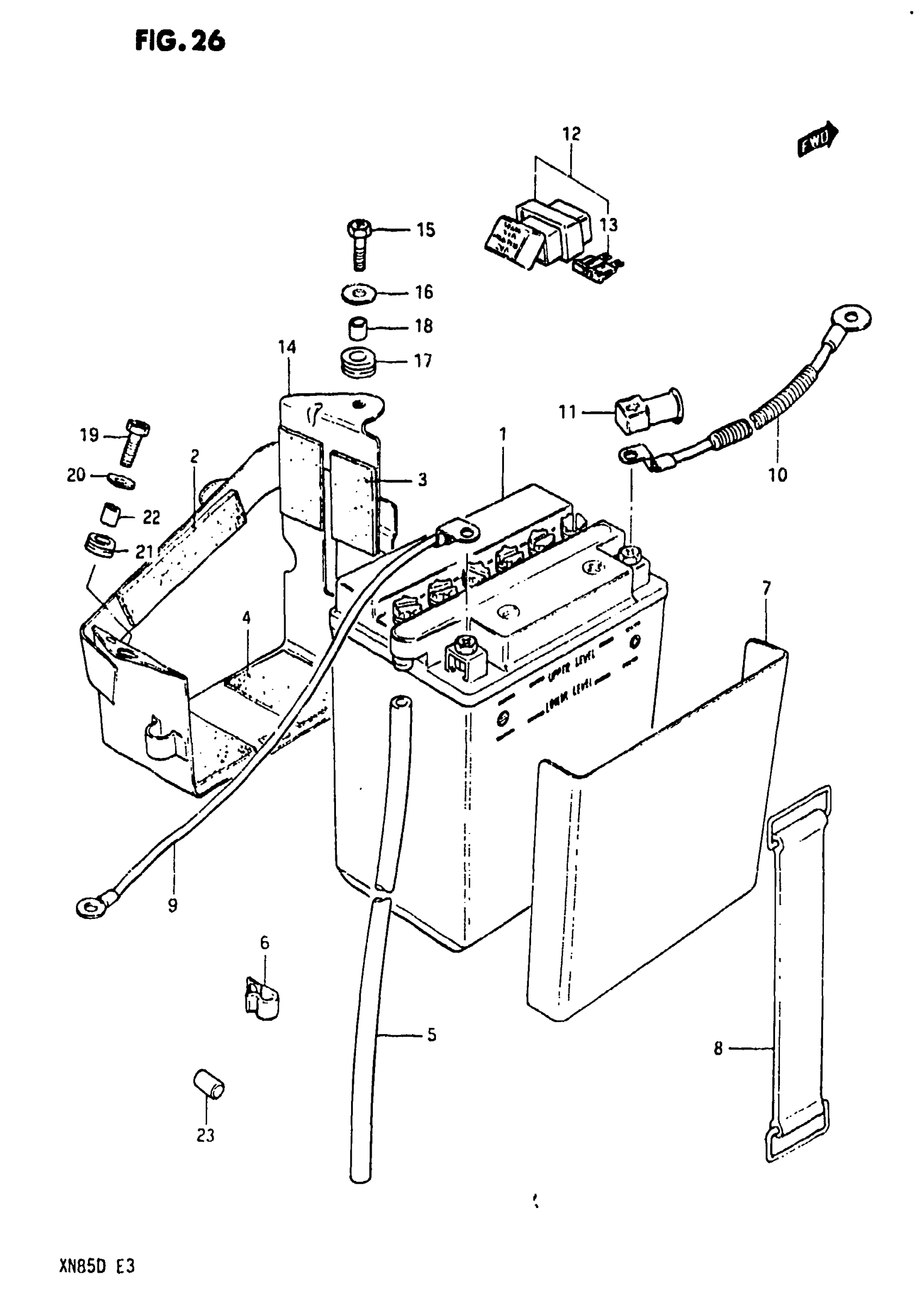

Suzuki XN85-D (1983) BATTERY Diagram

#

Description
Price

1

BATTERY (12V,14AH)

33610-49210

Unavailable

2

PROTECTOR

33652-49000

$3.58

3

PROTECTOR | TO 33651-37000

33652-36000

$2.30

4

CUSHION, REAR FENDER REAR This part replaces 33652-08410.

33651-37000

$4.48

5

HOSE,BATTERY EX This part replaces 33680-31003.

33680-16A11

$6.78

6

CLAMP This part replaces 09403-09303.

09403-09003

$2.20

7

COVER, BATTERY

33661-34200

Unavailable

8

BAND

09462-00009

$7.63

9

LEAD WIRE, (-)

33850-09300

Unavailable

10

LEAD WIRE, (+)

33820-09300

Unavailable

11

CAP, TERMINAL

33624-09300

Unavailable

12

BOX ASSY, MAIN FUSE | Includes Item(s) 13 This part replaces 36740-09300.

36740-24B01

$28.18

13

FUSE (20A)

09481-20101

$2.12

14

HOLDER, BATTERY

41540-09300

Unavailable

15

SCREW This part replaces 09128-06002.

02162-0616B

$2.03

16

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

17

CUSHION

09320-08018

$3.04

18

SPACER

09180-06092

$3.42

19

SCREW This part replaces 09128-06002.

02162-0616B

$2.03

20

WASHER This part replaces 09160-06007.

09160-06084

$1.78

21

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

22

SPACER

09180-06038

$1.98

23

CUSHION

09329-05006

$2.38
