SUSPENSION - 099ET6AS(A) (4948384838b013)

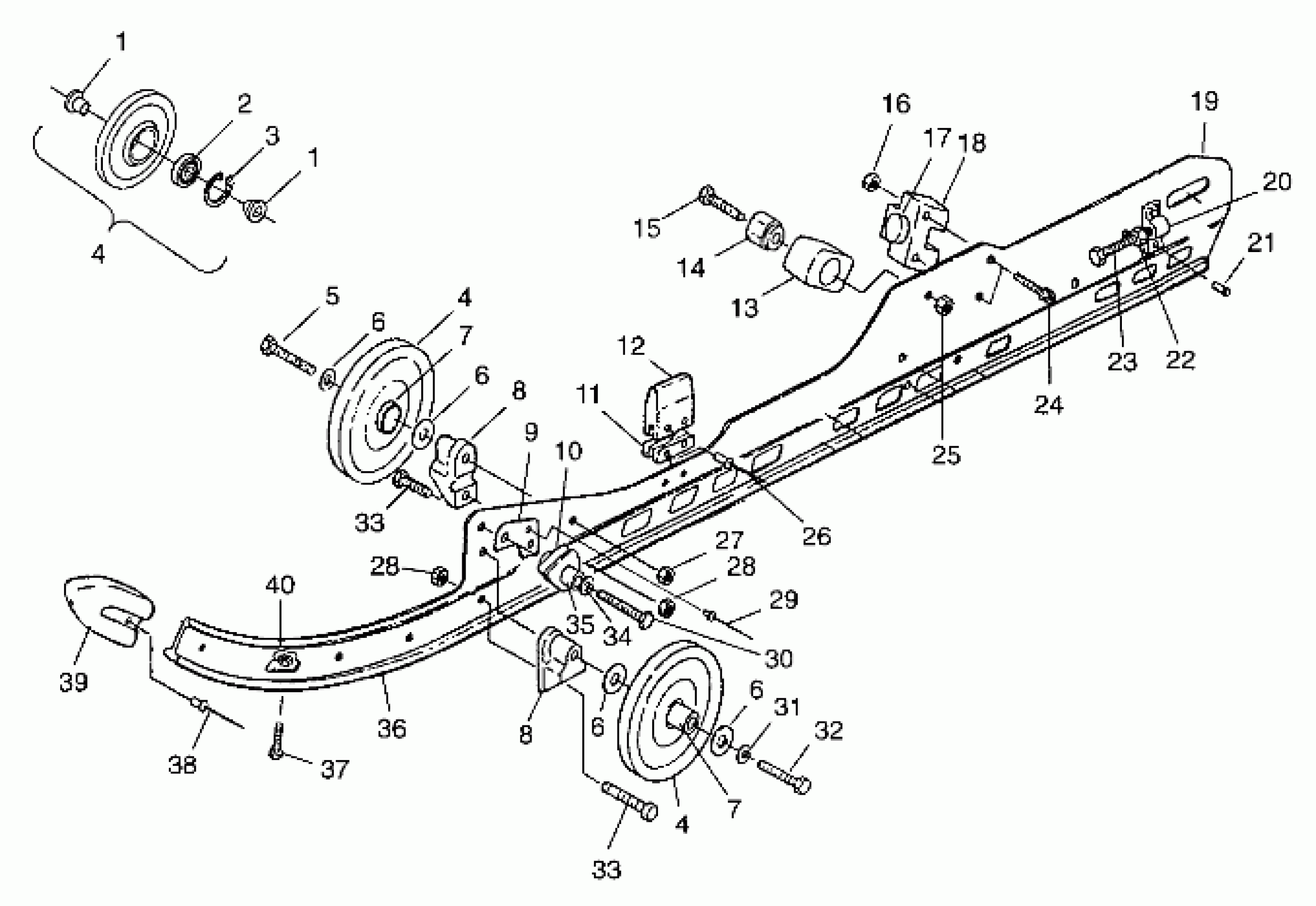

Polaris XLT TOURING - 099ET6AS SUSPENSION - 099ET6AS(A) (4948384838b013) Diagram
#
1
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
1
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
2
BEARING (1 per Wheel)
3514303
$11.99
3
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
4
WHEEL, IDLER (Incl. 1-3)
1543018
$56.65
4
WHEEL, IDLER (Incl. 1-3)
1543018
$56.65
4
WHEEL, IDLER (Incl. 1-3)
1543018
$56.65
5
BOLT(10)
7512538
$6.39
6
WASHER, FLAT(10)
7555852
$2.39
6
WASHER, FLAT(10)
7555852
$2.39
6
WASHER, FLAT(10)
7555852
$2.39
6
WASHER, FLAT(10)
7555852
$2.39
7
SPACER, WHEEL
5333116
$7.99
7
SPACER, WHEEL
5333116
$7.99
8
SPACER
5630399
$11.99
8
SPACER
5630399
$11.99
9
PLATE,RAIL SUPPORT
5211786
$5.95
10
BLOCK,SPRING SLIDER
5431924
$10.65
11
BRKT,BUMPER SUPPORT
5240946
Unavailable
12
BUMPER,JOUNCE,RAIL,LT
5811065
Unavailable
13
BUMPER,F.PIVOT ARM
5410925
$12.94
14
MOUNT,F.BUMPER PIVOT ARM
5131113
$28.32
15
BOLT,(10)
7515545
$5.59
16
NUT, LOCK(10)
7542103
$5.59
17
BUMPER,R.PIVOT ARM
5411041
$11.59
18
BLOCK,R.PIVOT ARM STOP
5131111
Unavailable
19
RAIL ASM,LH,(XTRA SKS) Substituted by 1541438 (Incl. 11,12,20,21,26,38,39)
1540943
Unavailable
19
RAIL ASM,RH,(XTRA SKS) Substituted by 1541439 (Incl.11,12,20,21,26,38,39)
1540944
Unavailable
20
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
21
RIVET,(50)
7621501
$2.39
22
NUT,TENSIONER ADJ.
5020943
$20.22
23
BOLT, ADJUSTER(10)
7515455
$29.99
24
SCREW(10)
7515156
$3.99
25
NUT LOCK(10)
7542411
$3.19
26
RIVET,(50)
7621488
$3.99
27
NUT, NYLOCK(10)
7542525
$4.79
28
NUT-LOCK(10)
7542439
$1.49
28
NUT-LOCK(10)
7542439
$1.49
29
RIVET(50)
7661845
$1.49
30
BOLT(10)
7515538
$6.39
31
WASHER LOCK(10)
7553101
$3.99
32
BOLT(10)
7512508
$7.19
33
BOLT(10)
7512404
$3.99
33
BOLT(10)
7512404
$3.99
34
WASHER ,(10)
7555976
$3.99
35
Bushing
5010332
$11.99
36
SLIDER,WHI.,(2)
5521452
$40.46
37
BOLT(10)
7515175
$3.99
38
RIVET(50)
7621435
$1.49
39
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
40
NUT-LOCK(10)
7542122
$1.49
