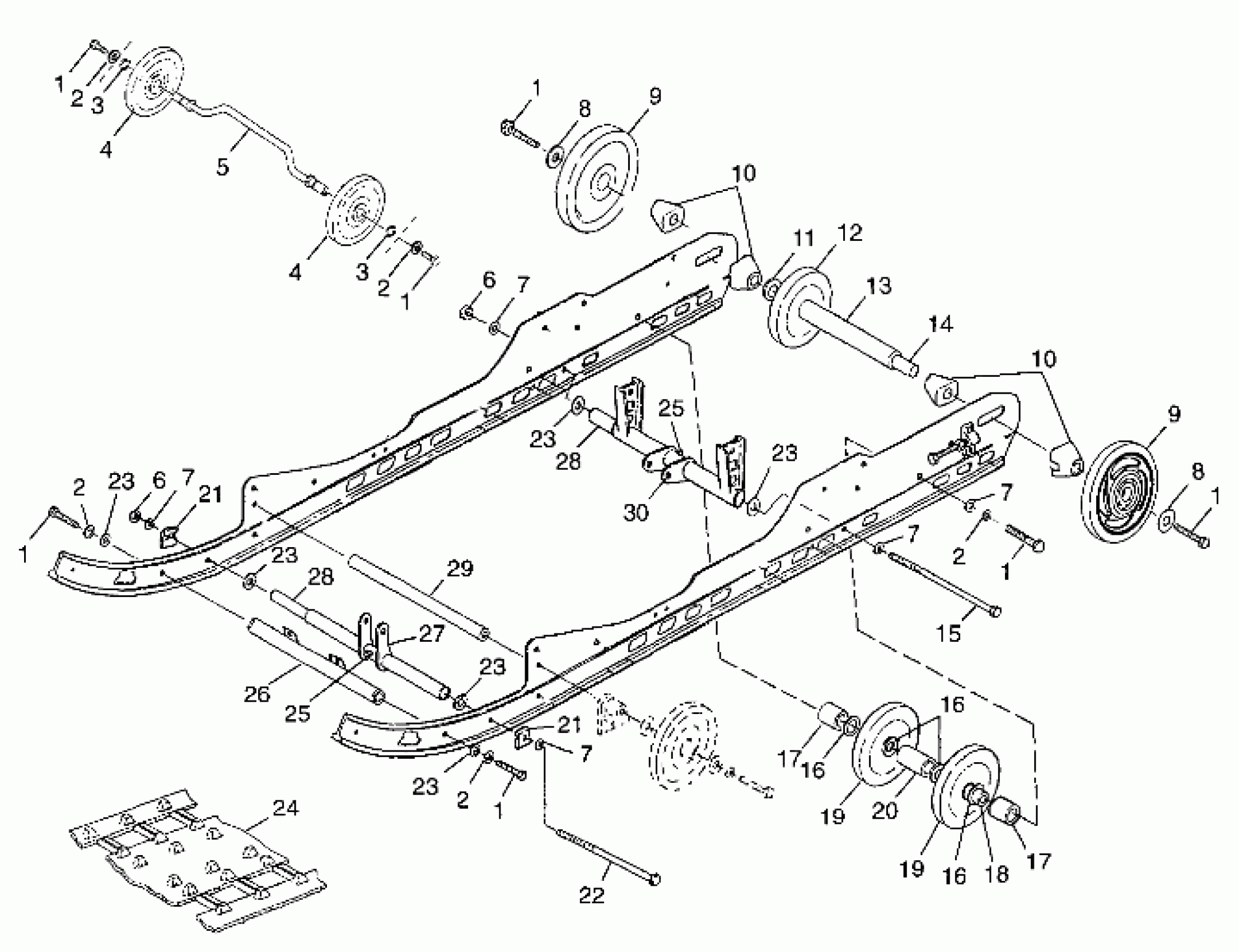

Polaris XLT TOURING - 099ET6AS SUSPENSION - 099ET6AS(A) (4948384838b012) Diagram

#

Description
Price

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

3

RING,RETAINING(10)

7710439

$3.99

3

RING,RETAINING(10)

7710439

$3.99

4

Wheel, Bogie

1594067

$44.51

4

Wheel, Bogie

1594067

$44.51

5

TENSIONER,SHAFT,BLK.

1541025-067

Unavailable

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

7

WASHER(10)

7555806

$1.49

7

WASHER(10)

7555806

$1.49

7

WASHER(10)

7555806

$1.49

7

WASHER(10)

7555806

$1.49

7

WASHER(10)

7555806

$1.49

8

WASHER(10) Substituted by 7556130

7571629

Unavailable

8

WASHER(10) Substituted by 7556130

7571629

Unavailable

9

WHEEL,IDLER,SCRL,M.BLUE (099ET6AS)

1594083-107

Unavailable

9

WHEEL,IDLER,SCRL.GLD.MET. (099ET6ASA)

1594083-227

$72.84

9

WHEEL,IDLER,SCRL,M.BLUE (099ET6AS)

1594083-107

Unavailable

9

WHEEL,IDLER,SCRL.GLD.MET. (099ET6ASA)

1594083-227

$72.84

10

SPACER-IDLER

5432535

$11.99

10

SPACER-IDLER

5432535

$11.99

11

BUSHING(10)

7555918

$1.59

12

DESC NOT_AVAILABLE

1594087-070

Unavailable

13

SPACER-IDLER, LONG

5333285

$11.99

14

SHAFT,IDLER

5020744

$59.99

15

Screw

7517353

Unavailable

16

MACHINERY BUSHING(10)

7556301

$3.19

16

MACHINERY BUSHING(10)

7556301

$3.19

16

MACHINERY BUSHING(10)

7556301

$3.19

17

SPACER, OUTER

5332784

Unavailable

17

SPACER, OUTER

5332784

Unavailable

18

SHAFT-PIVOT ARM Substituted by 5020724

5020415

$29.99

19

Asm., Wheel, Bogie (See Footnote) (See Suspension Pg. B13, Ref. 4)

-------

Unavailable

19

Asm., Wheel, Bogie (See Footnote) (See Suspension Pg. B13, Ref. 4)

-------

Unavailable

20

TUBE, SUSPENSION

5332783

Unavailable

21

BOSS,BOLT HEAD

5131112

$19.99

21

BOSS,BOLT HEAD

5131112

$19.99

22

SCREW,(10)

7517380

$15.03

23

WASHER(10)

7555893

$1.49

23

WASHER(10)

7555893

$1.49

23

WASHER(10)

7555893

$1.49

23

WASHER(10)

7555893

$1.49

23

WASHER(10)

7555893

$1.49

23

WASHER(10)

7555893

$1.49

24

TRACK,133"X.82(MOD.L'TNG) Substituted by 5411687

5411091

Unavailable

24

Clip, Slide

5241473

Unavailable

24

Clip, Guide

5241474

Unavailable

25

ZERK,FITTING,THREADED(10)

7080433

$1.49

25

ZERK,FITTING,THREADED(10)

7080433

$1.49

26

SHAFT,LIMITER STRAP,BLK.

1012267-067

Unavailable

27

ARM,SHOCK PIVOT

1540968-067

$49.59

28

SHAFT

5333404

$24.27

28

SHAFT

5333404

$24.27

29

SHAFT,R.SHOCK BRKT.

5020649

Unavailable

30

ARM,R.PIVOT,X12,BLK

1541141-067

$113.99
