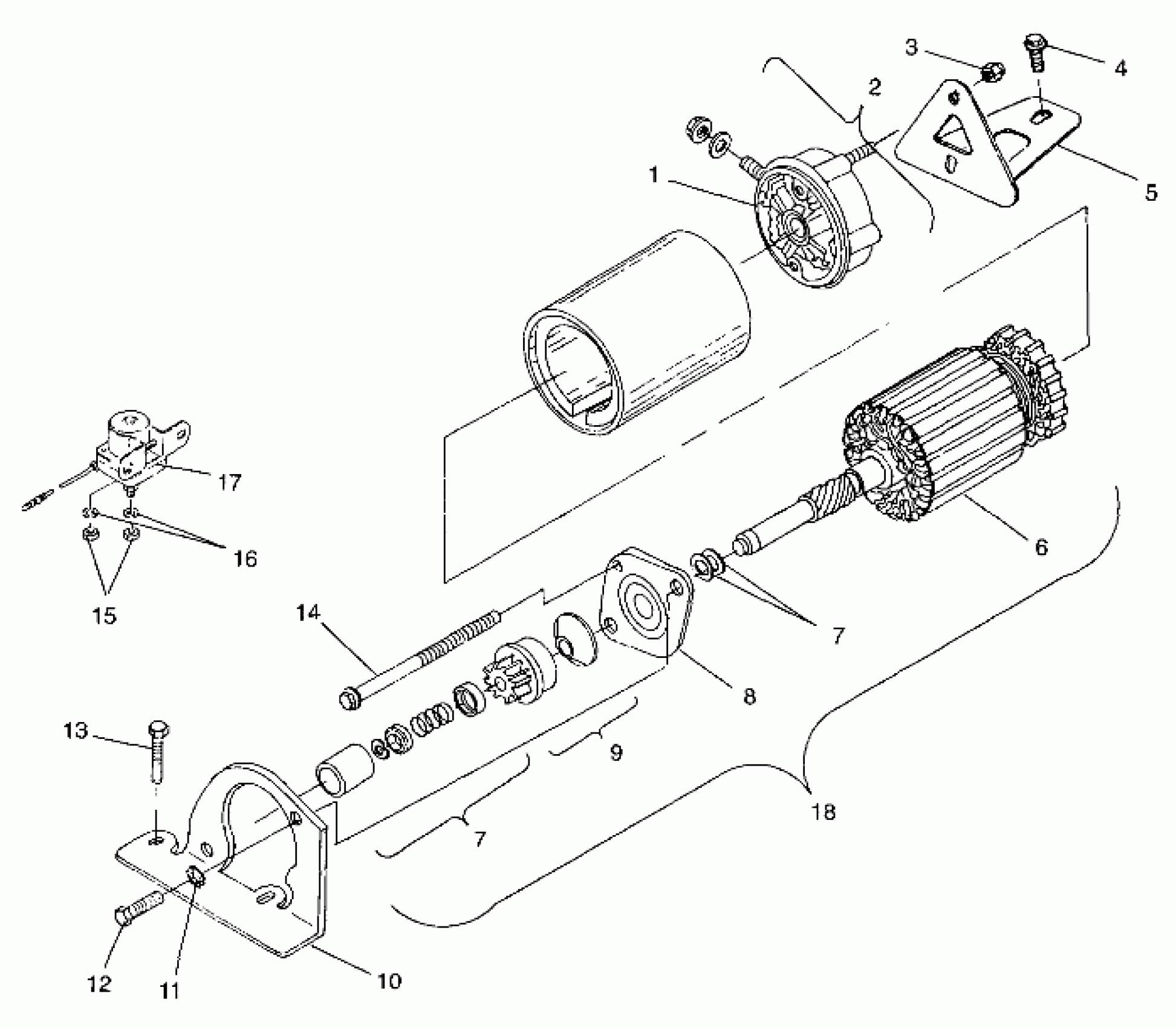

Polaris XLT TOURING - 099ET6AS STARTING MOTOR - 099ET6AS(A) (4948384838d004) Diagram

#

Description
Price

1

KIT,BRUSH&SPRING

2200759

$59.99

1

ASM., BRUSH

-------

Unavailable

1

BUSHING, INSULATION

-------

Unavailable

1

WASHER, INSULATION

-------

Unavailable

1

ASM., BRUSH & SCREW

-------

Unavailable

1

Nut

-------

Unavailable

2

KIT,COMMUTATOR CAP ASM. (Incl.1)

2200758

$82.39

3

NUT(10)

7542153

$1.59

4

SCREW(10)

7516815

$6.39

5

BRKT,R.STARTER

5241786

Unavailable

6

KIT,ARMATURE ASM.

2200756

$169.99

7

KIT,DRIVE HDWE.

2200755

Unavailable

7

SPACER

-------

Unavailable

7

COVER, DUST

-------

Unavailable

7

PINION, STOP

-------

Unavailable

7

WASHER, CURVED SPRING

-------

Unavailable

7

RING, LOCK

-------

Unavailable

7

SPRING, ANTIDRIFT

-------

Unavailable

7

Washer, Thrust

-------

Unavailable

7

KIT,DRIVE HDWE.

2200755

Unavailable

7

SPACER

-------

Unavailable

7

COVER, DUST

-------

Unavailable

7

PINION, STOP

-------

Unavailable

7

WASHER, CURVED SPRING

-------

Unavailable

7

RING, LOCK

-------

Unavailable

7

SPRING, ANTIDRIFT

-------

Unavailable

7

Washer, Thrust

-------

Unavailable

8

KIT,DRIVECAP ASM.

2200757

$59.99

9

KIT,DRIVE ASM.

2200754

Unavailable

9

PINION

-------

Unavailable

9

PLATE, DRIVE

-------

Unavailable

10

BRKT,FR.STARTER,(3/LITE)

5241316

Unavailable

11

WASHER(10)

7552603

$1.49

12

BOLT(10) Substituted by 7512492

7515548

Unavailable

13

SCREW & WASHER ASM.(10)

7516730

$6.39

14

KIT,SCREW

2200753

$29.99

14

BOLT, THRU

-------

Unavailable

15

NUT(10)

3082939

Unavailable

16

WASHER SPRING(10)

3080077

$2.39

17

SWITCH-MAGNETIC Substituted by 3085521 (Incl. 15,16)

3083211

Unavailable

18

MOTOR,STARTER,(DOMESTIC)

4170006

Unavailable
