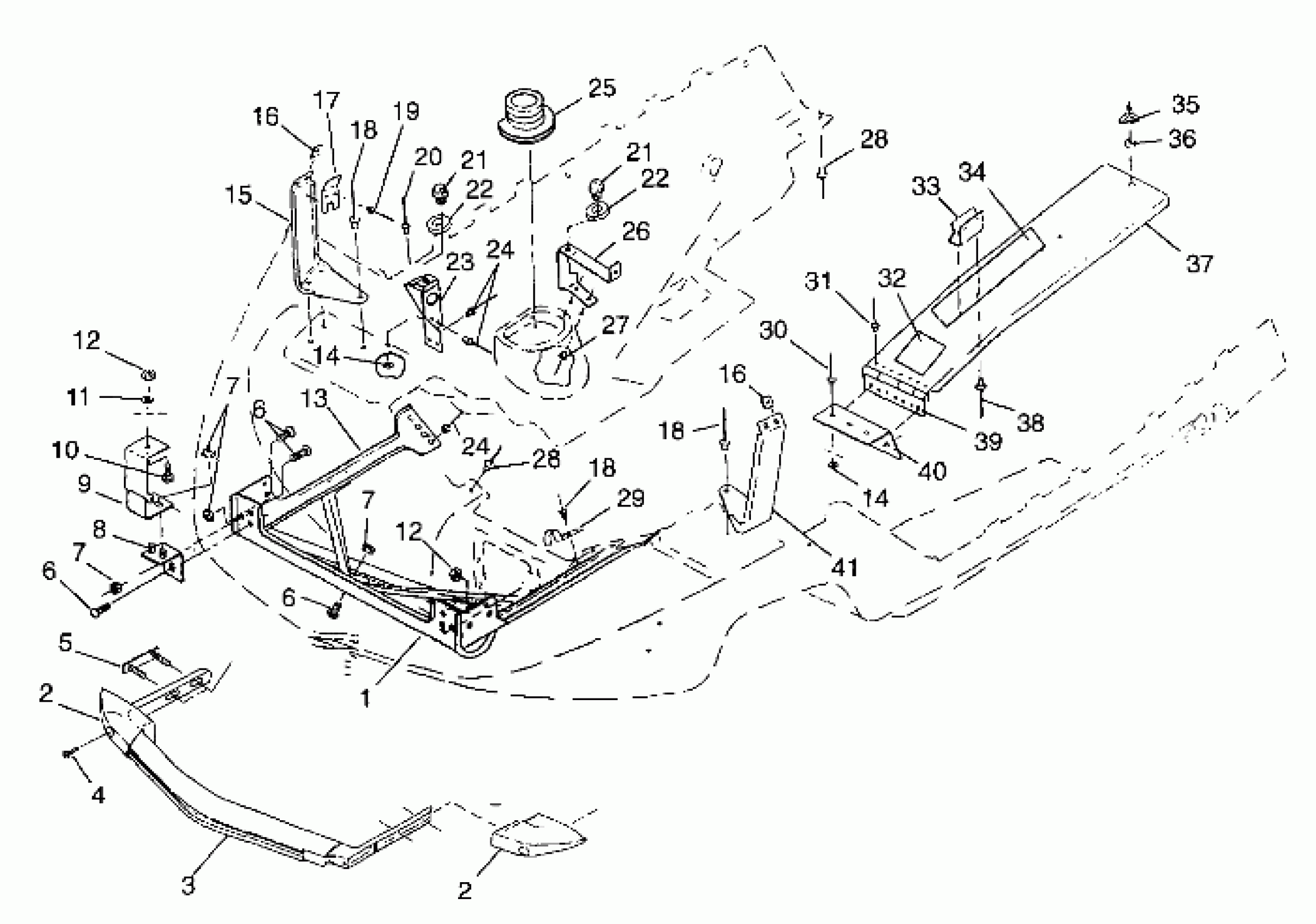

Polaris XLT TOURING - 099ET6AS NOSEPAN - 099ET6ASA (4948384838a011) Diagram

#

Description
Price

1

BRACE,HD.SUPPORT,BLK.

5241003-067

$49.21

2

CAP,BUMPER,BLK.MET.

5432429-177

Unavailable

2

CAP,BUMPER,BLK.MET.

5432429-177

Unavailable

3

BUMPER ASM,FRT,EVOLVED,BLK

2670184-067

Unavailable

4

SCREW,(10)

7512024

$4.79

5

STUDPLATE ASM,BUMP.SUPP.

1012648

Unavailable

6

BOLT,(10)

7515203

$3.99

6

BOLT,(10)

7515203

$3.99

6

BOLT,(10)

7515203

$3.99

7

NUT(10)

7542153

$1.59

7

NUT(10)

7542153

$1.59

7

NUT(10)

7542153

$1.59

8

MOUNT,HINGE,BLK.

1011982-067

$45.99

9

HINGE ASM,HOOD,BLK.

2635013-067

Unavailable

10

SCREW(10)

7512310

$2.39

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

NUT FLEX-LOC(10)

7542303

$6.39

12

NUT FLEX-LOC(10)

7542303

$6.39

13

SUPPORT,LH,BUMPER

1012327-067

$63.49

13

SUPPORT,RH,BUMPER

1012328-067

$133.29

14

BURR,RIVET(50)

7555904

$1.49

14

BURR,RIVET(50)

7555904

$1.49

15

BRKT,RH,SIDEPANEL

5240995

Unavailable

16

NUT, RETAINER(10)

7542146

Unavailable

16

NUT, RETAINER(10)

7542146

Unavailable

17

SHIELD,FASTENER

5240769

$0.90

18

RIVET(50)

7621485

$1.49

18

RIVET(50)

7621485

$1.49

18

RIVET(50)

7621485

$1.49

19

RIVET(50)

7621318

$1.49

20

RIVET(50) Substituted by 7661130

7661643

Unavailable

21

DAMPNER, VIB.

5410467

$8.79

21

DAMPNER, VIB.

5410467

$8.79

22

WASHER, THRUST(10)

7555788

Unavailable

22

WASHER, THRUST(10)

7555788

Unavailable

23

SUPPORT,MUFFLER,BLK. Substituted by 1260724-067

1260657-067

Unavailable

24

RIVET,INTERLOCK,B(50)

7661638

$1.49

24

RIVET,INTERLOCK,B(50)

7661638

$1.49

25

BOOT,EXH.OUTLET

5410919

Unavailable

26

BRKT,R.MUFFLER

1012298-067

Unavailable

27

RIVET(50)

7621472

$1.49

28

RIVET, BLIND(50)

7621467

$1.49

28

RIVET, BLIND(50)

7621467

$1.49

29

CLIP, HALF(10)

7080393

$3.19

30

RIVET(50)

7621433

$1.49

31

RIVET, POP(50)

7621330

$1.49

32

DECAL-SUSP SET-UP,XTRA-12,133

7077761

Unavailable

33

CLIP,BELT RETAINER

5222769

$8.79

34

DECAL,ENG&CLUTCH(CPSC)

7075350

Unavailable

35

KNOB,CLUTCH GUARD(10)

7080523

$4.03

36

BUMPER,CLUTCHGUARD

5431928

$2.39

37

GUARD,CLUTCH

5240999

Unavailable

38

RIVET(50)

7621429

$1.49

39

HINGE

5210728

Unavailable

40

MT,FR.CLUTCHGUARD

5222904

Unavailable

41

BRKT,LH,SIDEPANEL

5240994-067

Unavailable
