NOSEPAN - 099ET6ASA (4948384838a009)

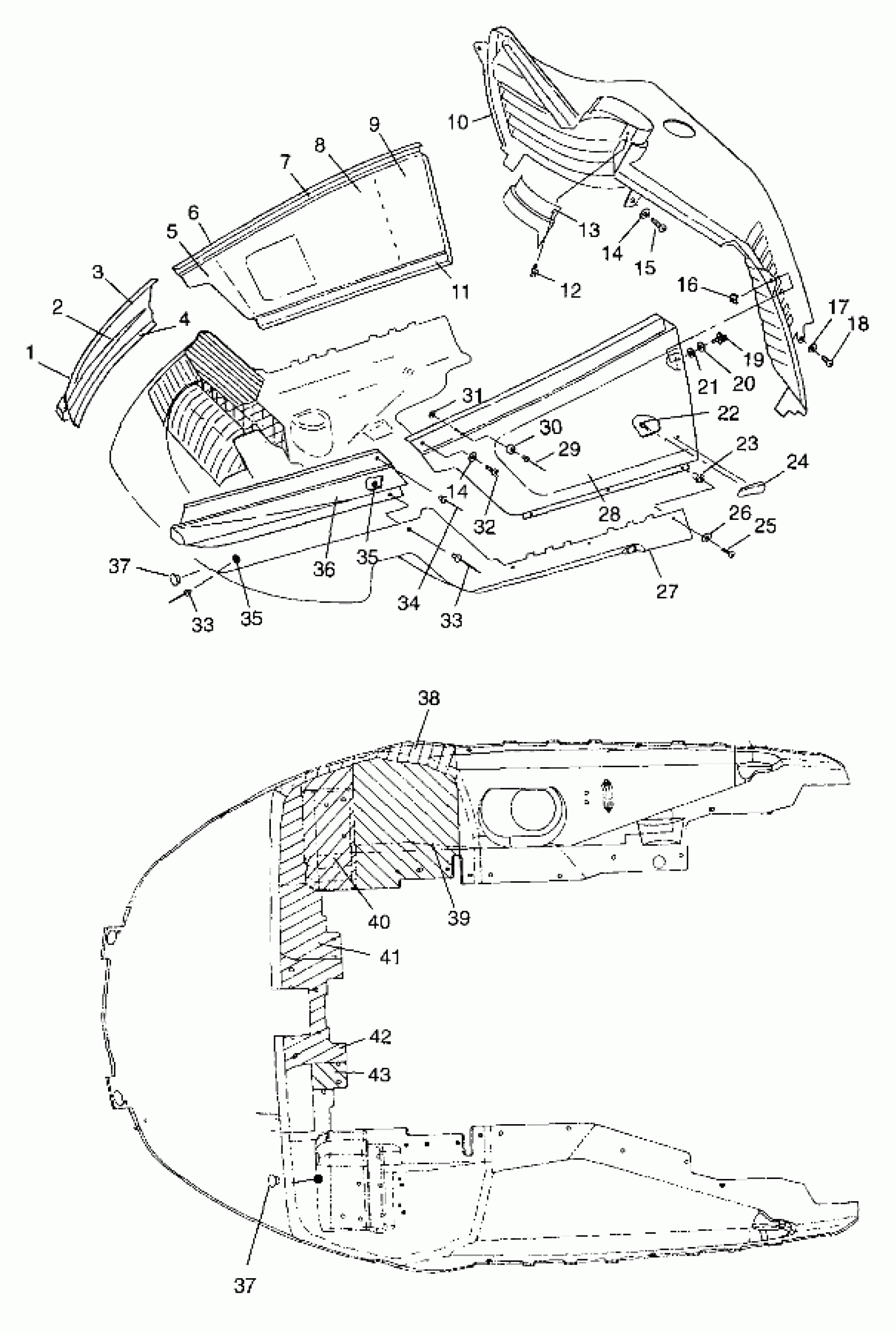

Polaris XLT TOURING - 099ET6AS NOSEPAN - 099ET6ASA (4948384838a009) Diagram
#
1
BUMPER,RH,SIDE/FOIL,BLK.MT. (Incl. 2,3,4)
2610010-177
Unavailable
2
FOIL,SIDE BUMP,MIDDLE
5811086
Unavailable
3
FOIL-SIDE BUMPER-UPPER
5811153
Unavailable
4
FOIL,SIDE BUMP,LOWER
5811085
Unavailable
5
FOIL,FR.SIDEPANEL
5811072
Unavailable
6
FOIL,TOP,OUT.SIDEPANEL
5811075
Unavailable
6
FOIL,TOP,INNER,SIDEPANEL
5811074
Unavailable
7
FOIL,UP.SIDEPANEL
5811073
Unavailable
8
FOAM-FOIL,RH,SIDEPANEL
5811070
Unavailable
9
PANEL,RH,SIDE,FOIL,BLK. (Incl. 5-11)
2610008-177
Unavailable
10
CONSOLE-BASIC,W/POWER PROV
5433177
Unavailable
11
FOIL,LOW.SIDEPANEL
5811071
Unavailable
12
RIVET,PLASTI-LOC.(50)
7621509
$1.49
13
COVER,CONSOLE
5431535
$54.35
14
WASHER(10)
7558301
$1.49
14
WASHER(10)
7558301
$1.49
15
SCREW(10)
7512252
Unavailable
16
NUT,RETAINER(10)
7542138
Unavailable
17
WASHER(10)
7555792
$4.79
18
SCREW(10)
7512069
Unavailable
19
RETAINER,HOODLATCH
5431502
$12.94
20
WASHER-.28X.62-.14(RBR-BK)-Z
7555748
$4.79
21
WASHER,RUBBER(10)
7555884
$5.70
22
SCREW(10)
7512068
$2.39
23
NUT-WELL(10)
7541923
$5.59
24
BUMPER,SIDE PANEL
5432456
Unavailable
25
SCREW,(10)
7517230
$1.49
26
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
27
NOSEPAN,W/BATT,EV,XLT,BLK
5432402
Unavailable
28
PANEL, SIDE, LH, BLACK METALLIC
5431742-177
Unavailable
28
PANEL,LH,SIDE,BLK.MET.
5431742-177
Unavailable
28
FOAM, SIDE PANEL, LH
5811076
Unavailable
28
FOAM,LH,SIDEPANEL
5811076
Unavailable
29
RIVET(50)
7621315
$3.99
30
BUMPER,RUBBER STOP Substituted by 5411440
5410843
Unavailable
31
RIVET BURR(50)
7555756
$2.99
32
SCREW(10)
7515148
$4.79
33
RIVET, BLIND(50)
7621467
$1.49
33
RIVET, BLIND(50)
7621467
$1.49
34
RIVET(50)
7621472
$1.49
35
BURR,RIVET(50)
7555904
$1.49
35
BURR,RIVET(50)
7555904
$1.49
36
BUMPERSIDE,LH,BLK.
5431492-177
Unavailable
37
PLUG,NOSEPAN HOLE
5410820
$15.99
37
PLUG,NOSEPAN HOLE
5410820
$15.99
38
FOIL,RH,PANSIDE,#16
5811195
Unavailable
39
FOIL,RH,SHOCK TOWER,LOW.
5811194
Unavailable
40
FOIL,RH,SHOCKTOWER,TOP,#14
5811193
Unavailable
41
FOIL,RH,SHOCKTOWER,#13
5811192
Unavailable
42
FOIL-CENTER, #11
5811187
Unavailable
43
FOIL,LH,SHOCKTOWER,#12
5811188
Unavailable
