FRONT SUSPENSION and SKI - 099ET6AS(A) (4948384838b007)

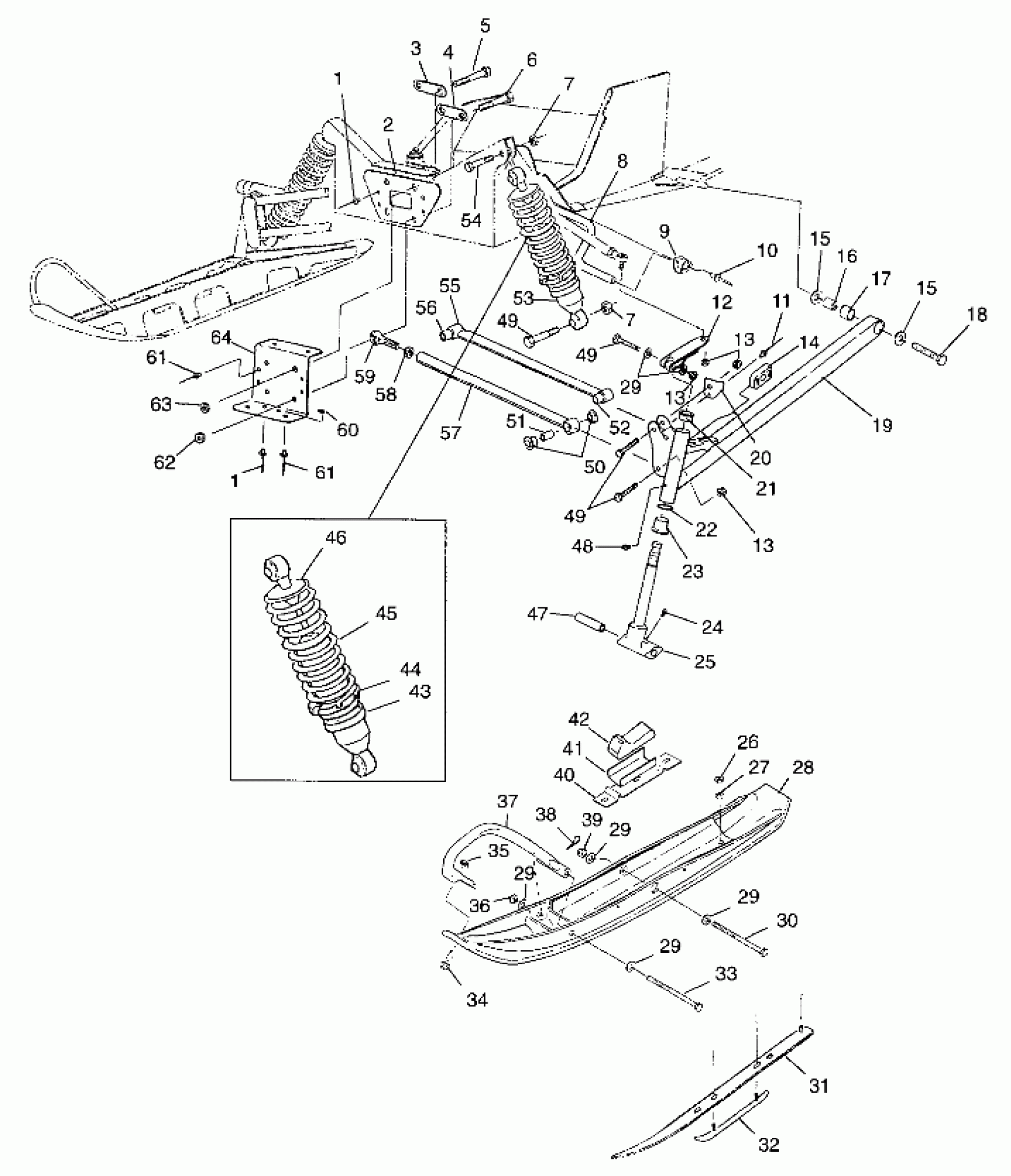

Polaris XLT TOURING - 099ET6AS FRONT SUSPENSION and SKI - 099ET6AS(A) (4948384838b007) Diagram
#
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
2
BRACE,BLKHD/STRG,BLK.
5211589-067
Unavailable
3
STRAP,SPACER TOP
5211344
$7.27
4
STRAP,SPACER BOTTOM
5211345
$12.99
5
BOLT(10)
7512582
$8.79
6
BOLT(10)
7512684
Unavailable
7
NUT-LOCK(10)
7542439
$1.49
7
NUT-LOCK(10)
7542439
$1.49
8
BAR,SWAY,5/8(X-12)BLK
5224748-067
Unavailable
9
BUSHING,SWAY BAR
5432038
$19.99
10
RIVET,(50)
7621477
$1.19
11
RIVET(50) Substituted by 7661130
7661643
Unavailable
12
ARM,STRG,BLK
5241560-067
Unavailable
13
NUT LOCK(10)
7542403
$3.99
13
NUT LOCK(10)
7542403
$3.99
13
NUT LOCK(10)
7542403
$3.99
14
SLIDE,SWAYBAR,5/8
5432561
$24.27
15
WASHER(10)
7555721
$1.49
15
WASHER(10)
7555721
$1.49
16
TUBE, BUSHING
5010310
$9.70
17
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
18
BOLT(10)
7512557
$7.60
19
ARM ASM,TRLG,LH Substituted by 1822506-067 (Incl. 16,17)
1822506
$344.99
19
ARM ASM,TRLG,RH Substituted by 1822507-067 (Incl. 16,17)
1822507
Unavailable
20
STOP,LH,STRG,BLK.
5241569-067
$7.27
20
STOP,RH,STRG,BLK.
5241570-067
$7.27
21
BUSHING-FLANGE
3573909
$2.39
22
WASHER SPECIAL(10)
7556509
$1.59
23
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
24
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
25
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
26
NUT-5/16-18 NYLOK-Y
7542324
$1.49
27
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
28
COMP.SKIBLANK,W/RK SDL,BLK
1820610-070
Unavailable
29
WSHR-.813X.406X.105-Y
7555832
$2.39
29
WSHR-.813X.406X.105-Y
7555832
$2.39
29
WSHR-.813X.406X.105-Y
7555832
$2.39
29
WSHR-.813X.406X.105-Y
7555832
$2.39
29
WSHR-.813X.406X.105-Y
7555832
$2.39
30
SCREW,(10)
7512596
$19.99
31
PLATE,SKAG,1.375 STUD,BLK
1012748-067
Unavailable
32
KIT,SKAG,EZ,3",COMP.SKI (Pair)
2872018
Unavailable
33
BOLT(10)
7515514
$7.19
34
BOLT(10)
7515307
$3.99
35
NUT LOCK(10)
7542321
$1.49
36
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
37
TOE,PLASTIC SKI Substituted by 5432209-070
5432209
$40.46
38
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
39
NUT-3/8-24 HX CA GR5-Y
7542438
$1.59
40
SUPPORT,SKI,RUBBER,BLK
5241912-067
Unavailable
41
RETAINER-SKI RUBBER Substituted by 5243824
5243127
$27.78
42
STOP,RUBBER
5411094
Unavailable
43
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
44
RING,SPRING PRELOAD ADJ.
5431734
$52.60
45
SPRING,COMP,IFS
7041550-067
Unavailable
46
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
47
BUSHING,PIVOT,(10)
5010158
$19.99
48
ZERK,FITTING,THREADED(10)
7080433
$1.49
49
BOLT Substituted by 7515491
7515433
$1.59
49
BOLT Substituted by 7515491
7515433
$1.59
49
BOLT Substituted by 7515491
7515433
$1.59
50
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
51
BUSHING-RADIUS ROD,(10)
5010127
$7.99
52
BUSHING,RAD.ROD PIVOT,3/8
5411099
$11.99
53
SHOCK,GAS,IFS,SELECT
7041503
Unavailable
54
BOLT(10)
7515415
$1.49
55
ROD,RAD,UPPER,FIXED (Incl. 52,56)
1822510
$38.89
56
BUSHING,PIVOT,7/16
5411095
$15.99
57
ROD,RAD,LOWER,BLK.
1822383-067
Unavailable
58
NUT-JAM(10)
7542711
$2.39
59
ROD END Substituted by 7061027
7060162
$48.56
60
BURR,RIVET(50)
7555904
$1.49
61
RIVET, BLIND(50)
7621467
$1.49
61
RIVET, BLIND(50)
7621467
$1.49
62
NUT FLEX,(10)
7542703
Unavailable
63
NUT, LOCK,(10)
7542503
$10.39
64
BRKT,PANSUPPORT,BLK.
5222866-067
Unavailable
