Description

Price

-

KIT,CLUTCH UPDATE (Incl. 6-8,10,11,14)

2200386

Unavailable

1

BOLT,(10)

7512265

$3.99

2

LOCK WASHER(10)

7552801

$1.59

3

COVER,BEARING,GARMAX

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING,CLUTCH,SIL/GOLD

7041286

$56.65

6

PIN-ROLLER

5020422

$2.39

7

Kit - Shim, Drive Clutch

2200387

$24.27

8

BUTTON, GUIDE,(10)

5430445

$6.39

8

BUTTON, GUIDE,(10)

5430445

$6.39

9

NUT-JAM

5020425

$23.99

10

WASHER,MULTILUBE

5430945

$1.59

11

ASM-ROLLER AND BUSHING

1321457

$40.46

12

SPACER(10) (.050,)

5210754

Unavailable

12

SPACER(10) (.050")

5210754

Unavailable

12

SPACER(10) (.025)

5242981

Unavailable

12

SPACER(10) (.025")

5242981

Unavailable

12

SPACER(10) (.020,)

5210752

Unavailable

12

SPACER(10) (.020")

5210752

Unavailable

12

SPACER(10) (.032,)

5210753

Unavailable

12

SPACER(10) (.032")

5210753

Unavailable

13

WT/BUSH.ASM,10M-B(3)

1321529

$44.99

14

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

15

SLEEVE, BEARING

3576502

$23.99

16

INSERT-MOVEABLE

5010188

$7.99

17

GEAR-RING

5131062

Unavailable

18

BOLT,RING GEAR(10)

7515351

$3.99

19

NUT FLEX LOC(10)

7541906

$3.19

20

CLUTCH,ES,BASIC#85(DRIVE) (Less 5,13)

1321734

Unavailable

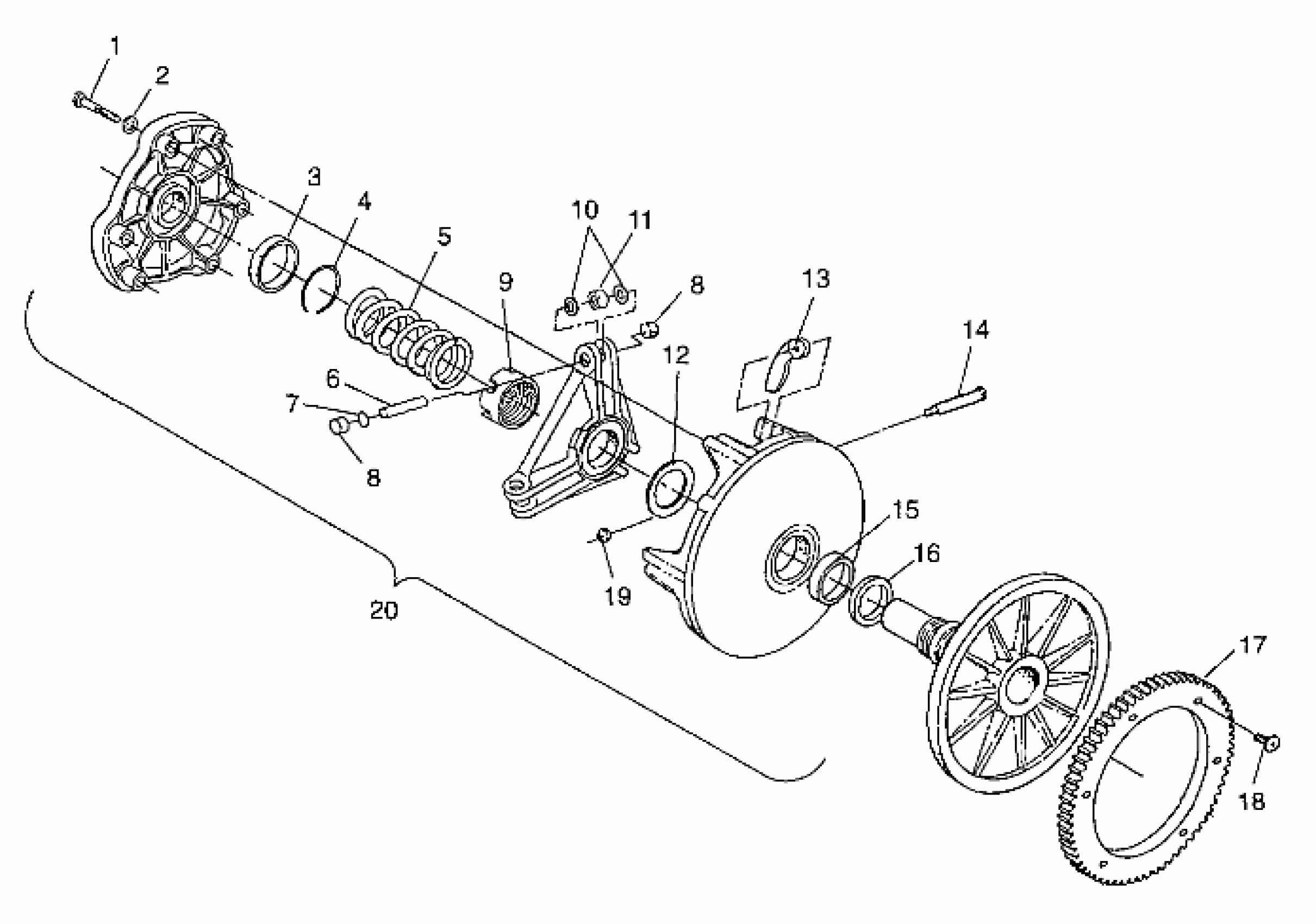

Polaris XLT TOURING - 099ET6AS DRIVE CLUTCH - 099ET6ASA (4948384838c003) Diagram

KIT,CLUTCH UPDATE (Incl. 6-8,10,11,14)

BOLT,(10)

LOCK WASHER(10)

COVER,BEARING,GARMAX

RING-RETAINING,COVER

SPRING,CLUTCH,SIL/GOLD

PIN-ROLLER

Kit - Shim, Drive Clutch

BUTTON, GUIDE,(10)

BUTTON, GUIDE,(10)

NUT-JAM

WASHER,MULTILUBE

ASM-ROLLER AND BUSHING

SPACER(10) (.050,)

SPACER(10) (.050")

SPACER(10) (.025)

SPACER(10) (.025")

SPACER(10) (.020,)

SPACER(10) (.020")

SPACER(10) (.032,)

SPACER(10) (.032")

WT/BUSH.ASM,10M-B(3)

PIN-WEIGHT,HARDENED,1/4X2.00

SLEEVE, BEARING

INSERT-MOVEABLE

GEAR-RING

BOLT,RING GEAR(10)

NUT FLEX LOC(10)

CLUTCH,ES,BASIC#85(DRIVE) (Less 5,13)
