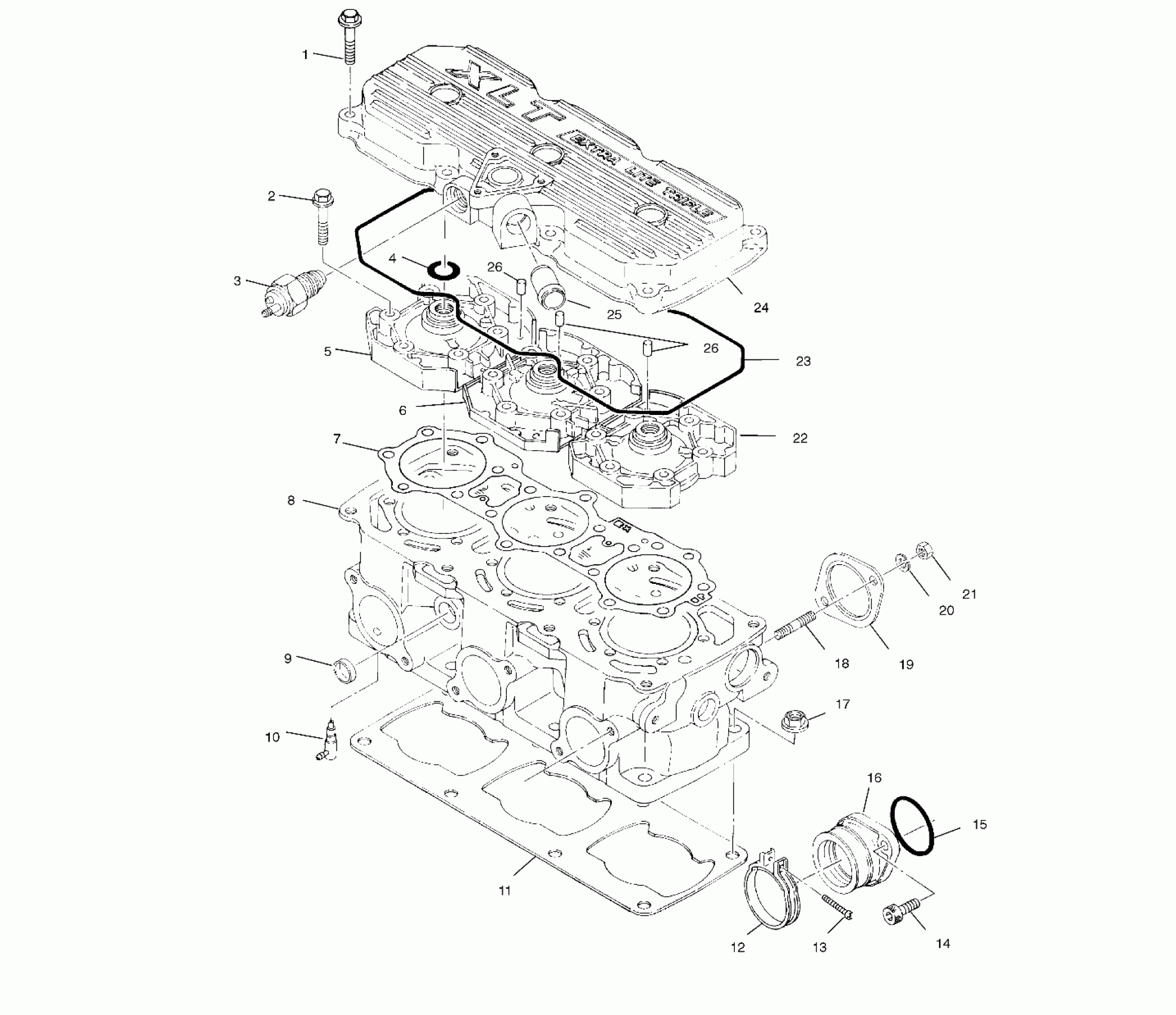

Polaris XLT TOURING - 099ET6AS CYLINDER - 099ET6ASA (4948384838c010) Diagram
#
1
Bolt, Flange
3084437
Unavailable
2
BOLT, FLANGE ,(10)
3084435
Unavailable
3
SWITCH,THERMAL,IOS (1055 C)
3084284
Unavailable
3
SWITCH,THERMAL,IOS (105 Degree C)
3084284
Unavailable
4
O RING
3085192
Unavailable
5
HEAD,CYL.#3,(PTO) (PTO)
3085425
Unavailable
6
HEAD,CYL.#2,(CTR) (Center)
3085424
Unavailable
7
CYLINDER (Incl. 8,17)
3085017
$834.99
7
GASKET,HEAD
3085613
Unavailable
8
PLUG
3084428
$3.51
8
CYLINDER (Incl. 9,18)
3085017
$834.99
9
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
9
PLUG
3084428
$3.51
10
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
10
GASKET, CYLINDER
3084593
Unavailable
11
BAND-CARB MTG. (Incl. 12)
3082257
Unavailable
11
GASKET, CYLINDER
3084593
Unavailable
12
SCREW,(10)
3081497
$2.39
12
BAND-CARB MTG. (Incl. 13)
3082257
Unavailable
13
Bolt, Allen
3081330
$3.99
13
SCREW,(10)
3081497
$2.39
14
Bolt, Allen
3081330
$3.99
14
O-RING
3085619
$20.22
15
O-RING
3085619
$20.22
15
ADAPTER (Incl. 14)
3084438
Unavailable
16
NUT-FLANGE(10)
3082911
$1.99
16
ADAPTER (Incl. 15)
3084438
Unavailable
17
STUD,(10)
3085326
Unavailable
17
NUT-FLANGE(10)
3082911
$1.99
18
STUD,(10)
3085326
Unavailable
18
GASKET,EXHAUST,NA(10) Substituted by 3086757
3084439
Unavailable
19
WASHER LOCK ,(10)
3080530
$3.19
19
GASKET,EXHAUST,NA(10) Substituted by 3086757
3084439
Unavailable
20
WASHER LOCK ,(10)
3080530
$3.19
20
NUT(10)
3080285
Unavailable
21
NUT(10)
3080285
Unavailable
21
HEAD,CYL,#1,(MAG) (MAG)
3085423
Unavailable
22
O-RING, (HEADCOVER)
3084434
Unavailable
22
HEAD,CYL,#1,(MAG) (MAG)
3085423
Unavailable
23
O-RING, (HEADCOVER)
3084434
Unavailable
23
COVER-HEAD * (Incl. 24)
3085872
$177.13
24
HEAD,CYL.#1,MAG.
3085417
Unavailable
24
COVER-HEAD * (Incl. 25)
3085872
$177.13
25
PIN, DOWEL
3084721
$4.79
25
HEAD,CYL.#1,MAG.
3085417
Unavailable
26
PIN, DOWEL
3084721
$4.79
26
PIN, DOWEL
3084721
$4.79
