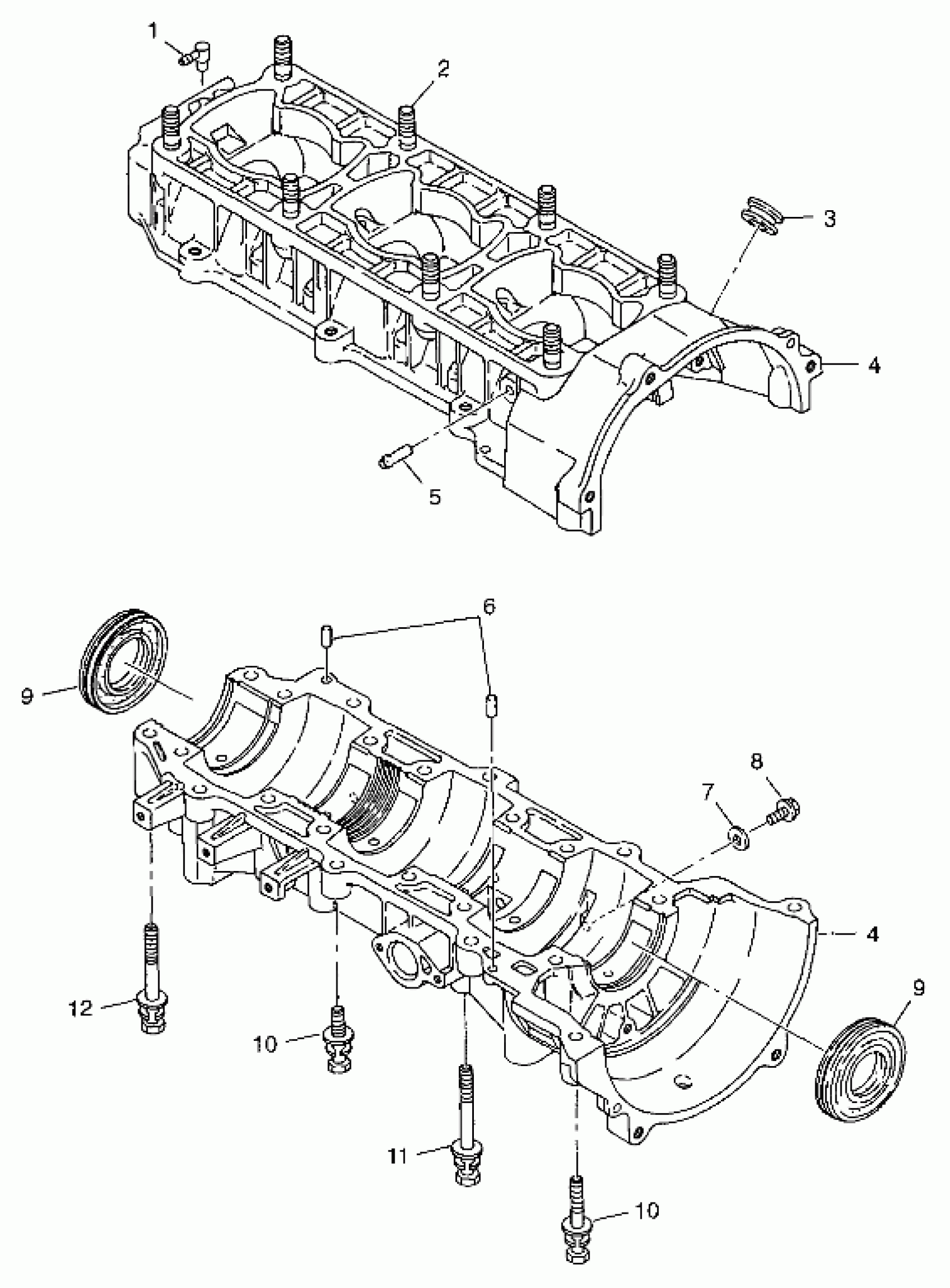

Polaris XLT TOURING - 099ET6AS CRANKCASE - 099ET6ASA (4948384838c009) Diagram

#

Description

Price

1

NIPPLE,(ELBOW)

3085462

Unavailable

2

Stud

3084119

$9.59

3

GROMMET

3082875

$7.99

4

CRANKCASE ASM. (Incl. 1,2,5,6,10-12)

3085586

Unavailable

4

CRANKCASE ASM. (Incl. 1,2,5,6,10-12)

3085586

Unavailable

5

PIPE, PULSE

3083798

$9.52

6

PIN, DOWEL Substituted by 3086838

3080103

$7.14

7

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

8

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

9

SEAL, OIL(10)

3083045

$36.41

9

SEAL, OIL(10)

3083045

$36.41

10

BOLT AND WASHER ASSY.

3082097

Unavailable

10

BOLT AND WASHER ASSY.

3082097

Unavailable

11

BOLT&WASHER ASM.

3084670

Unavailable

12

BOLT&WASHER ASM.

3084671

Unavailable
