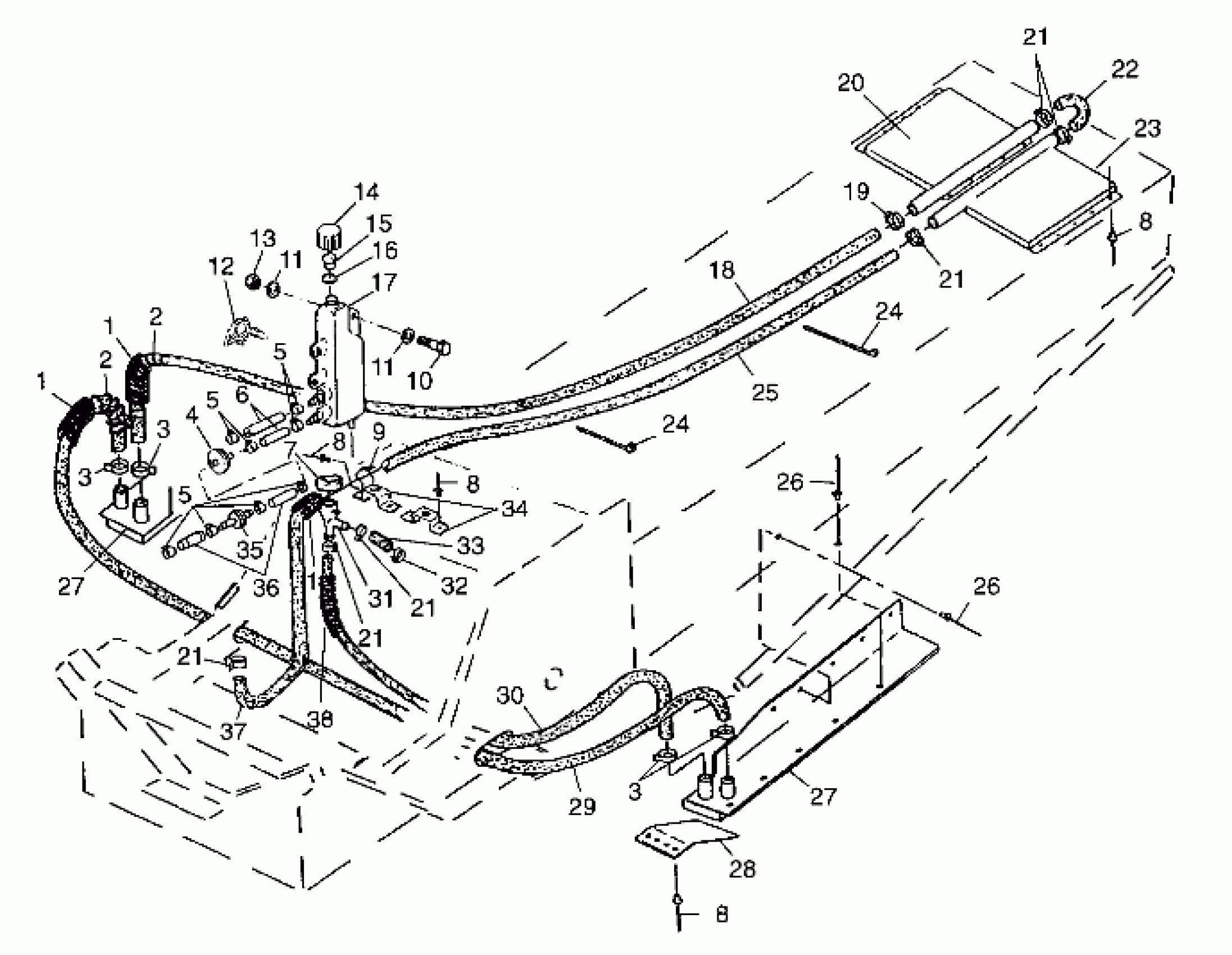

Polaris XLT TOURING - 099ET6AS COOLING SYSTEM - 099ET6AS(A) (4948384838b009) Diagram

#

Description
Price

1

TUBING,CONVOL,1"X2.5"

5521242

Unavailable

1

TUBING,CONVOL,1"X2.5"

5521242

Unavailable

1

TUBING,CONVOL,1"X2.5"

5521242

Unavailable

2

SPRING,HOSE RETAINER

7041079

$4.95

2

SPRING,HOSE RETAINER

7041079

$4.95

3

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

3

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

3

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

4

FILTER,COOLANT,LGE.

2530024

Unavailable

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

6

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

7

CAP,PRESS.(19-21 LB.)

2511256

Unavailable

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

9

BRKT,COOLER HOSE

5241468

Unavailable

10

BOLT(10)

7512240

$3.99

11

WASHER,WROUGHT(10)

7558302

$1.59

11

WASHER,WROUGHT(10)

7558302

$1.59

12

CLIP, PLASTIC(10)

4020139

$4.79

13

NUT-LOCK(10)

7542122

$1.49

14

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

15

PLUG, OVERFLOW,(10)

5431096

$2.02

16

GASKET-OVERFLOW CAP

5810279

$2.41

17

BOTTLE,O'FLOW,W/FITTING

5431733

$36.41

18

HOSE,R.COOLER OUTLET

5411078

Unavailable

19

CLAMP,HOSE,(10) Substituted by 7080843

7080652

Unavailable

20

EXCHANGER,R.COOLING

2511301

$226.99

21

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

21

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

21

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

21

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

21

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

22

HOSE,COOLING

5410758

Unavailable

23

TAPE,35FT,SEAL,R.COOL.

5811252

Unavailable

24

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

24

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

25

HOSE,R.COOLER INLET,1"

5411079

Unavailable

26

RIVET,INTERLOCK,B(50)

7661638

$1.49

26

RIVET,INTERLOCK,B(50)

7661638

$1.49

27

COOLING WELD,LH SIDE

1240020

$134.92

27

COOLING WELD,RH SIDE

1240021

$167.60

27

COOLING WELD,LH SIDE

1240020

$134.92

27

COOLING WELD,RH SIDE

1240021

$167.60

28

GUARD, COOL.EXT.

5222863

$32.99

29

HOSE,CROSSOVER

5410557

Unavailable

30

HOSE,CROSSOVER,SHORT

5411077

Unavailable

31

FILLER,REMOTE COOLANT Substituted by 5433364

5431931

Unavailable

32

CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842

7080563

Unavailable

33

HOSE,ENG.OUT/FILLER

5411010

$24.27

34

BRKT,OILTANK,COINED

5241334

$9.70

35

VALVE, CHECK

7052038

$10.51

36

TAPE,FOIL,1.50 X 7.50

5810831

Unavailable

37

SPRING,HOSE RETAINER

7042041

Unavailable

38

TUBING,CONVOL,8"X1"

5411396

$9.70
