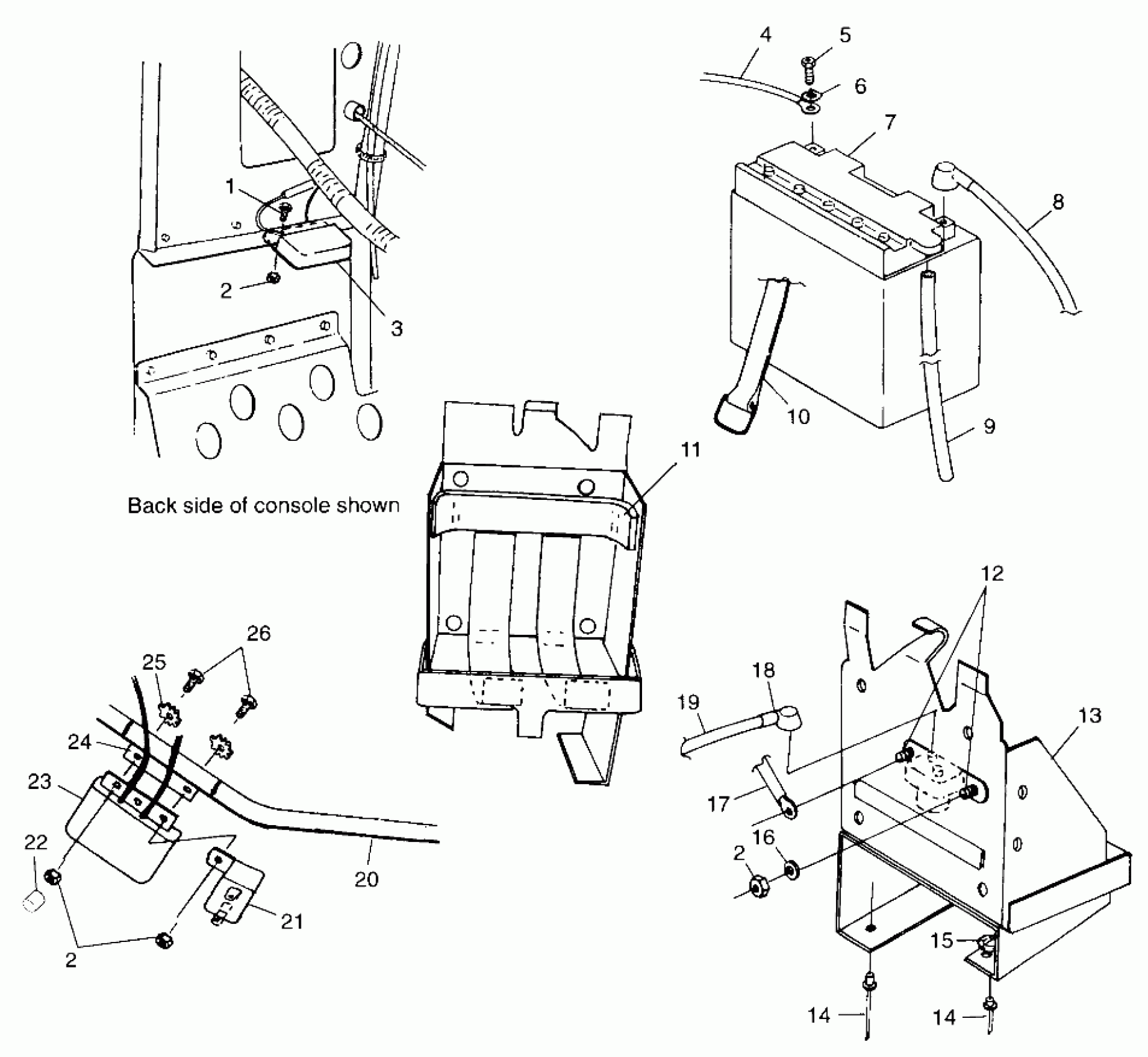

Polaris XLT TOURING - 099ET6AS BATTERY BOX - 099ET6ASA (4948384838c005) Diagram

#

Description
Price

1

SCREW,W/WASHER(10)

7512050

$3.99

2

NUT(10)

7541925

$1.49

2

NUT(10)

7541925

$1.49

2

NUT(10)

7541925

$1.49

3

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

4

CABLE,BATT/ENG,15",BLK

4010113

Unavailable

5

BOLT,BATT,KIT(SHORT)

2200361

$3.99

6

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

7

Battery

4140006

$99.99

8

CABLE,BATT-SOLENOID

4010091

Unavailable

9

TUBE,BATTERY VENT

5432077

Unavailable

10

STRAP ASM,BATT.HOLD.

2450020

$29.03

11

PAD-BATTERY

5810290

$7.27

12

SCREW(10)

7512027

$1.49

13

BATTERY BOX,BLACK Substituted by 2201223

1012727-067

Unavailable

14

RIVET, BLIND(50)

7621467

$1.49

14

RIVET, BLIND(50)

7621467

$1.49

15

BURR,RIVET(50)

7555904

$1.49

16

WASHER, FLAT(10)

7558201

$5.79

17

WIRE,JUMPER,SOL/BATT,8.5"

4010108

Unavailable

18

INSULATOR-CABLE

5410346

$6.39

19

CABLE,SOL/STRT,BLK,16.5"

4010107

Unavailable

20

TRIM,EDGE,6FT,BLACK [No Longer Available]

5521131

Unavailable

21

CIRCUIT BREAKER

2434008

Unavailable

22

RECTIFIER, LR-4

4060104

Unavailable

22

CAP,THREAD PROTECTOR .156X.500

7080832

Unavailable

23

HEAT SINK

5210650

Unavailable

23

RECTIFIER, LR-4

4060104

Unavailable

24

HEAT SINK

5210650

Unavailable

24

WASHER(10)

7571602

$4.79

25

SCREW(10)

7512007

$3.99

25

WASHER(10)

7571602

$4.79

26

SCREW(10)

7512007

$3.99
